DAS

ICC SENSOR

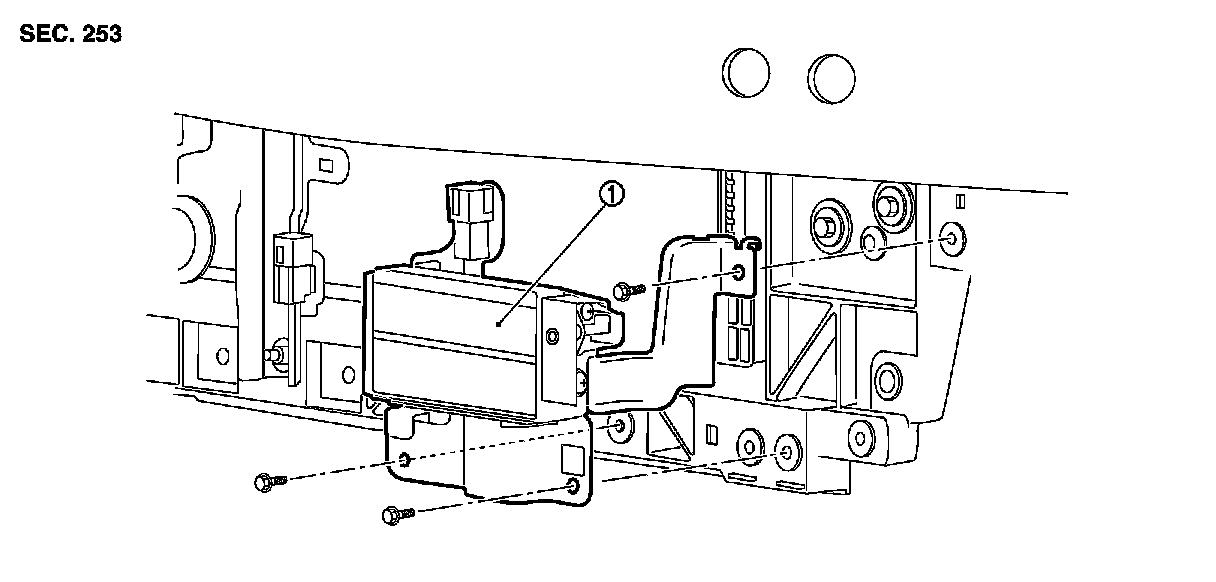

Exploded View

CAUTION:
Always perform the laser beam aiming adjustment and check the operation after the replacement, removal and installation of ICC sensor.
