Pinout Values and Diagnostic Parameters

PRE-CRASH SEAT BELT SYSTEM

Reference Value

VALUES ON THE DIAGNOSIS TOOL

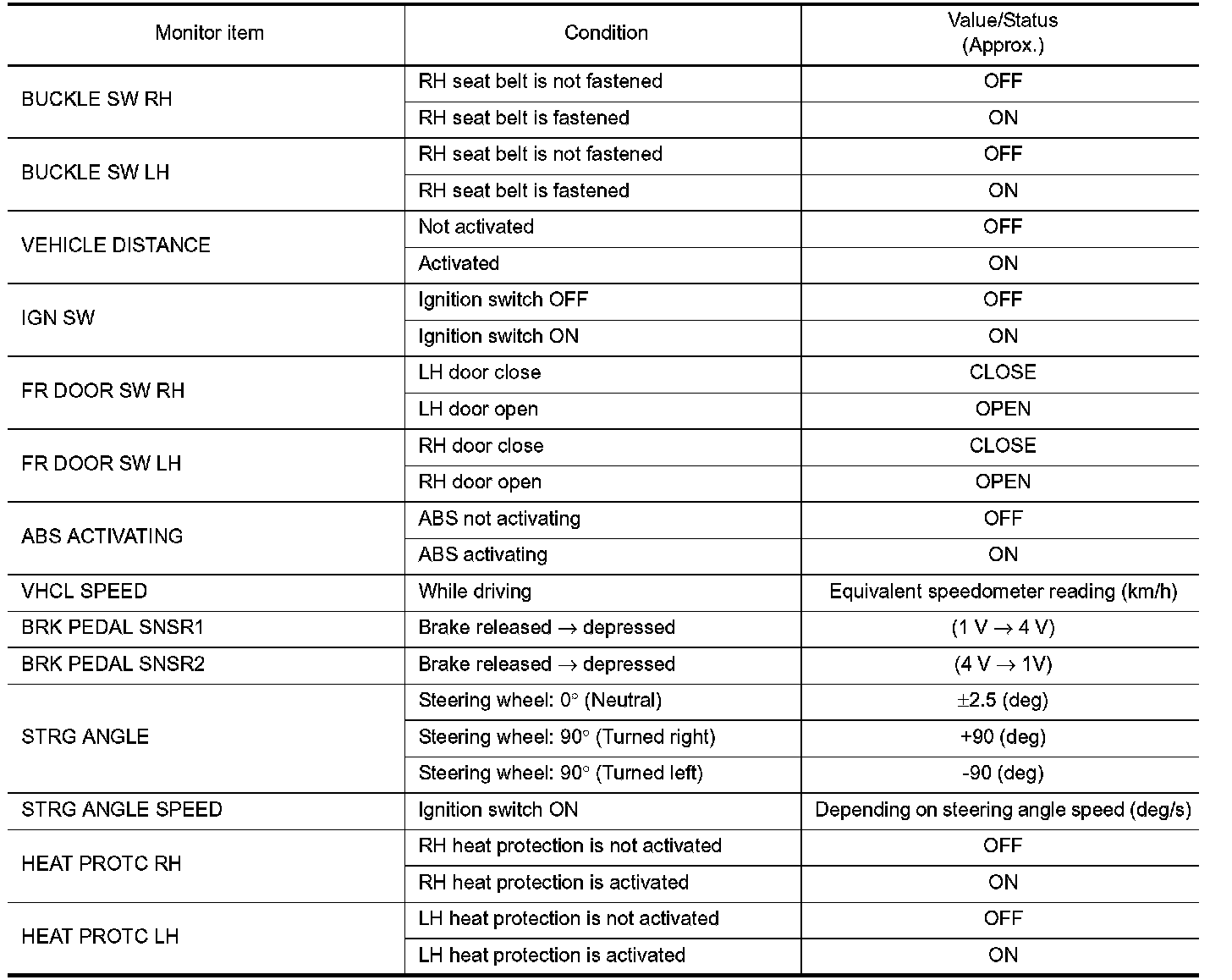

CONSULT-III MONITOR ITEM

TERMINAL LAYOUT

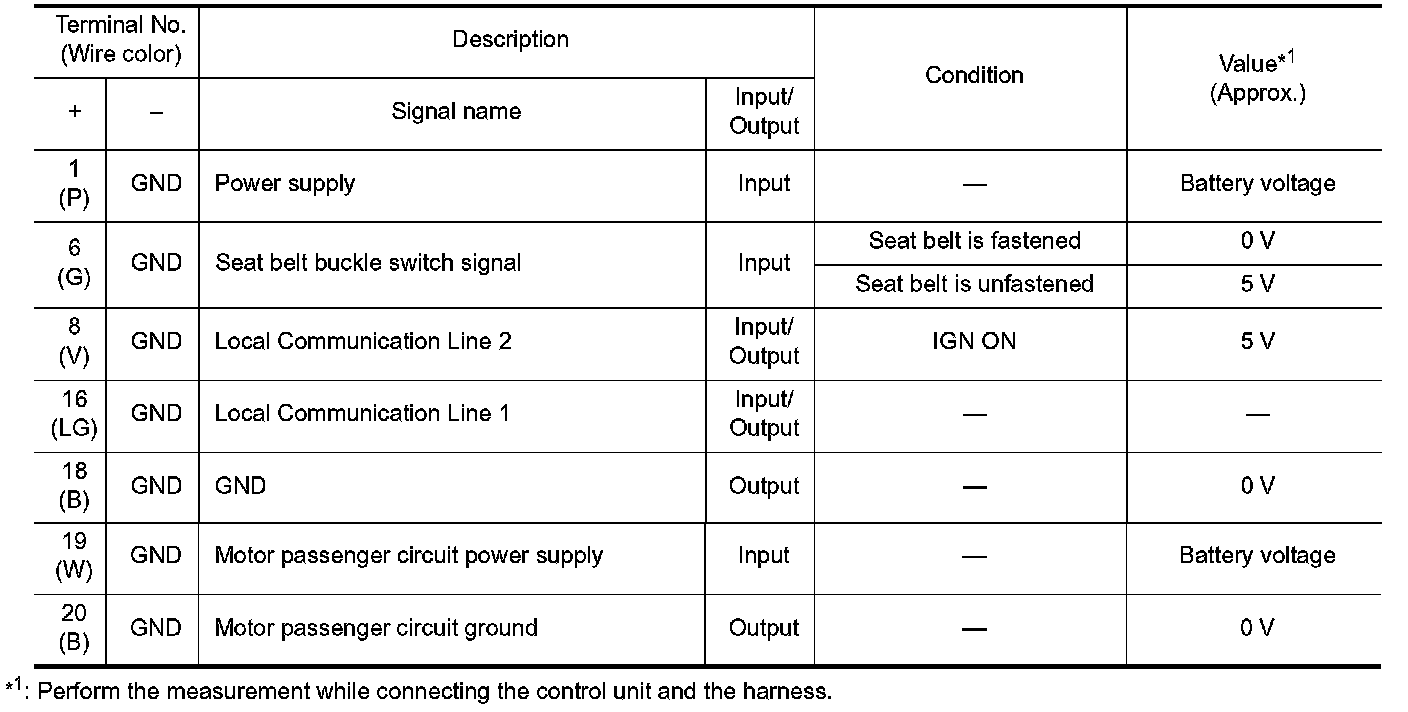

PHYSICAL VALUES (DRIVER SIDE)

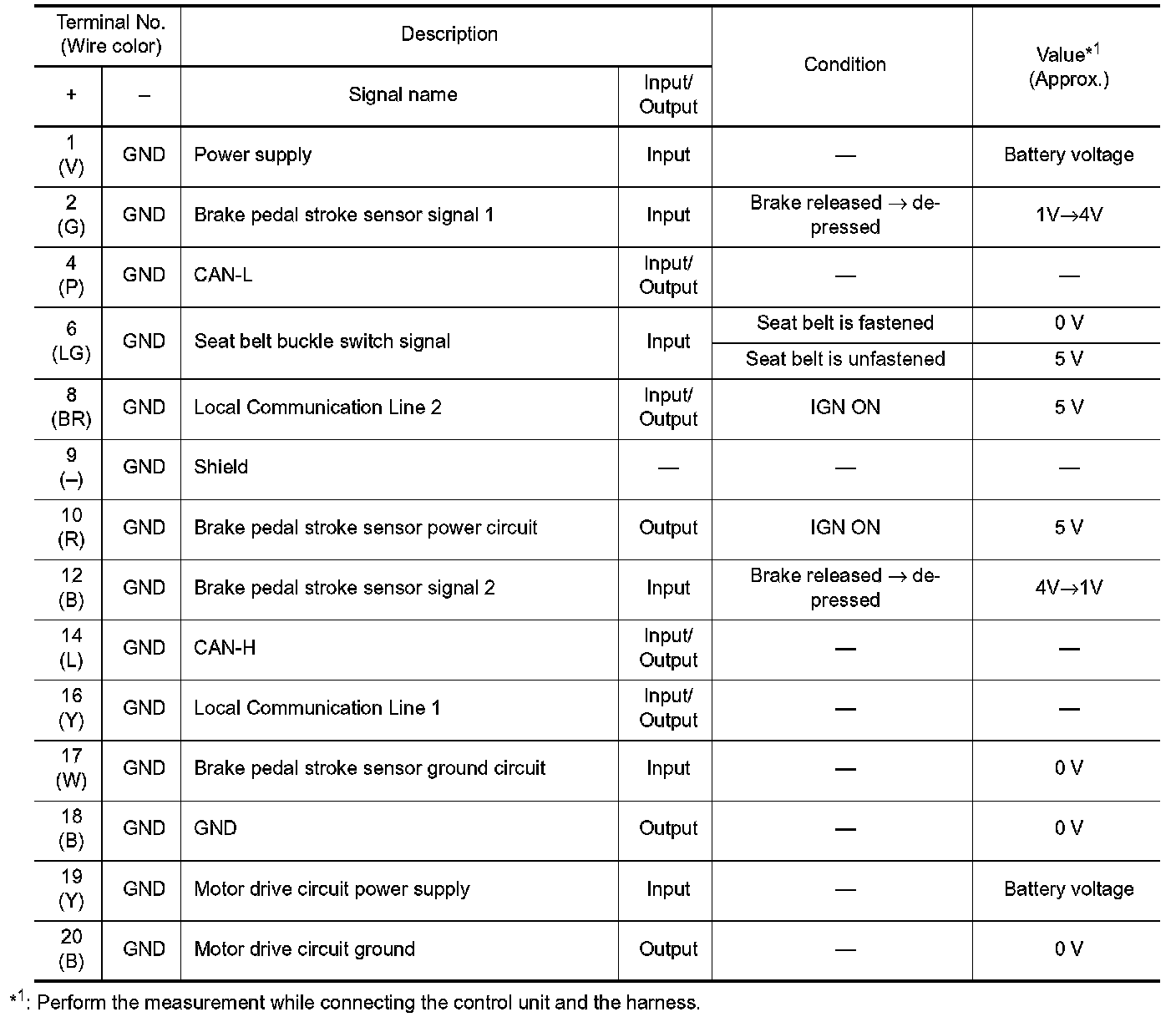

PHYSICAL VALUES (PASSENGER SIDE)
