A/T Shift Lock System
A/T Shift Lock System
COMPONENT PARTS

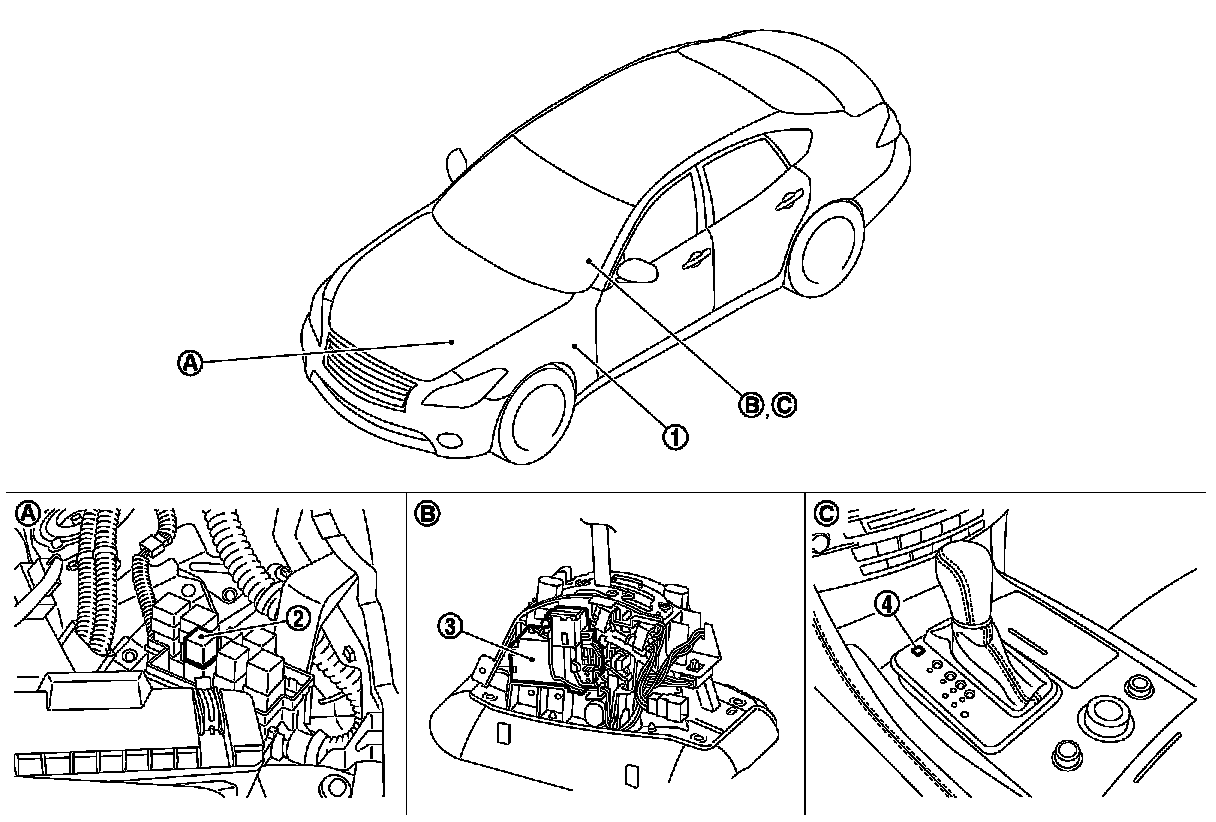

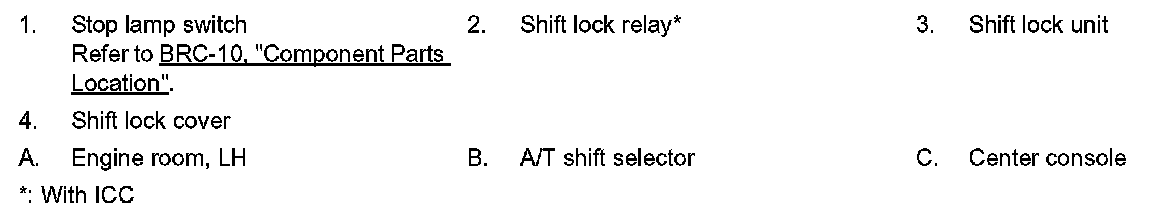

A/T SHIFT LOCK SYSTEM A/T SHIFT LOCK SYSTEM : Component Parts Location
