Home >> Infiniti >> 2011 >> M37x AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Description and Operation >> 7AT RE7R01A >> A/T Control System >> Component Description

Component Description





COMPONENT PARTS

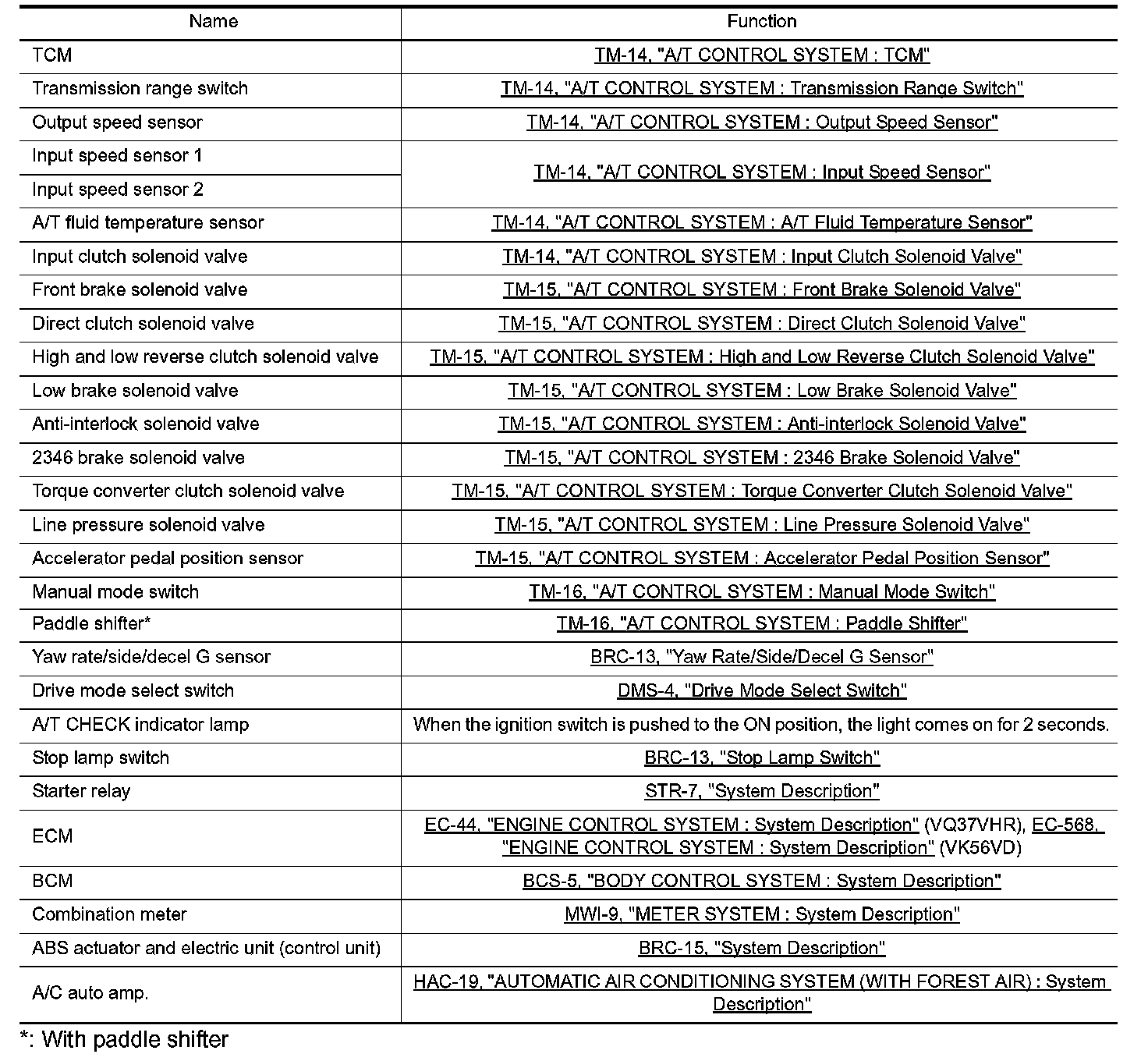

A/T CONTROL SYSTEM : Component Description







*: With paddle shifter
