Exploded View

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY


Exploded View

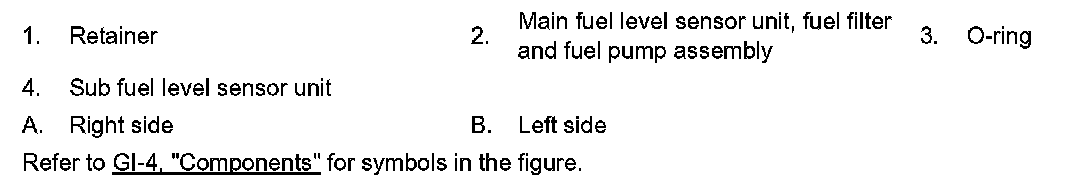

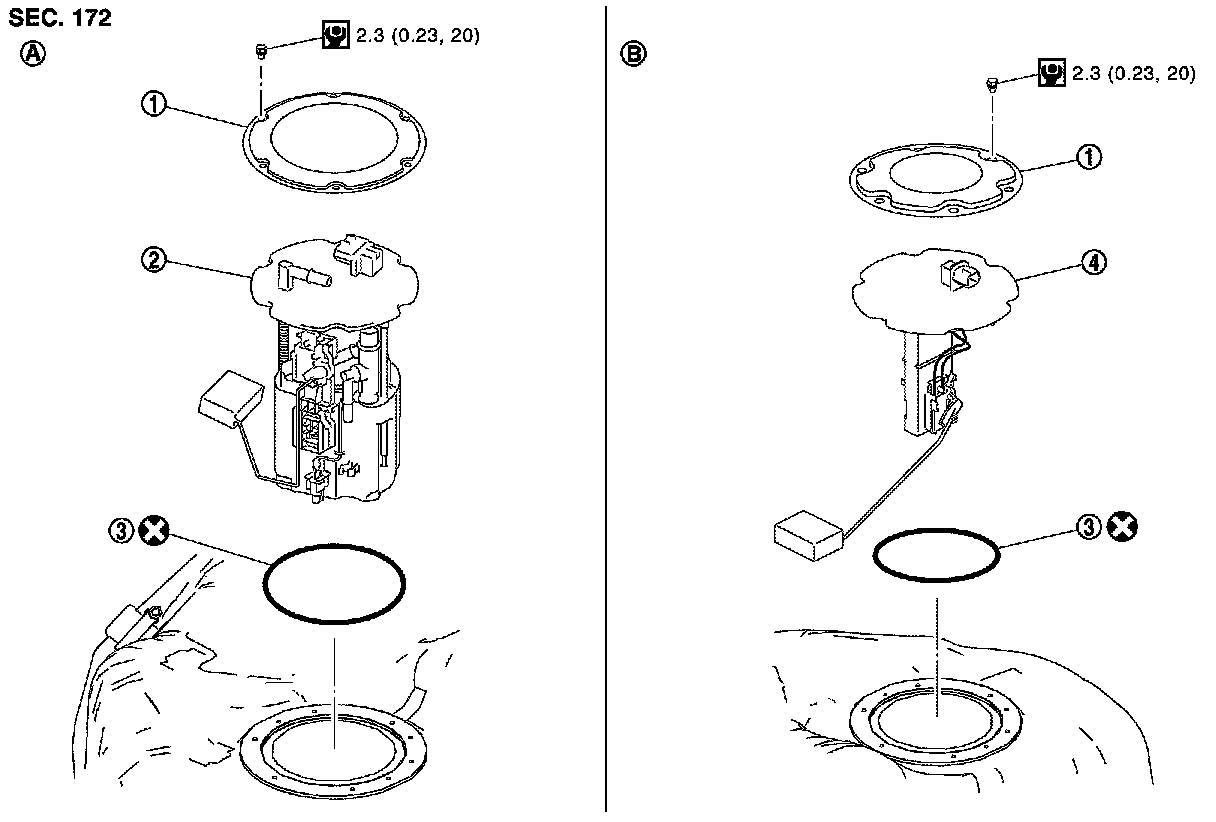

REMOVAL
TYPE A

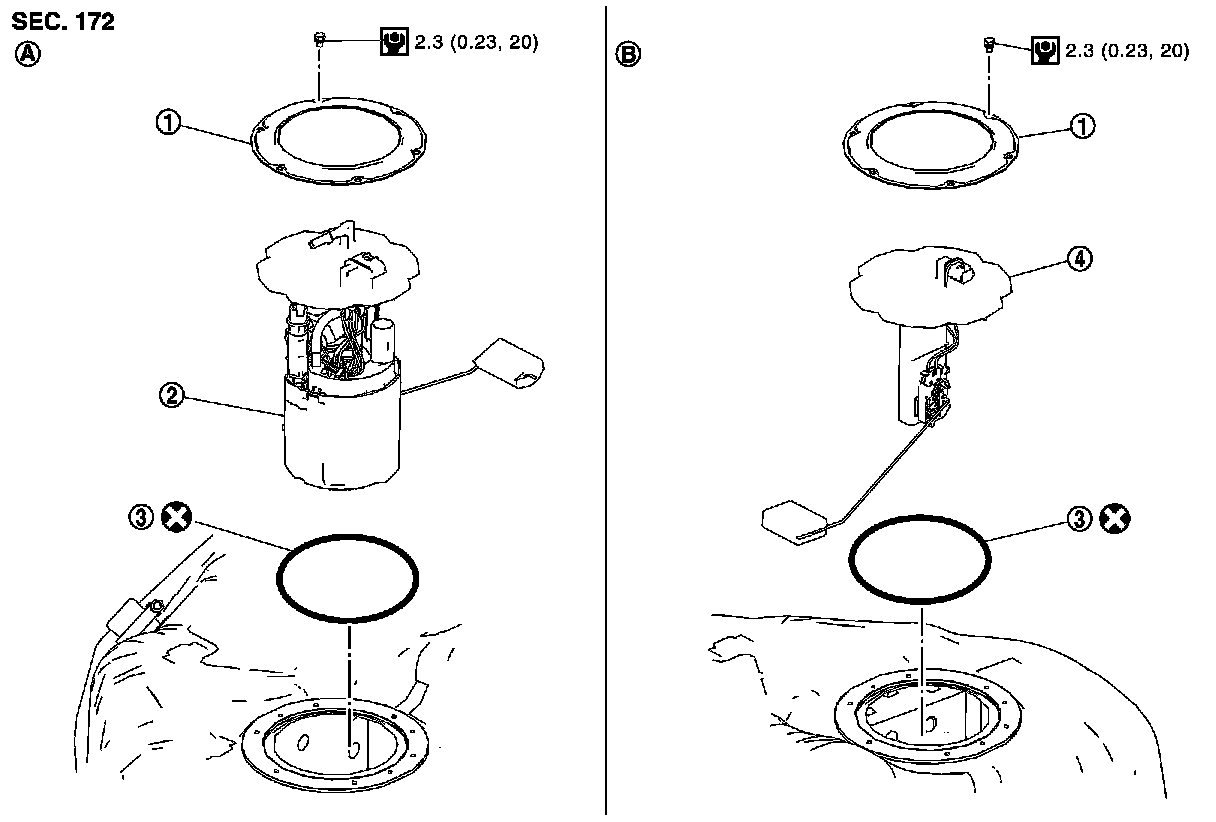

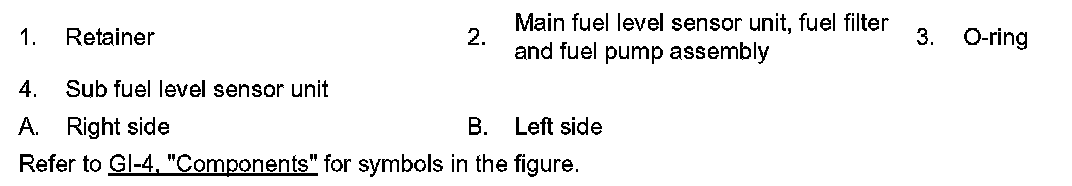

TYPE B

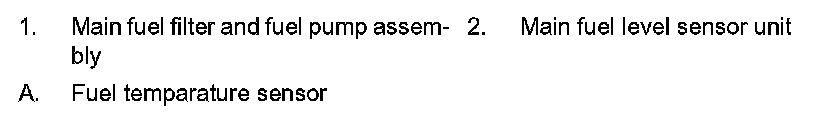

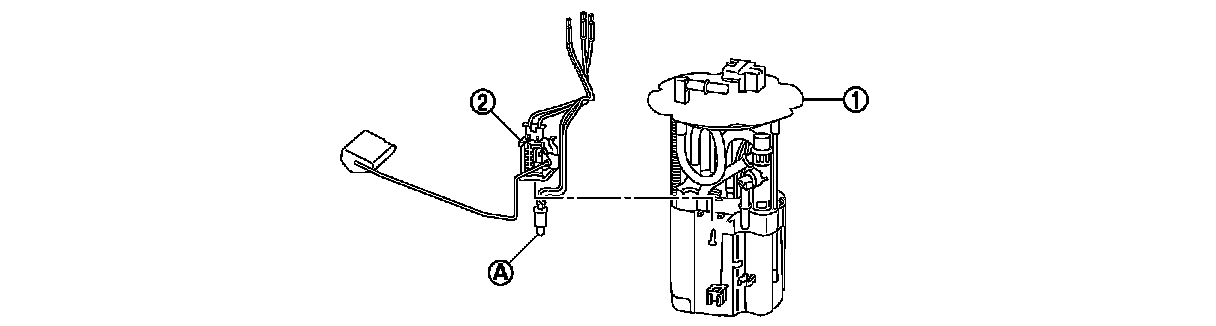

DISASSEMBLY
TYPE A

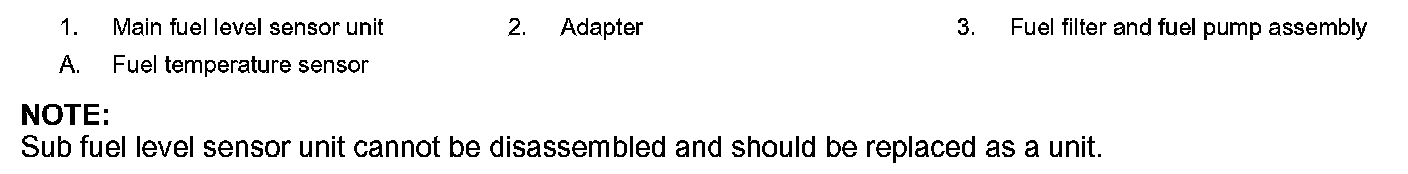

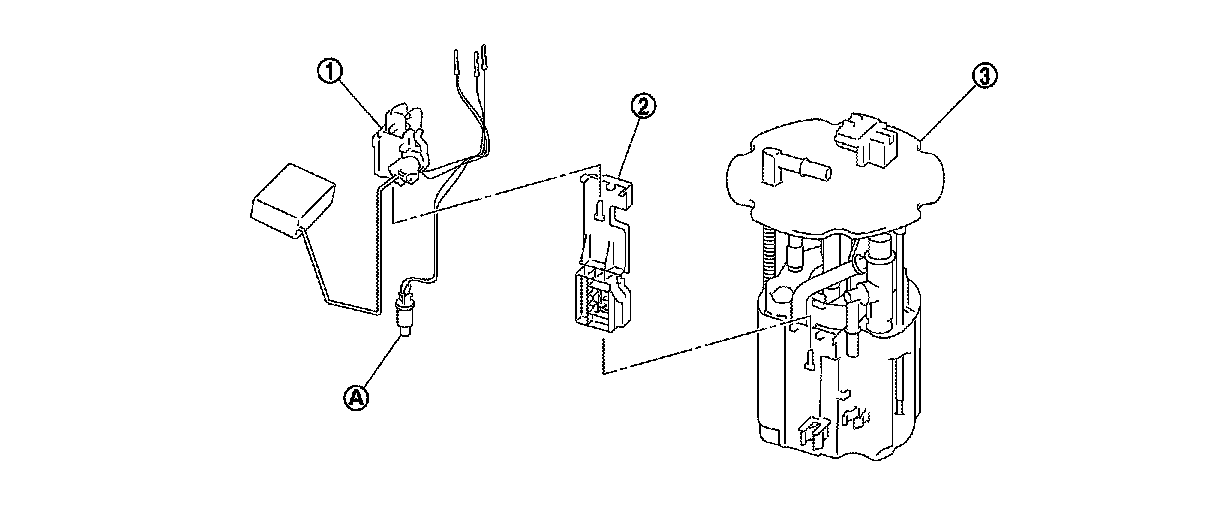

TYPE B











NOTE:
Sub fuel level sensor unit cannot be disassembled and should be replaced as a unit.
