Engine Control Module: Service and Repair

ECM


Removal and Installation


REMOVAL
1. Remove the instrument lower cover. Exploded View.
2. Remove the dash side finisher (LH). Dash Side Finisher.

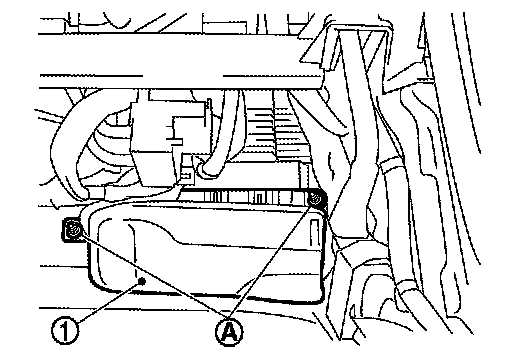

3. Remove the ECM cover bolts (A) and remove ECM cover (1).
4. Disconnect ECM harness connectors.

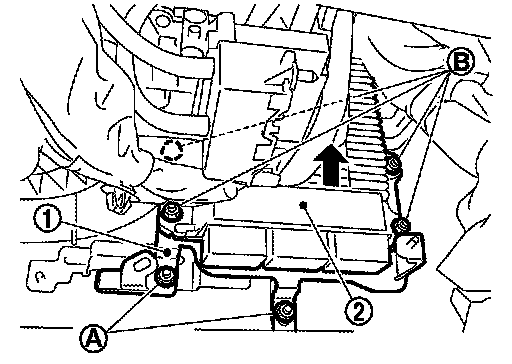

5. Remove ECM bracket bolt (A)
6. Slide the ECM bracket (1) upward and then remove ECM bracket with ECM.
7. Remove ECM bracket bolts (B) and separate ECM (2) and ECM bracket.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
Must be perform additional service when replacing ECM. Work Procedure.
