Consult-III Function (BCM)





DIAGNOSIS SYSTEM (BCM)


FLASHER : CONSULT-III Function (BCM - FLASHER)

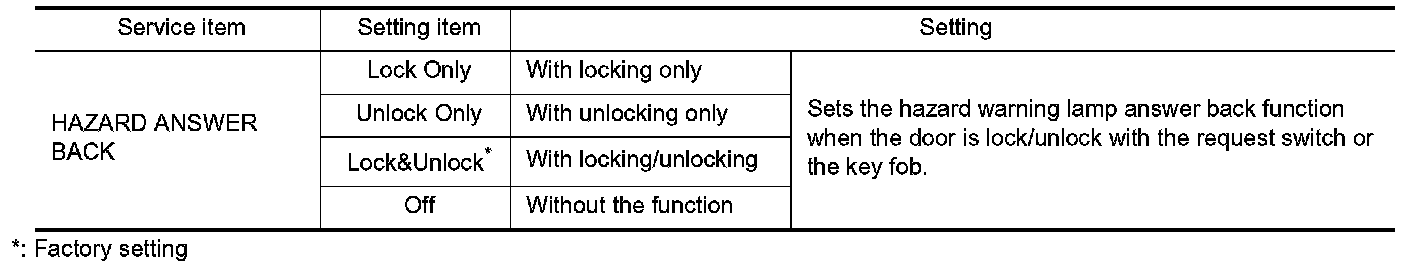

WORK SUPPORT

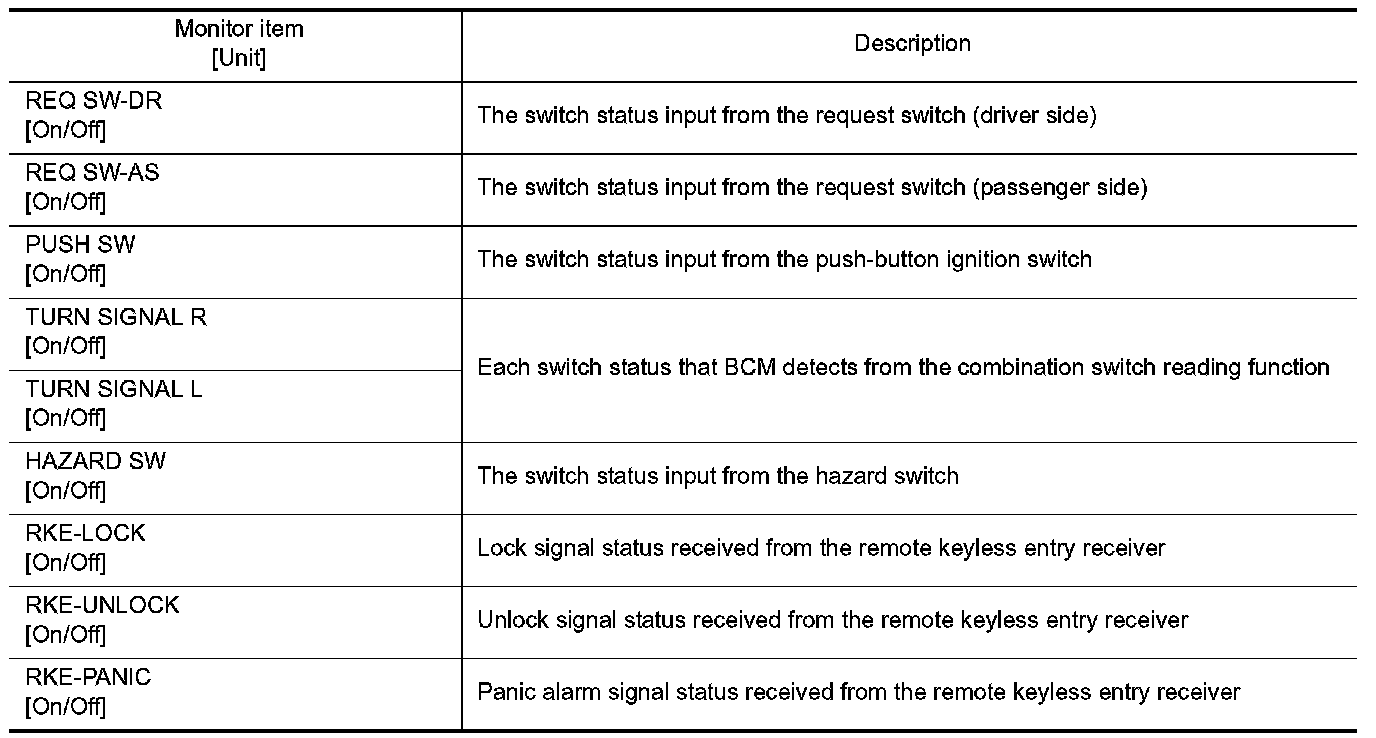

DATA MONITOR

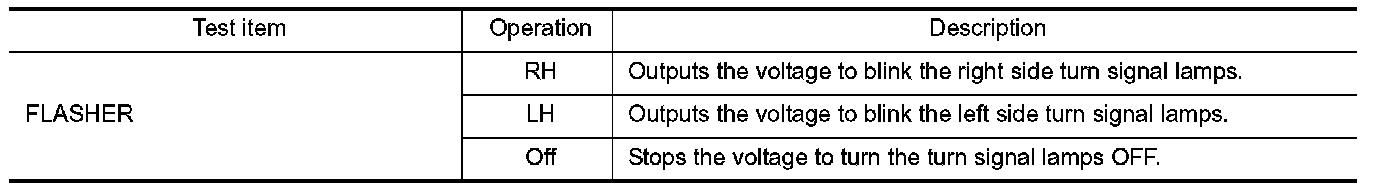

ACTIVE TEST
