M37x AWD V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Common Item
>>
Consult-III Function
>>
Headlamp
Headlamp
DIAGNOSIS SYSTEM (BCM)
HEADLAMP
: CONSULT-III Function (BCM - HEAD LAMP)

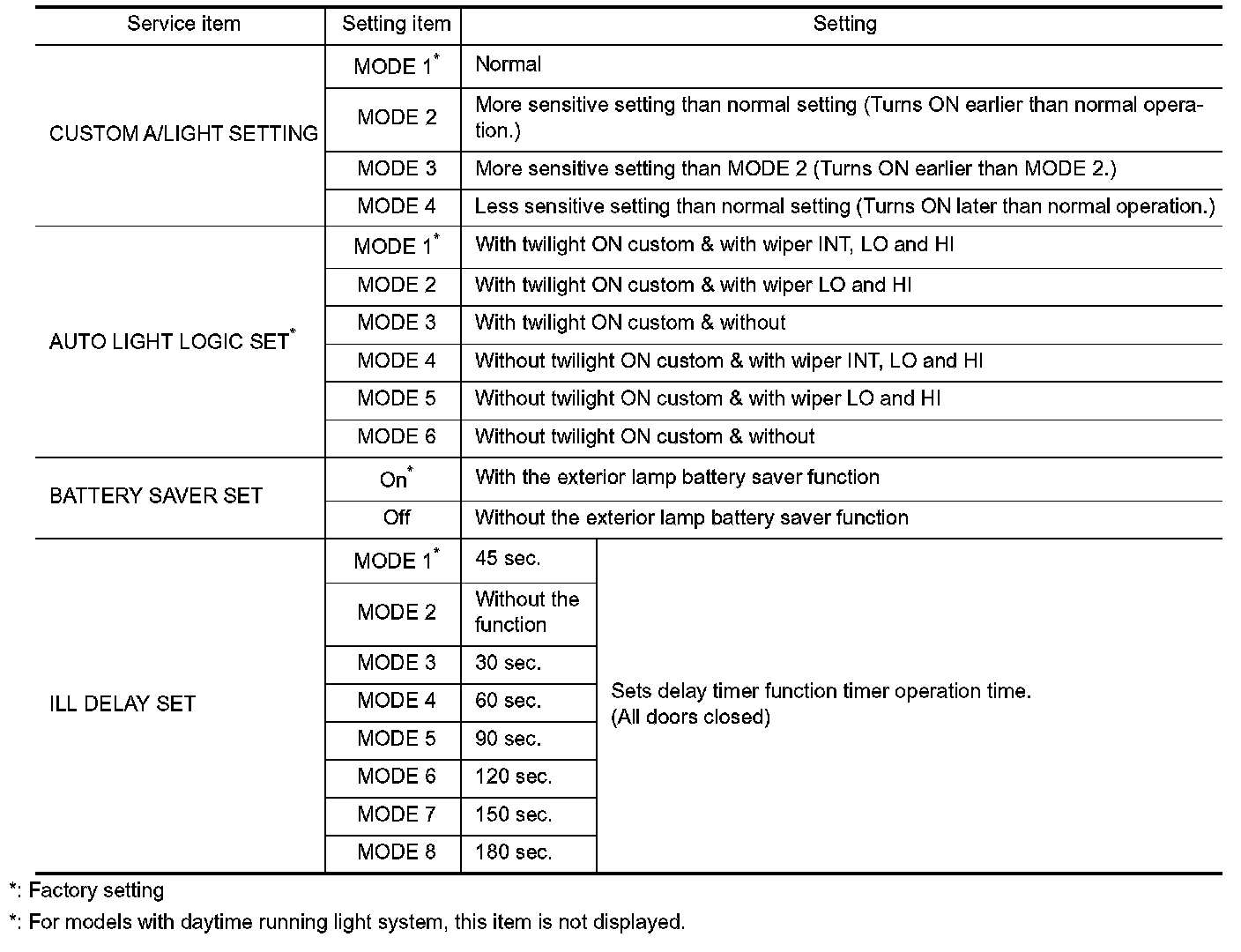

WORK SUPPORT

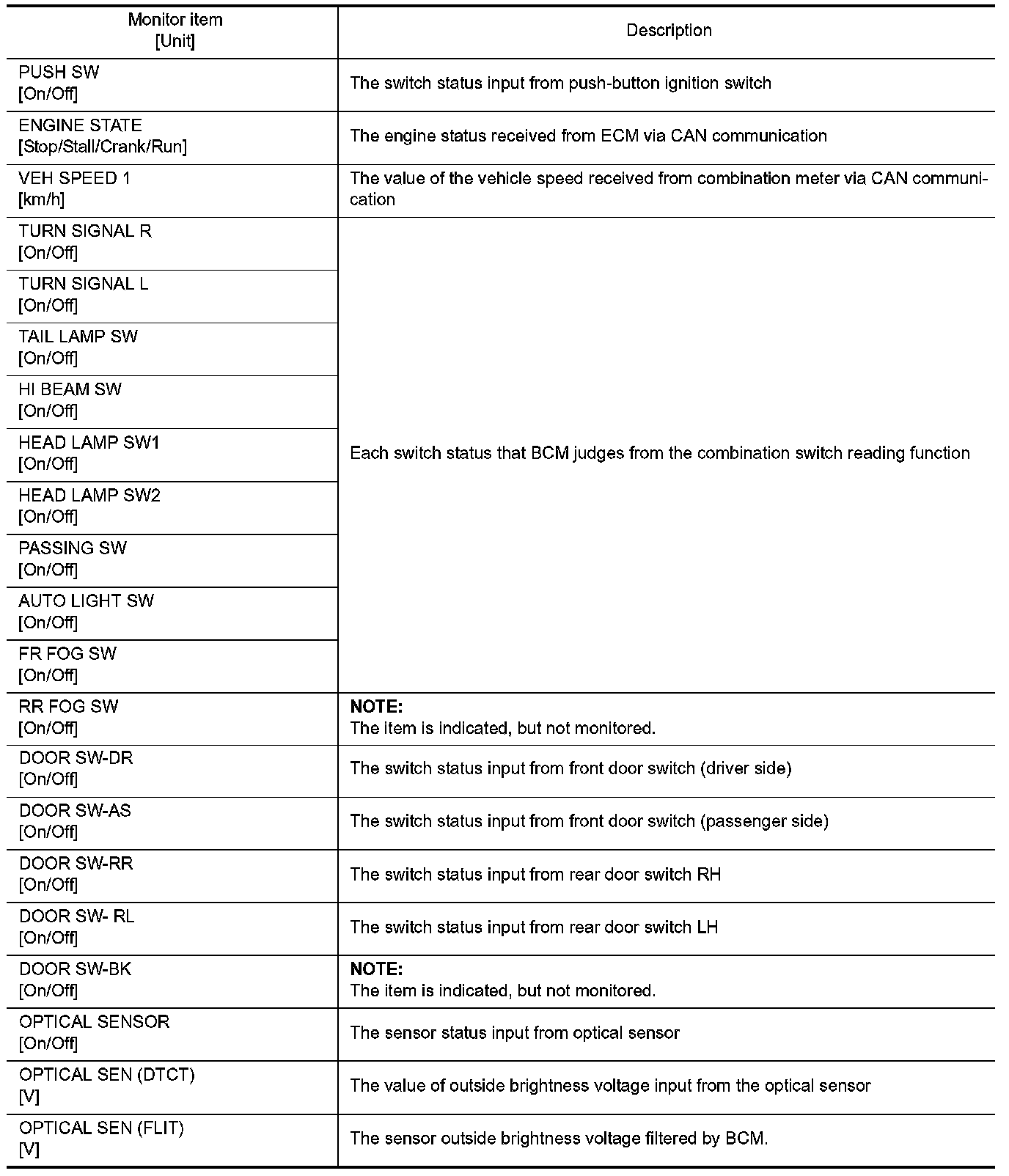

DATA MONITOR

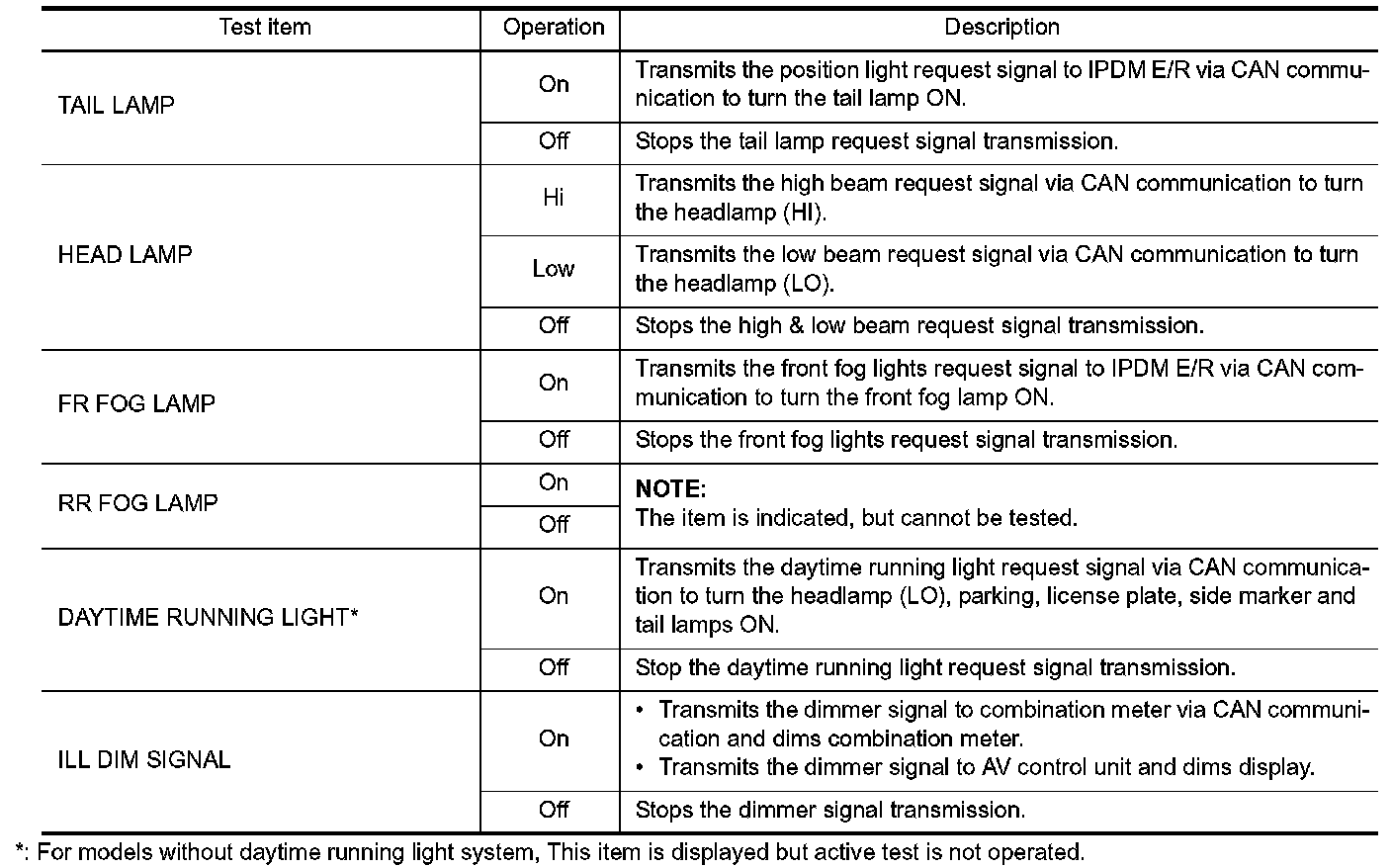

ACTIVE TEST
