Symptom Related Diagnostic Procedures

PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED ON





Description
The parking, license plate, tail lamps and each illumination are not turned ON in any condition.




Diagnosis Procedure
1.COMBINATION SWITCH INSPECTION
Check combination switch. Symptom Related Diagnostic Procedures.
Is the combination switch normal?
YES - GO TO 2.
NO - Repair or replace the malfunctioning part.
2.CHECK TAIL LAMP RELAY REQUEST SIGNAL INPUT
CONSULT-III DATA MONITOR

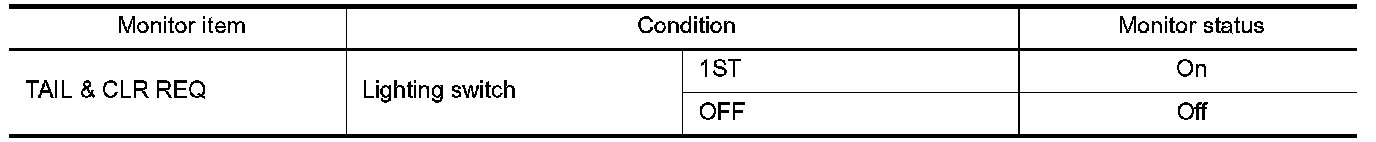

1. Select "TAIL & CLR REQ" of IPDM E/R data monitor item.
2. With operating the lighting switch, check the monitor status.





Is the inspection result normal?
YES - GO TO 3.
NO - Replace BCM. Service and Repair.
3.DAYTIME RUNNING LIGHT RELAY CIRCUIT INSPECTION
Check the daytime running light relay circuit. Daytime Running Light Relay Circuit.
Is the inspection result normal?
YES - Replace IPDM E/R.
NO - Repair or replace the malfunctioning part.
