Map Light Bulb: Service and Repair

MAP LAMP


Replacement


CAUTION:
- Disconnect the battery negative terminal or remove power circuit fuse while performing the operation to electric leakage.
- Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to the bulb.
- Never touch the glass surface of the bulb with bare hands because the surface is very hot just after the lamp is turned OFF to prevent a burns.
- Leaving the bulb removed from housing for a long period of time can deteriorate performance of the lens and reflector (causing dirty or clouding). Always prepare a new bulb and have it on hand when replacing the bulb.

MAP LAMP BULB

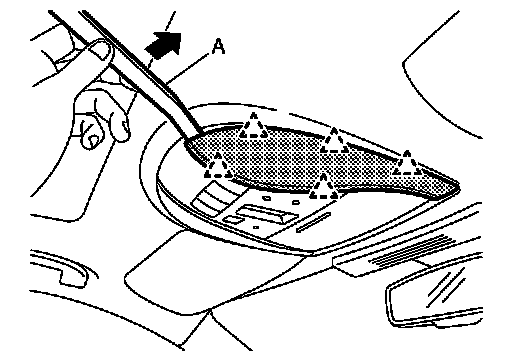

1. Insert a remover tool (A) into the gap between the lens to disengage fixing pawls as shown by the arrow in the figure, and then remove the lens.

Triangle: Pawl

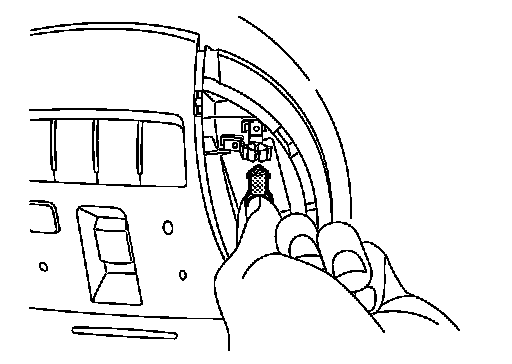

2. Rotate the bulb clockwise or counterclockwise by 90� and remove the bulb as shown in the figure.
