Home >> Infiniti >> 2011 >> M37x AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Description and Operation >> Auto Light System (Without DTRL) >> System Diagram

System Diagram

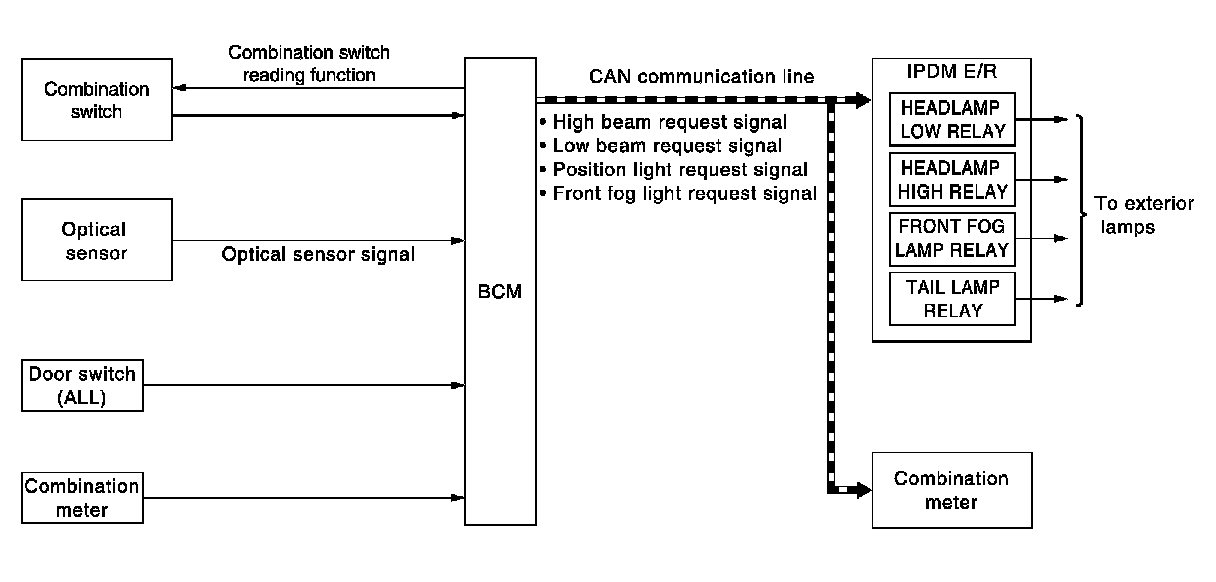

AUTO LIGHT SYSTEM (WITHOUT DTRL) AUTO LIGHT SYSTEM (WITHOUT DTRL) : System Diagram
