Auto Light System (With DTRL)
>>
System Diagram
System Diagram

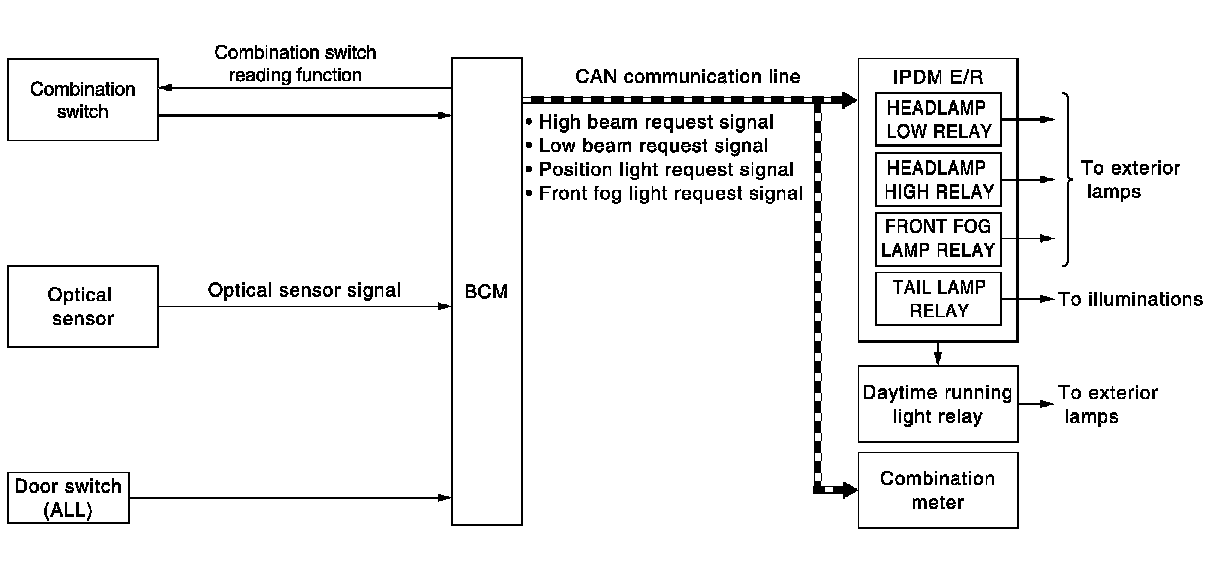

AUTO LIGHT SYSTEM (WITH DTRL) AUTO LIGHT SYSTEM (WITH DTRL) : System Diagram
