Removal And Installation

FOOT LAMP


DRIVER SIDE : Removal and Installation


CAUTION:
- Disconnect the battery negative terminal or remove power circuit fuse while performing the operation to electric leakage.
- Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to the bulb.
- Never touch the glass surface of the bulb with bare hands because the surface is very hot just after the lamp is turned OFF to prevent a burns.

REMOVAL
1. Remove instrument lower panel (1). Removal And Installation
2. Disconnect foot lamp harness connector.

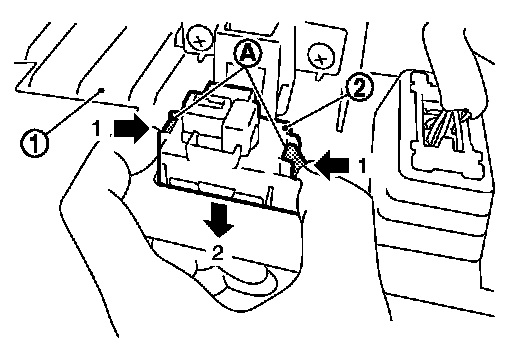

3. Remove foot lamp case (2) downward while pressing metal clips
(A), in the directions indicated by arrows as shown in the figure.

INSTALLATION
Install in the reverse order of removal.
