Automatic Air Conditioner System (Without Forest Air)

AUTOMATIC AIR CONDITIONING SYSTEM (WITHOUT FOREST AIR)

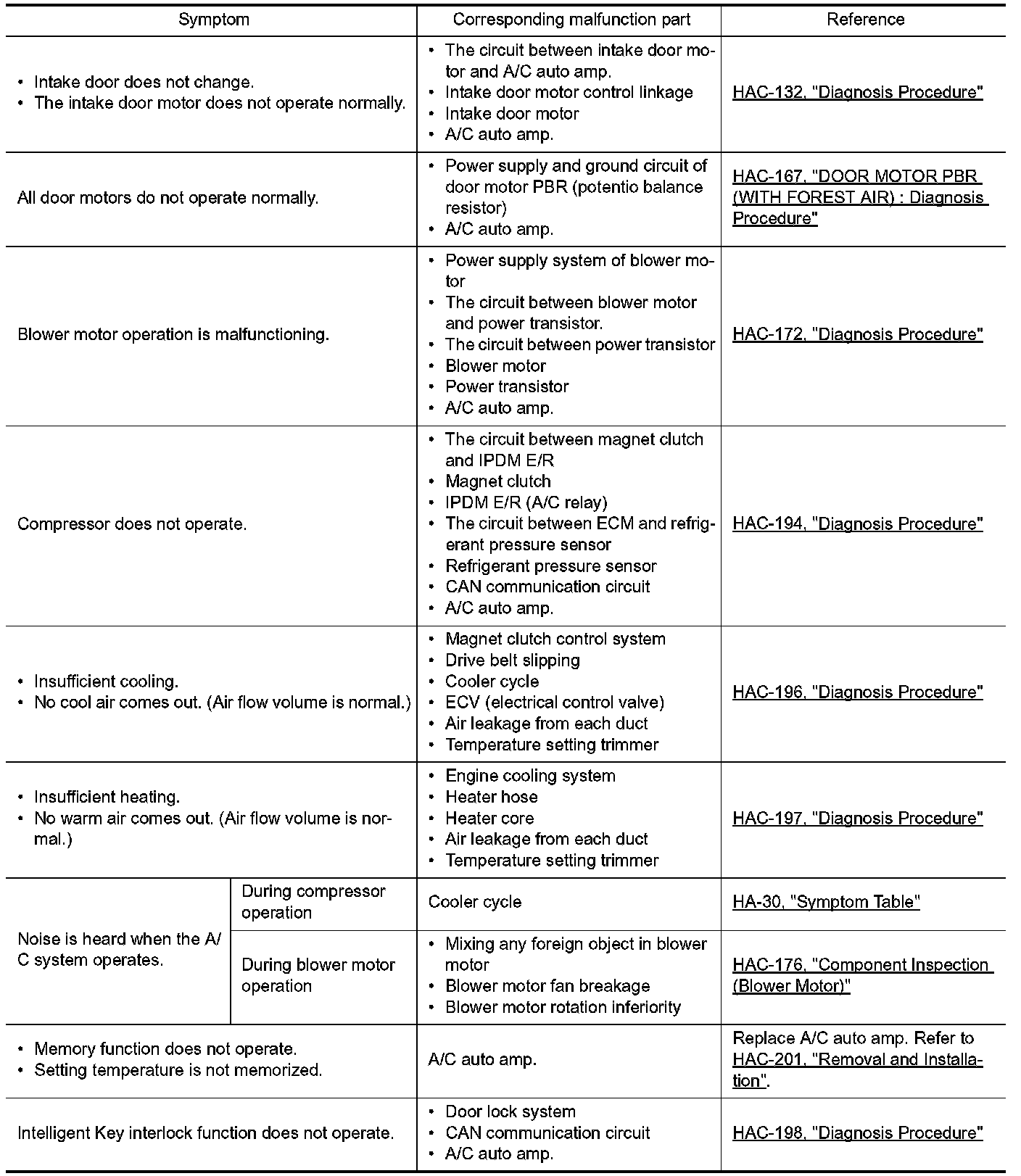

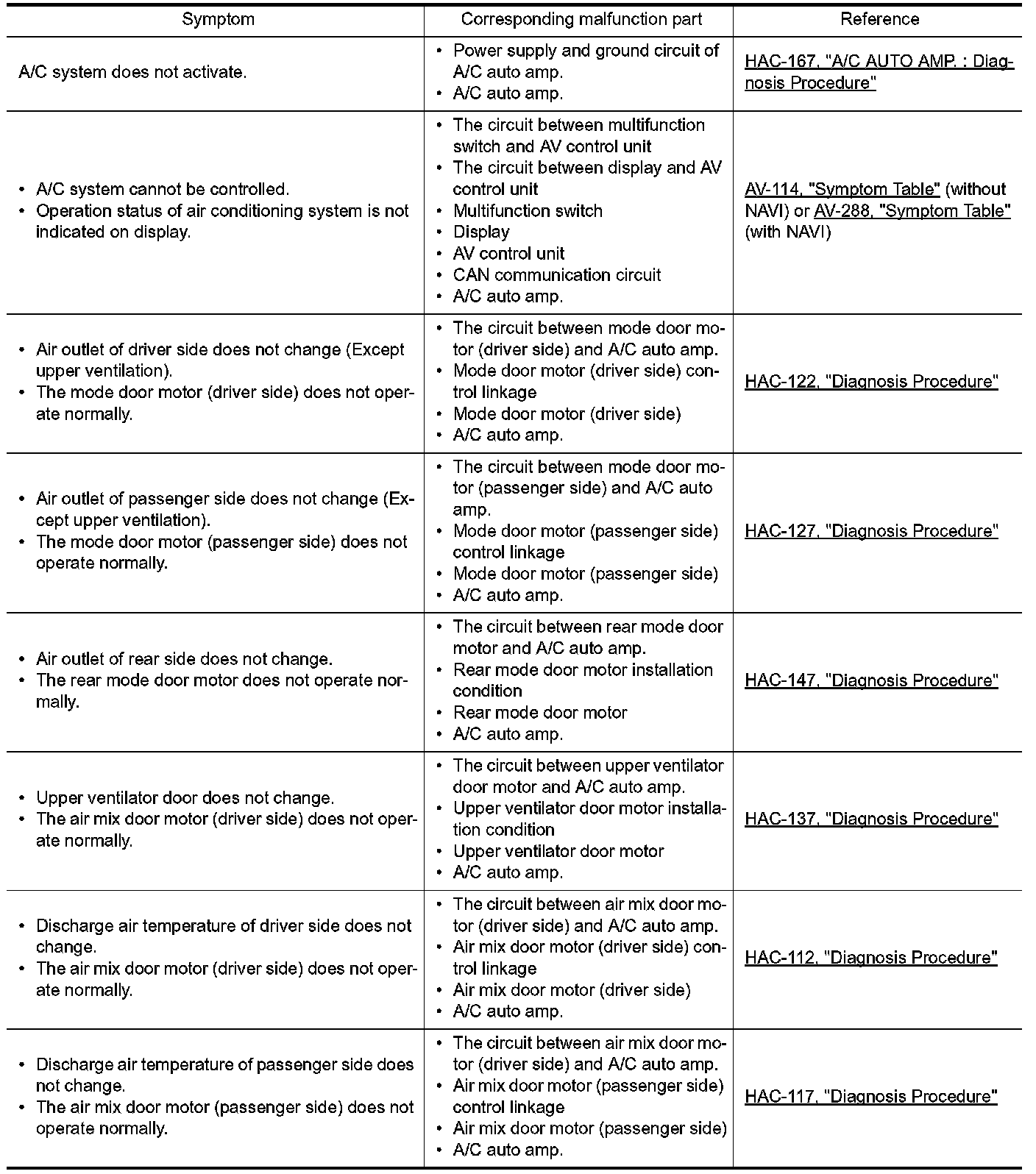

Symptom Table


NOTE:
Perform the self-diagnoses with CONSULT-III before performing the symptom diagnosis. If DTC is detected, perform the corresponding diagnosis.
