Consult-III Function

DIAGNOSIS SYSTEM (HVAC)


CONSULT-III Function


APPLICATION ITEM
CONSULT-III performs the following functions via CAN communication with A/C auto amp.






NOTE:
Diagnosis should be performed with engine running. Door motor operation speeds become slower and NO results may be returned even for normal operation if battery voltage drops below 12 V during self-diagnosis.

ECU IDENTIFICATION
Part number of A/C auto amp. can be checked.

NOTE:
When the vehicle specification is written to A/C auto amp. using control unit setting, part number of A/C auto amp. is updated to match the vehicle specification.

SELF DIAGNOSTIC RESULT
Diagnosis result that is judged by A/C auto amp. can be checked. Testing and Inspection.

DATA MONITOR

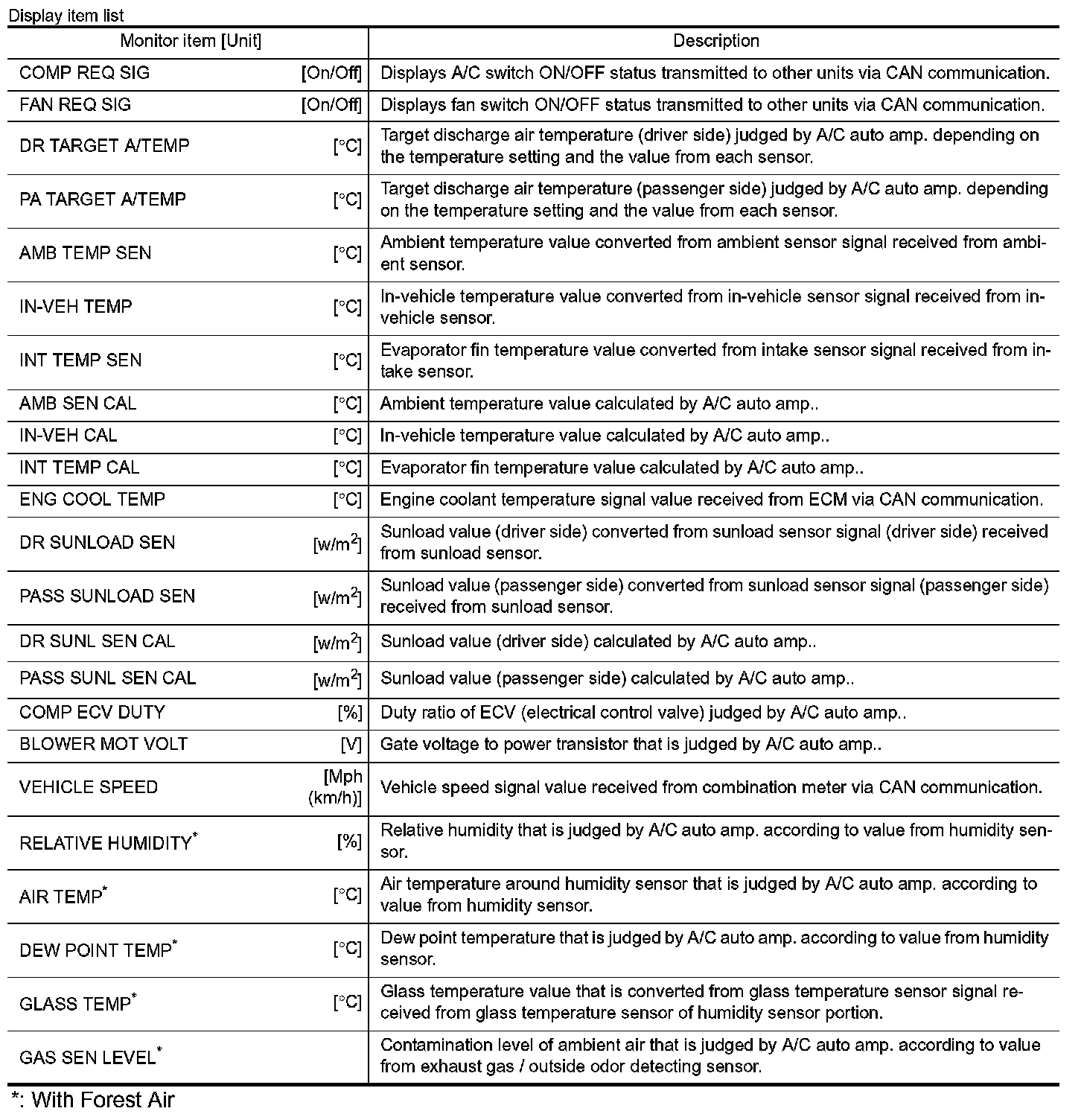

Input/output signal of A/C auto amp. can be checked.






*: With Forest Air

ACTIVE TEST

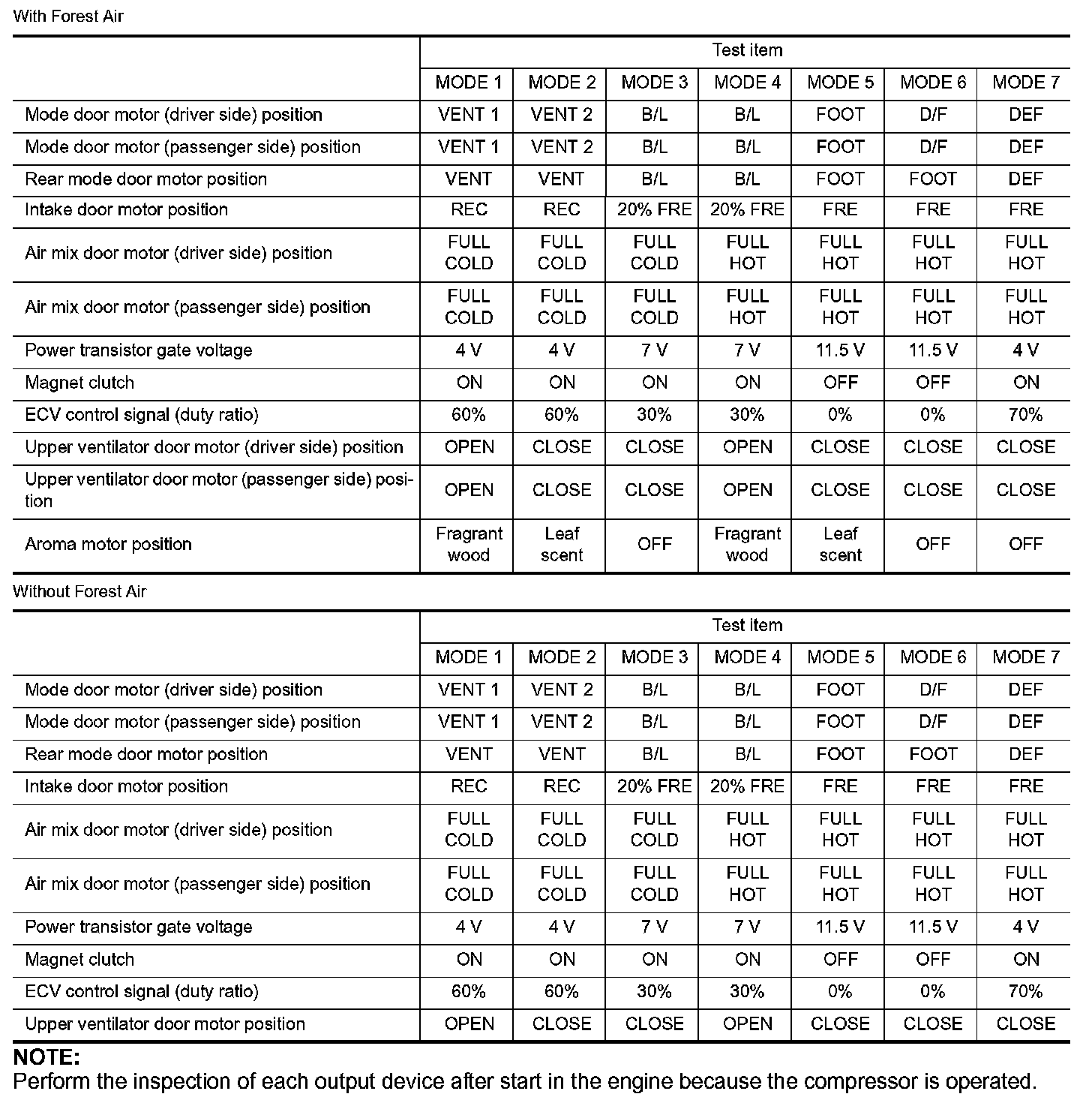

The signals used to activate each device forcibly supplied from A/C auto amp. operation check of air conditioning system can be performed.

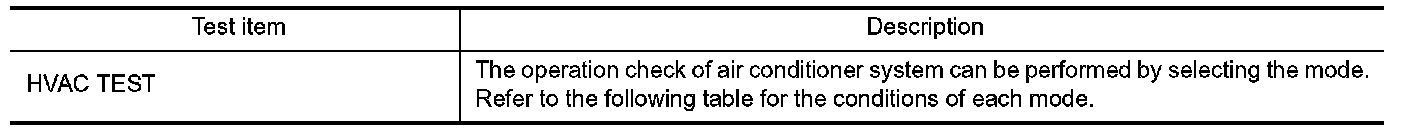

Check each output device
With Forest Air






With Forest Air
NOTE:
Perform the inspection of each output device after start in the engine because the compressor is operated.

WORK SUPPORT

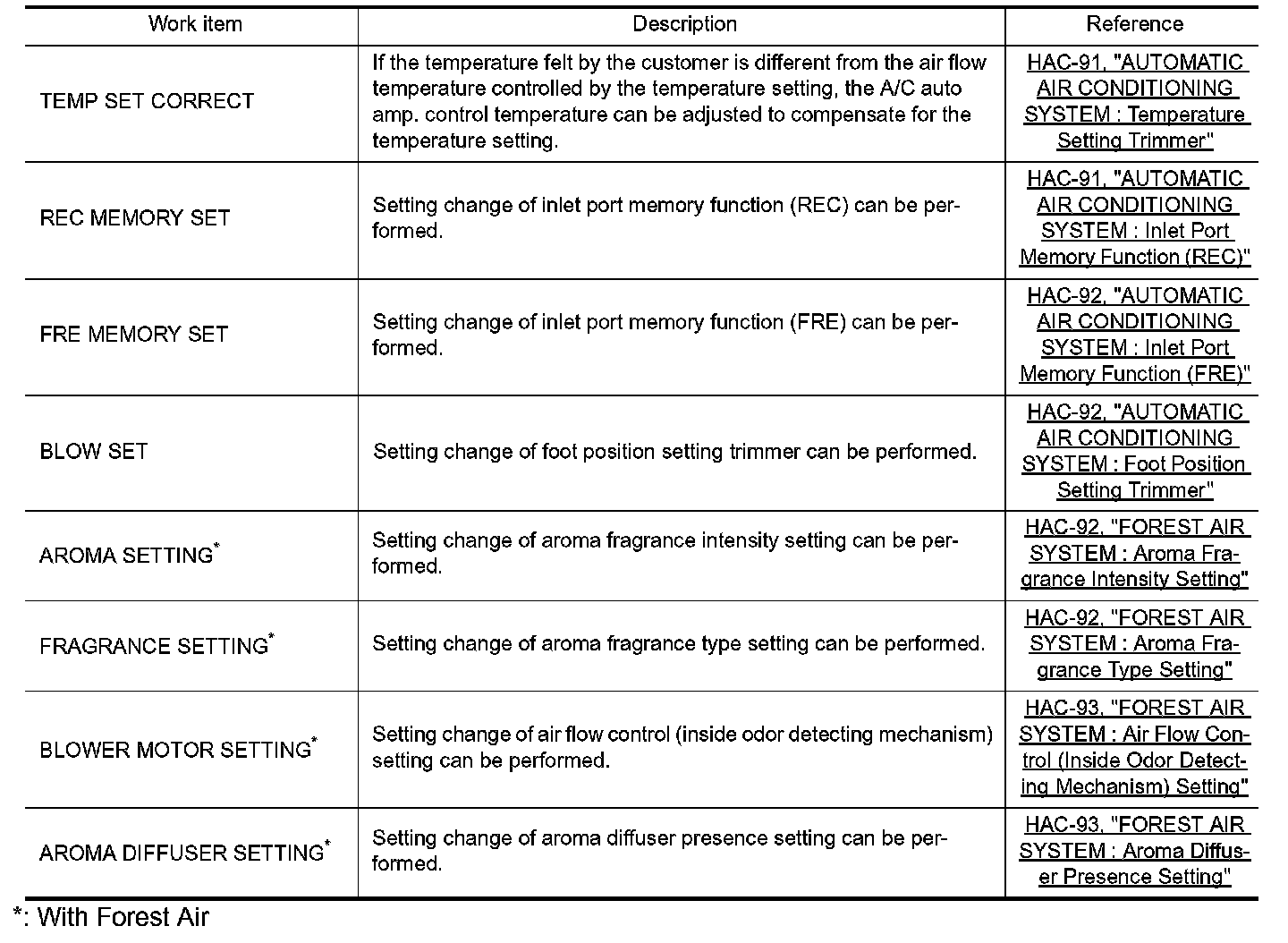

Setting change of each setting functions can be performed.






*: With Forest Air

CONFIGURATION
The vehicle specification that is written in A/C auto amp. can be displayed or stored.
The vehicle specification can be written when A/C auto amp. is replaced. Description.
