Temperature Setting Trimmer

SYSTEM SETTING


AUTOMATIC AIR CONDITIONING SYSTEM : Temperature Setting Trimmer


DESCRIPTION
If the temperature felt by the customer is different from the air flow temperature controlled by the temperature setting, the A/C auto amp. control temperature can be adjusted to compensate for the temperature setting.

HOW TO SET
With CONSULT-III

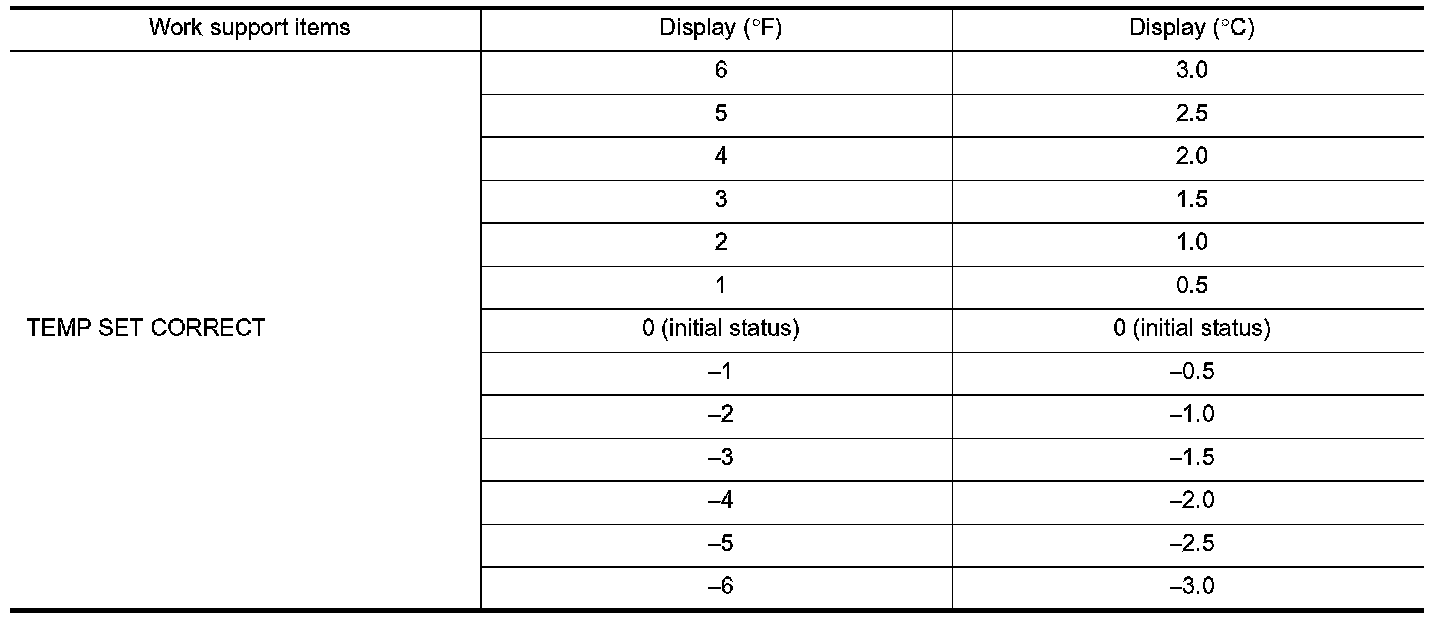

Perform "TEMP SET CORRECT" of HVAC work support item.






NOTE:
When -3.0�C (-6�F) is corrected on the temperature setting set as 25.0�C (77�F), the temperature controlled by A/C auto amp. is 25.0�C (77�F) - 3.0�C (-6�F) = 22.0�C (72�F) and the temperature becomes lower than the temperature setting.
