Foot Position Setting Trimmer

SYSTEM SETTING


AUTOMATIC AIR CONDITIONING SYSTEM : Foot Position Setting Trimmer


DESCRIPTION
In FOOT mode, the air blowing to DEF can change ON/OFF.

HOW TO SET
With CONSULT-III

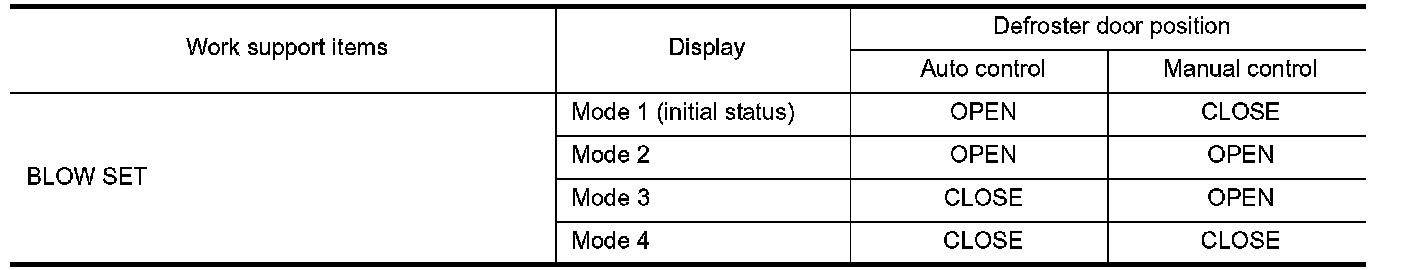

Perform the "BLOW SET" of HVAC work support item.
