Reference Value

A/C AUTO AMP.


Reference Value(AUTOMATIC AIR CONDITIONING)

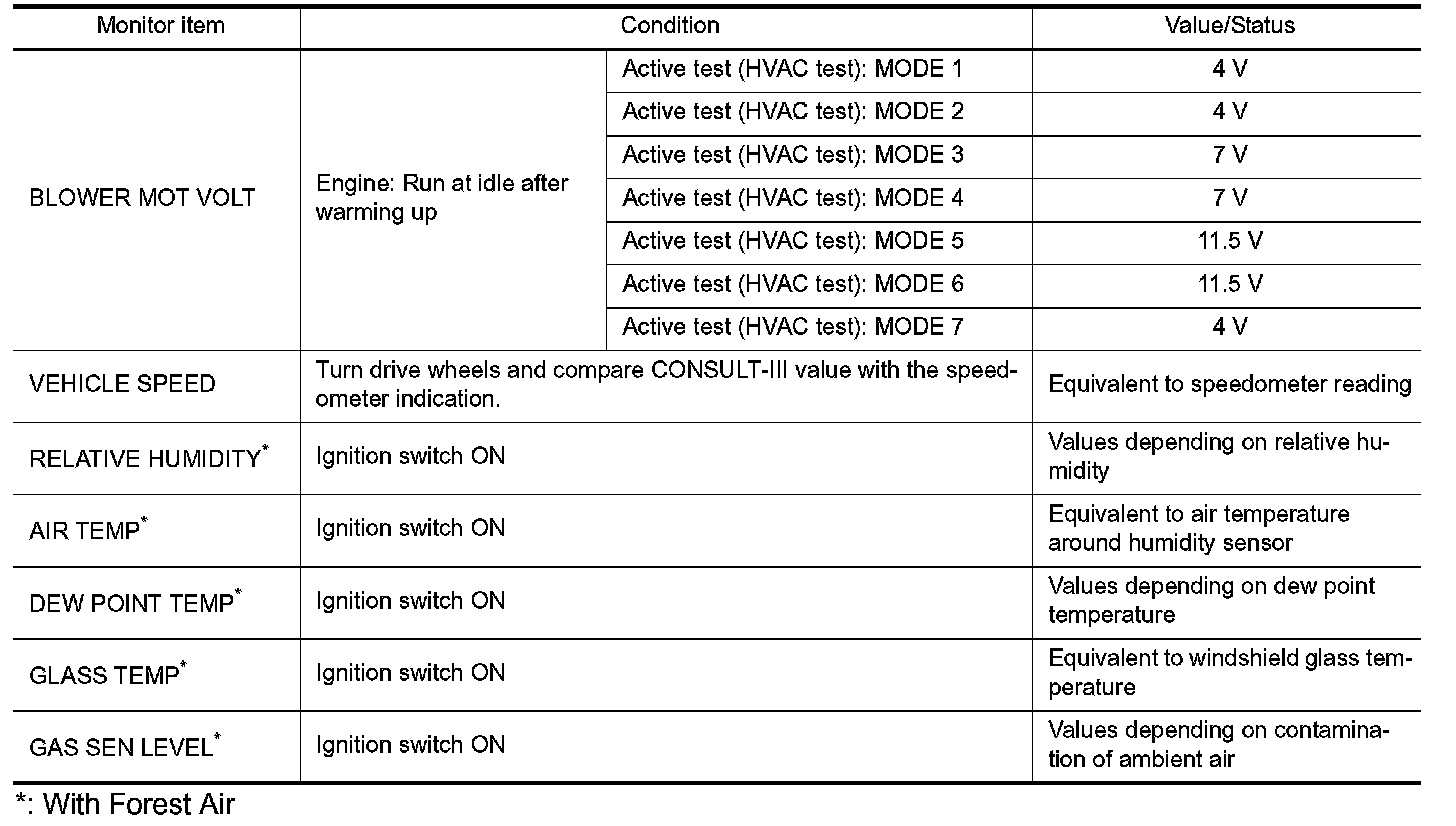

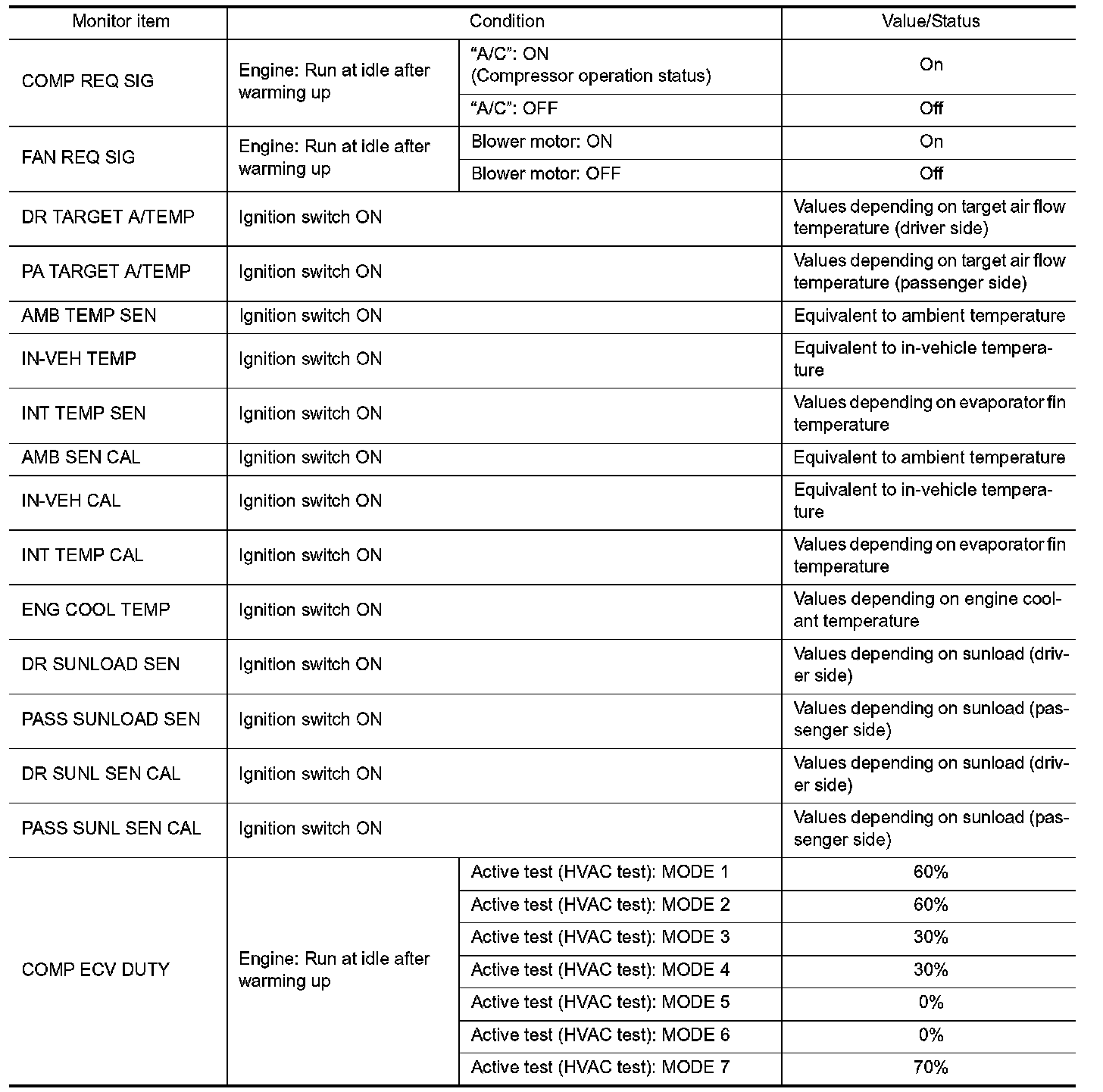

CONSULT-III DATA MONITOR REFERENCE VALUES










*: With Forest Air

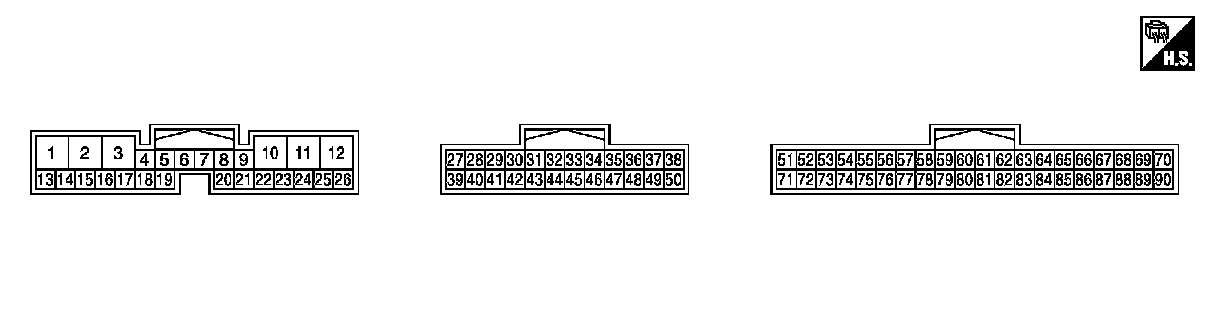

TERMINAL LAYOUT

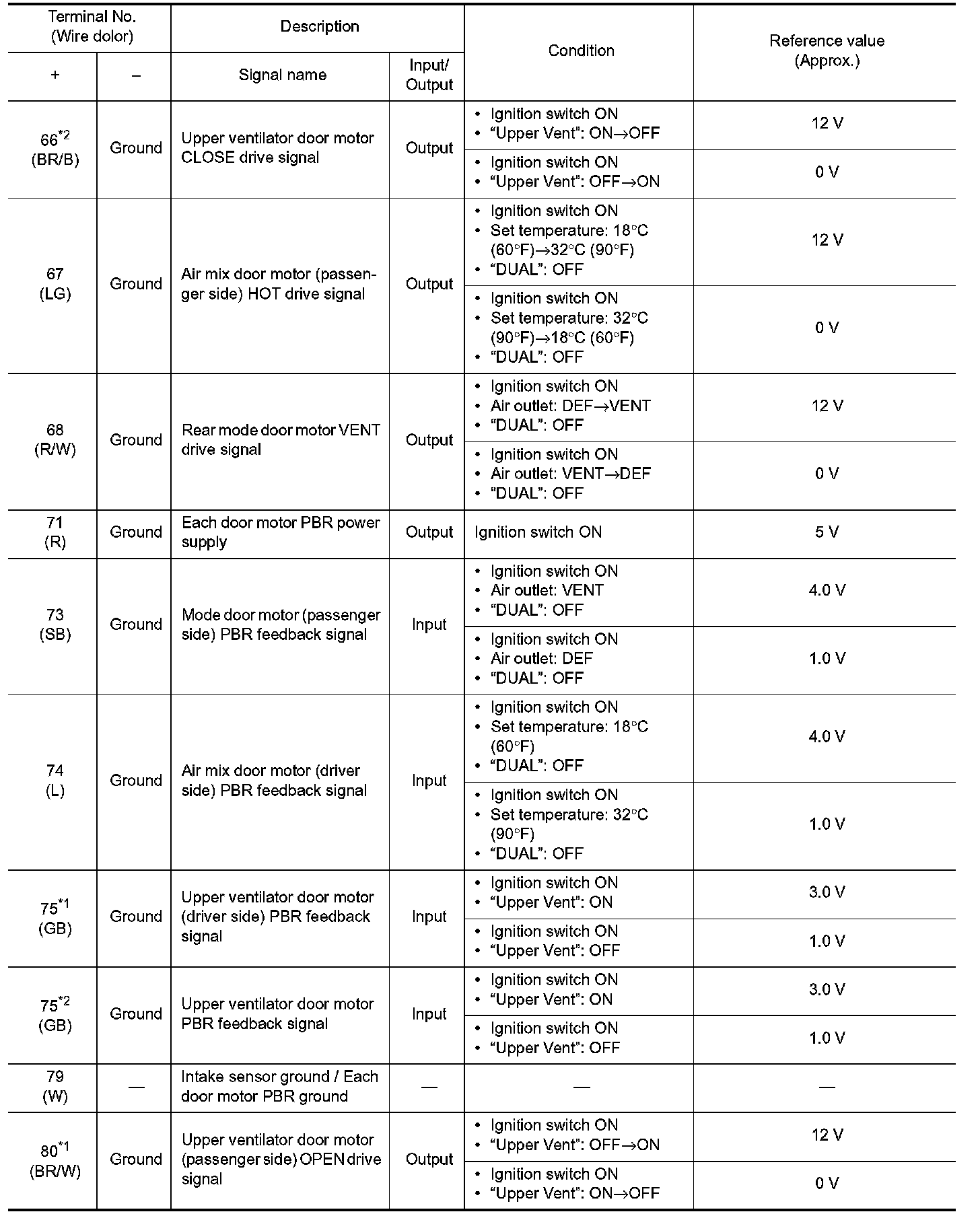

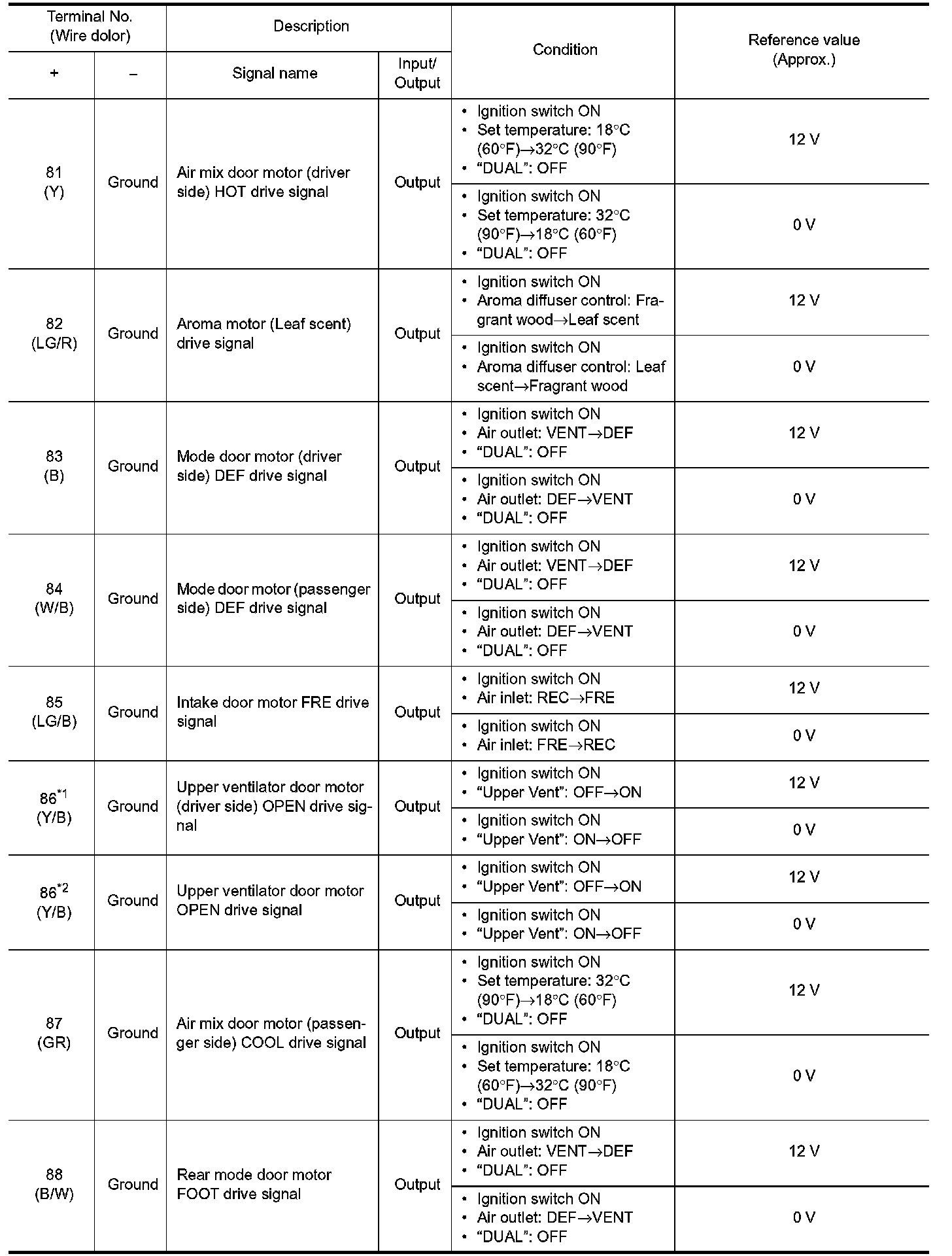

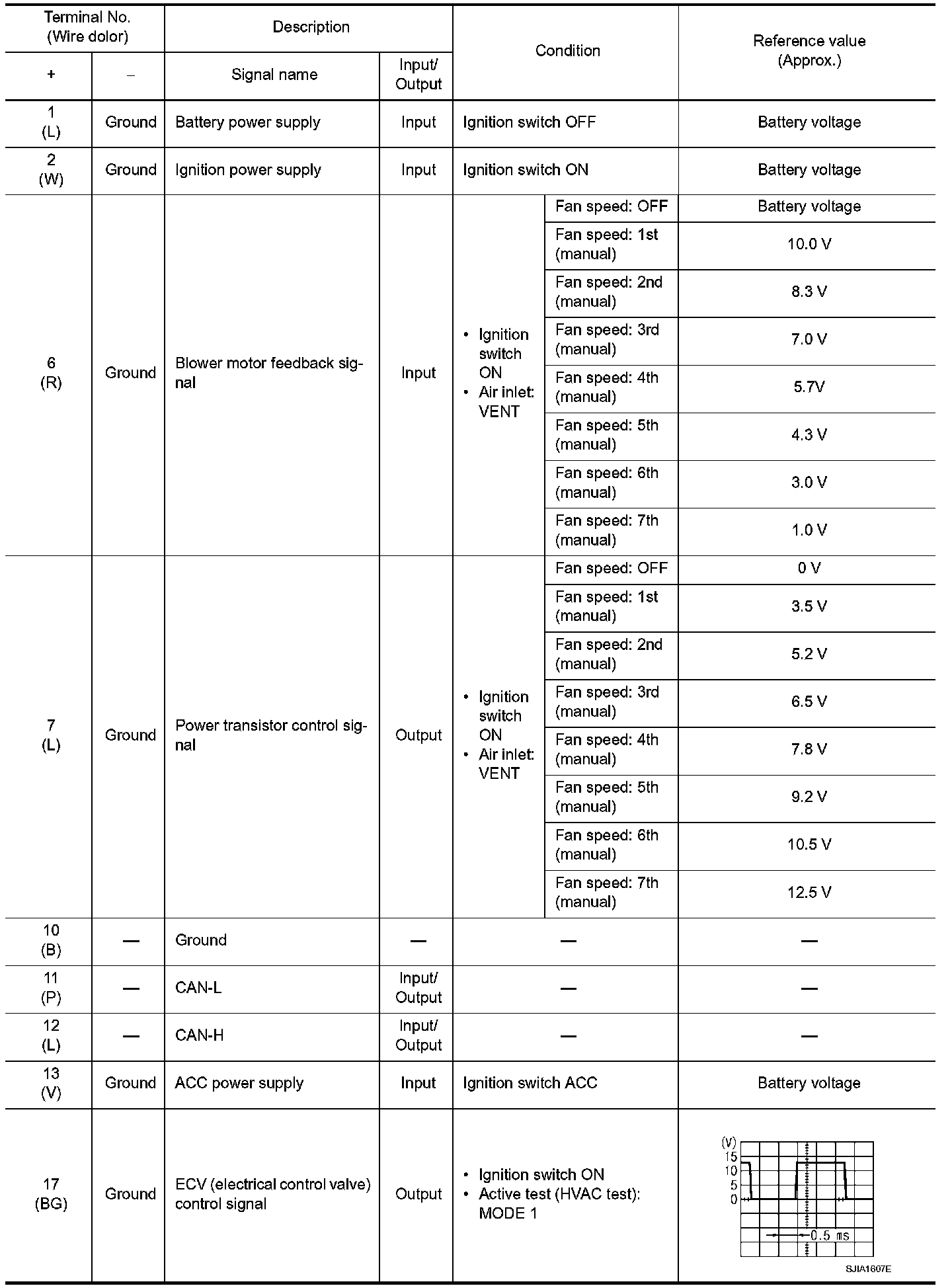

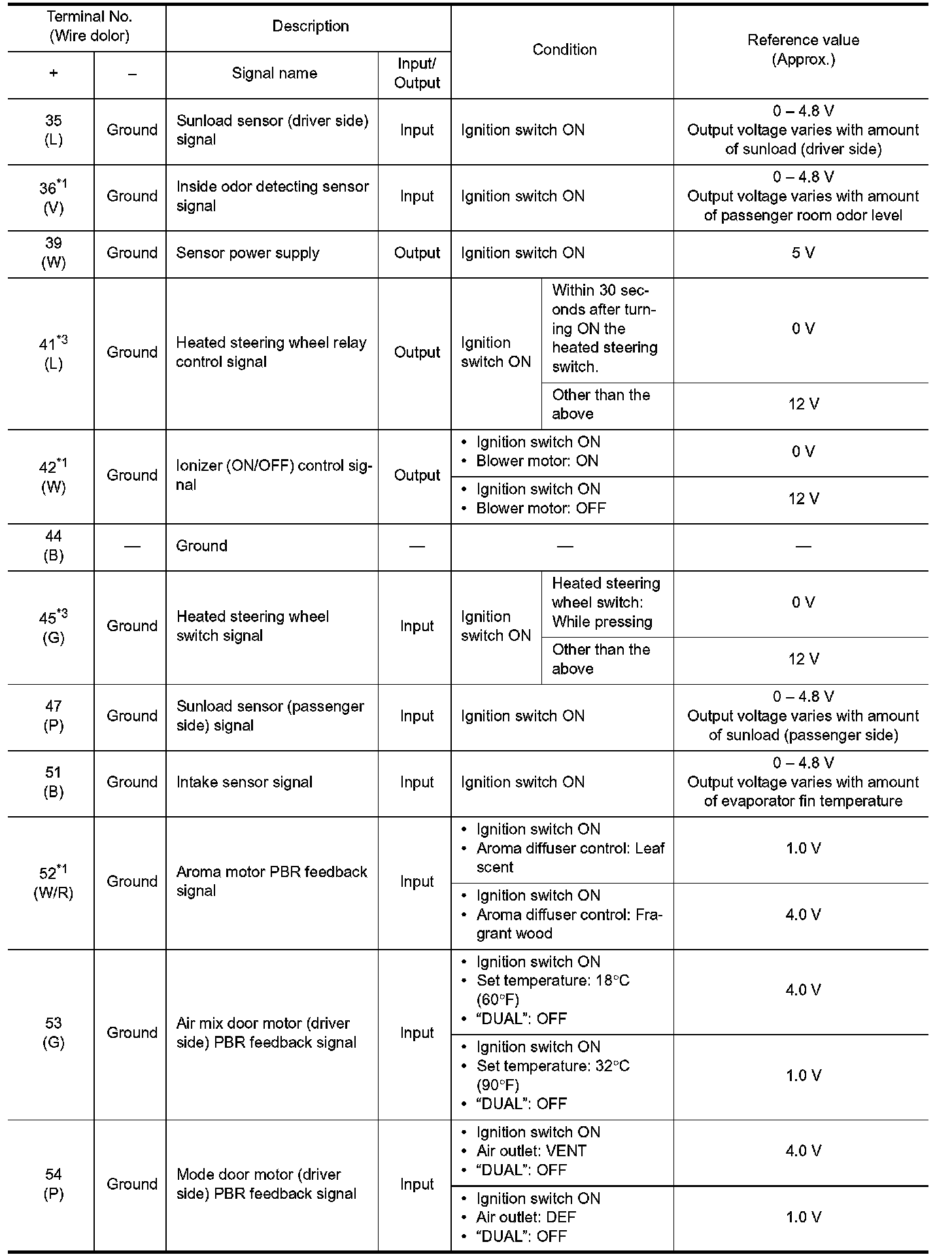

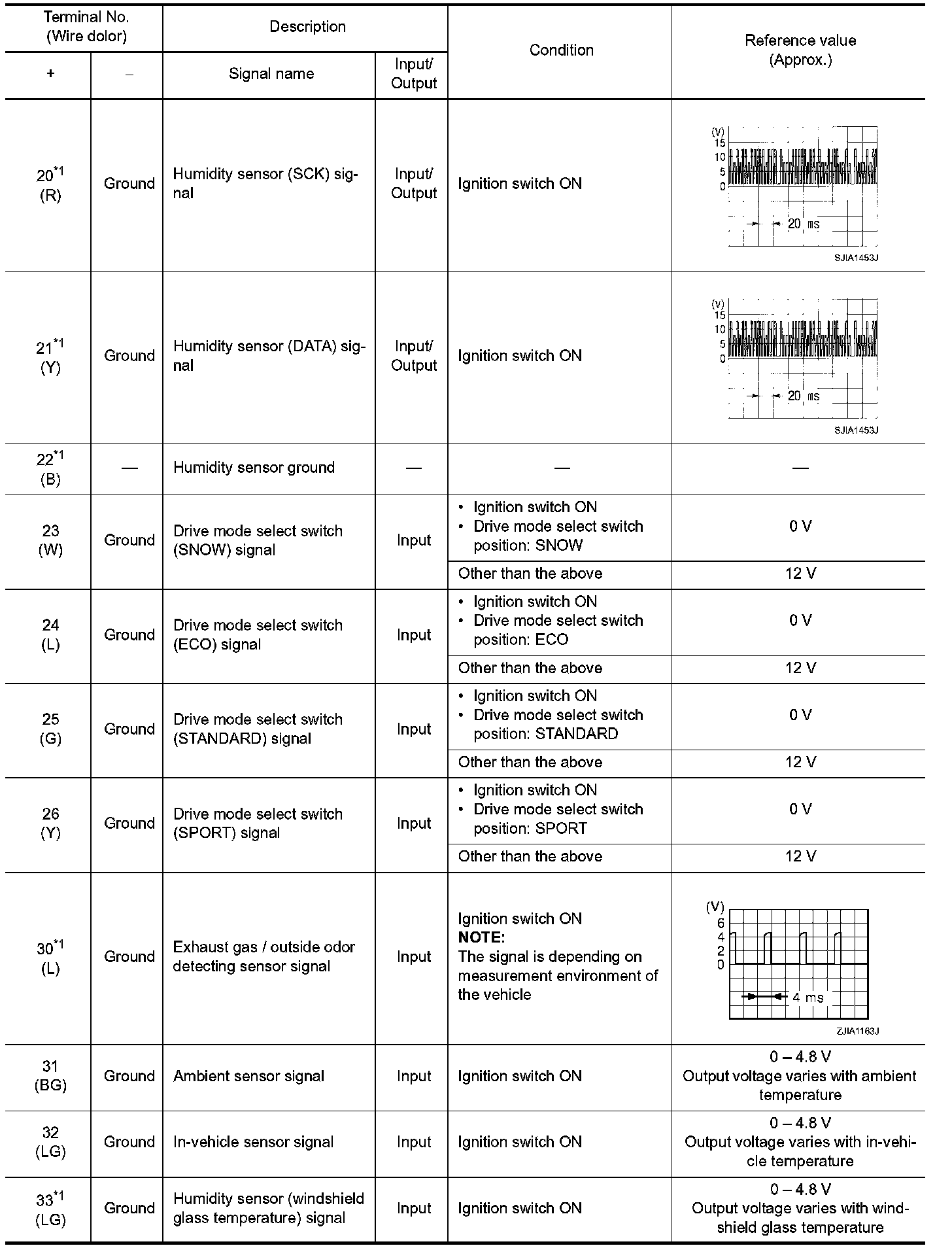

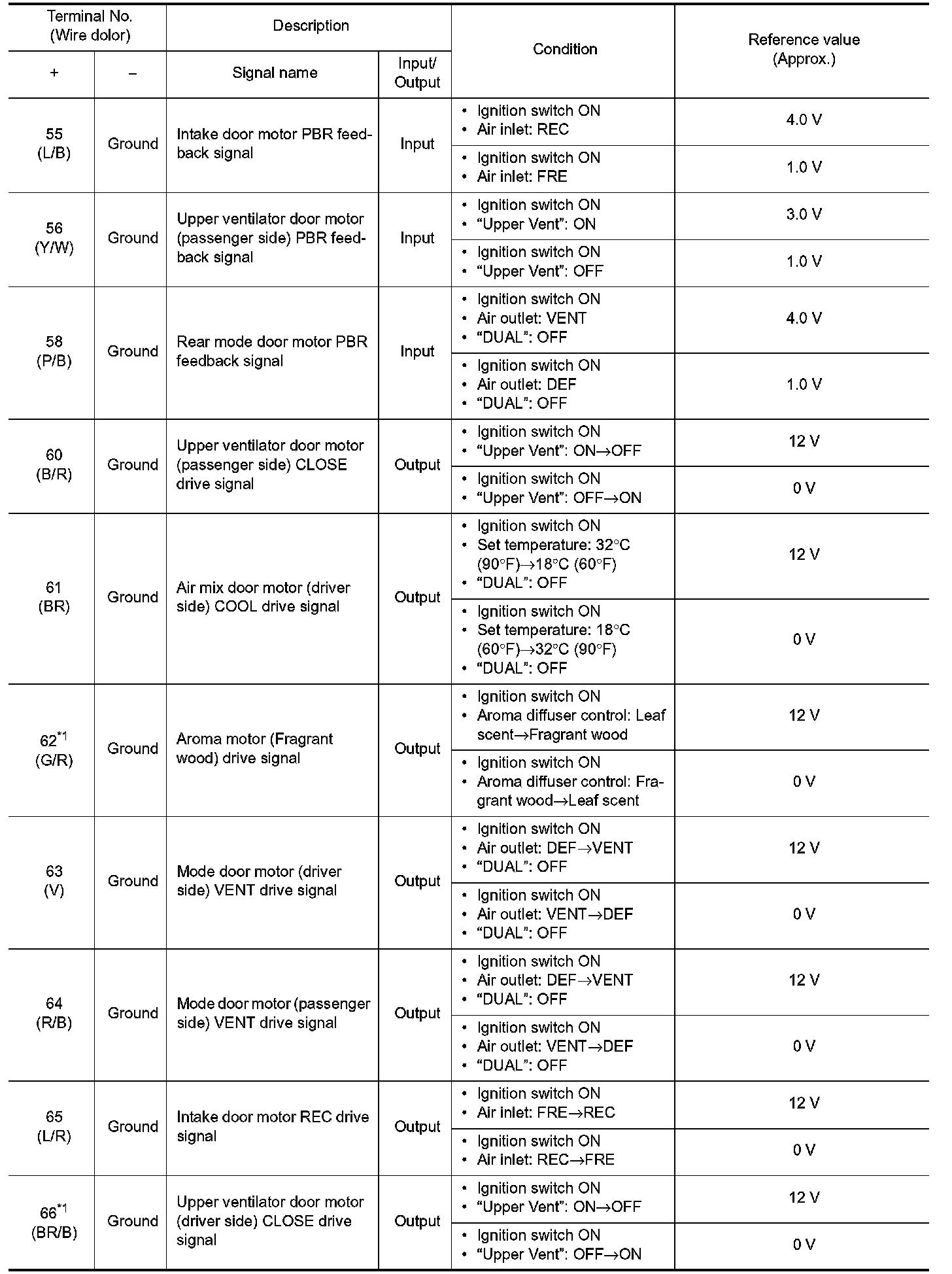

PHYSICAL VALUES






























*1: With Forest Air
*2: Without Forest Air
*3: With heated steering wheel
