Switch Name And Function

OPERATION


AUTOMATIC AIR CONDITIONING SYSTEM (WITHOUT FOREST AIR) AUTOMATIC AIR CONDITIONING SYSTEM (WITHOUT FOREST AIR) : Switch Name and Function


OPERATION AND DISPLAY

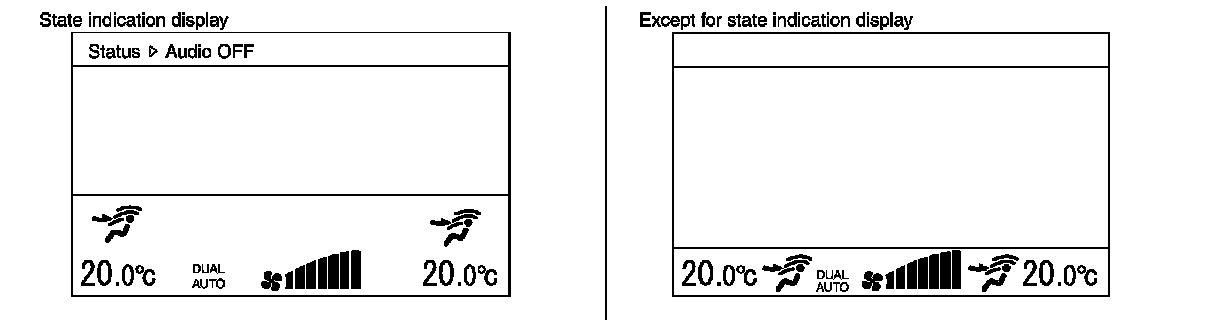

A/C Display
- With NAVI





- Without NAVI





- Air conditioning system state is indicated on the display.
- When "Status" on multifunction switch is pressed while air conditioning system is in the ON position, the display changes to state indication display of air conditioning system. When air conditioning system is operated while navigation system (with navi) or audio system is displayed, air conditioning system state is indicated in the lower portion of display for several seconds.
- When MODE switch is pressed while air conditioning system is in the OFF position, state indication display is indicated for several seconds.

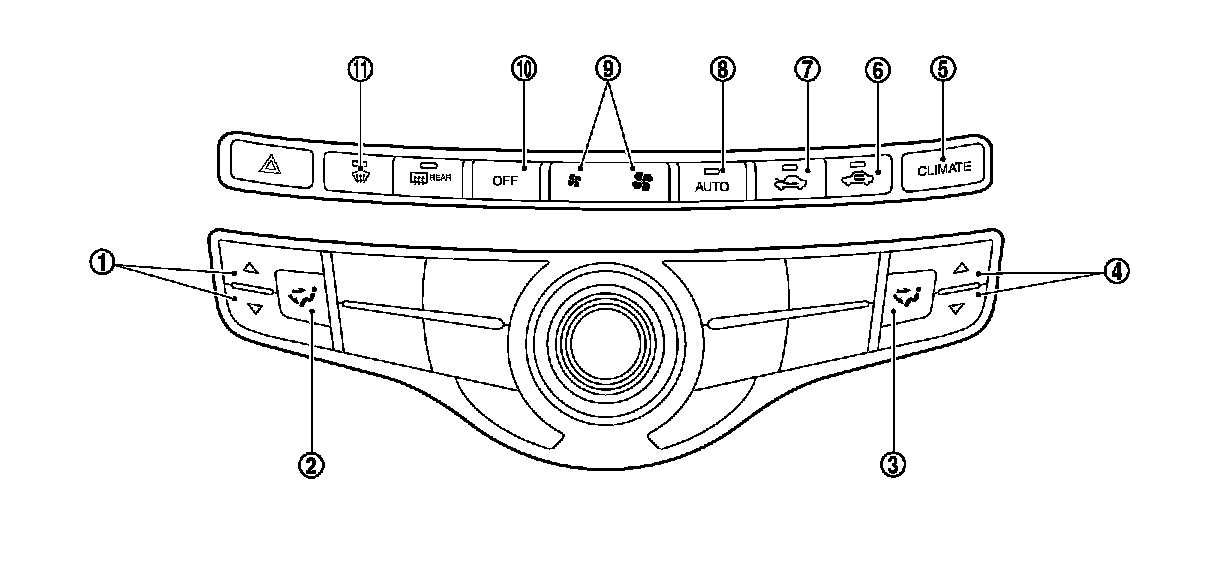

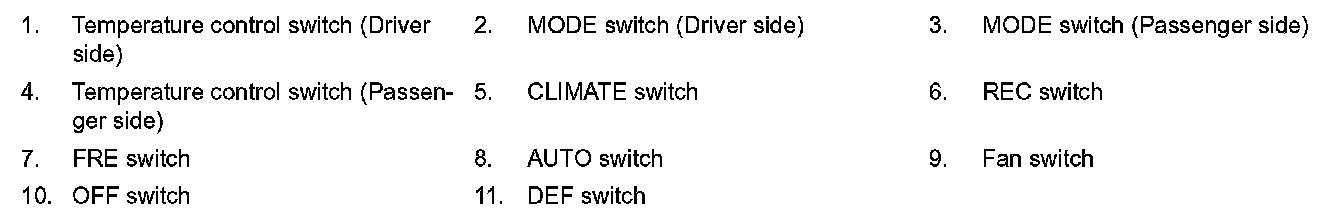

A/C Controller (Multifunction switch)

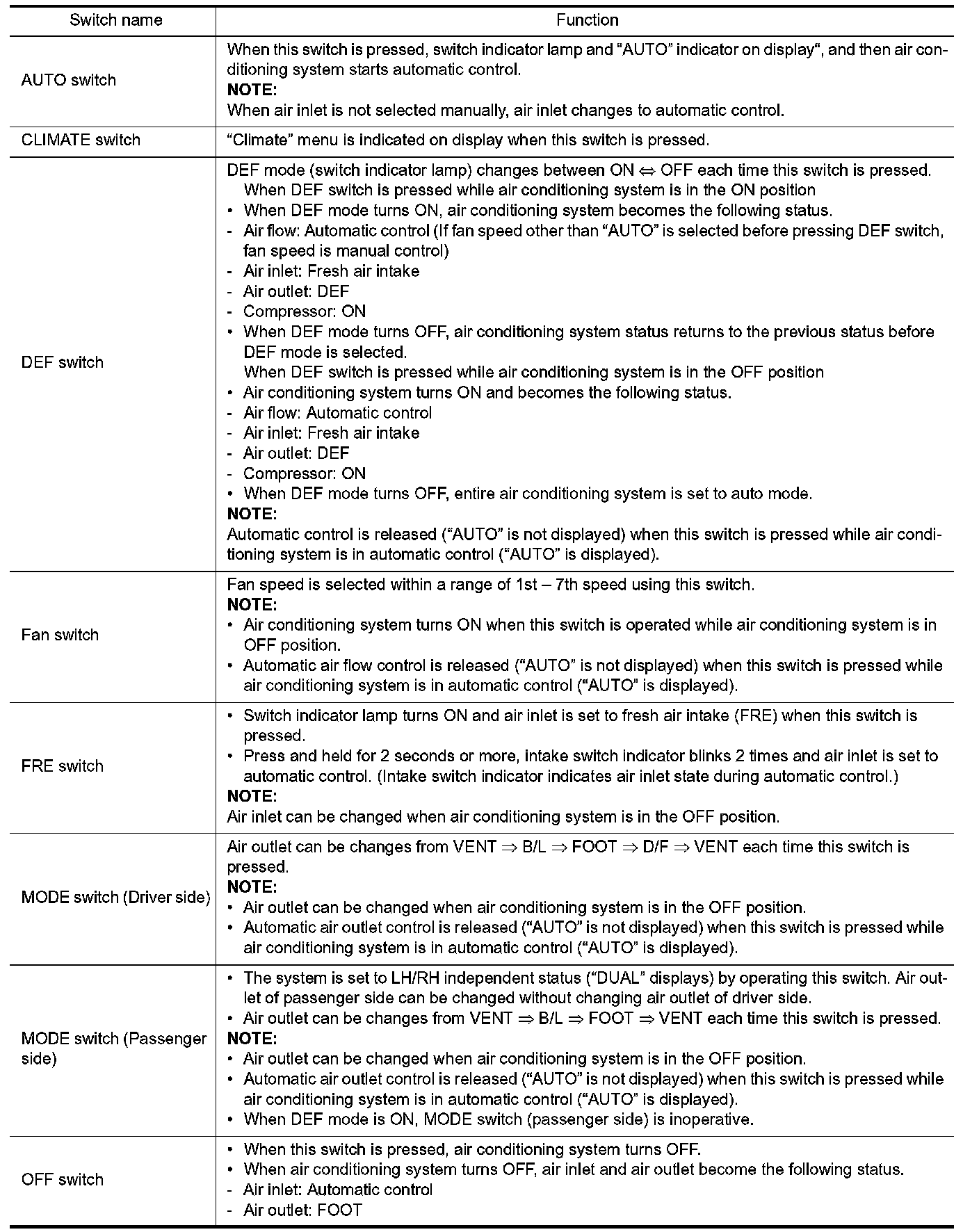

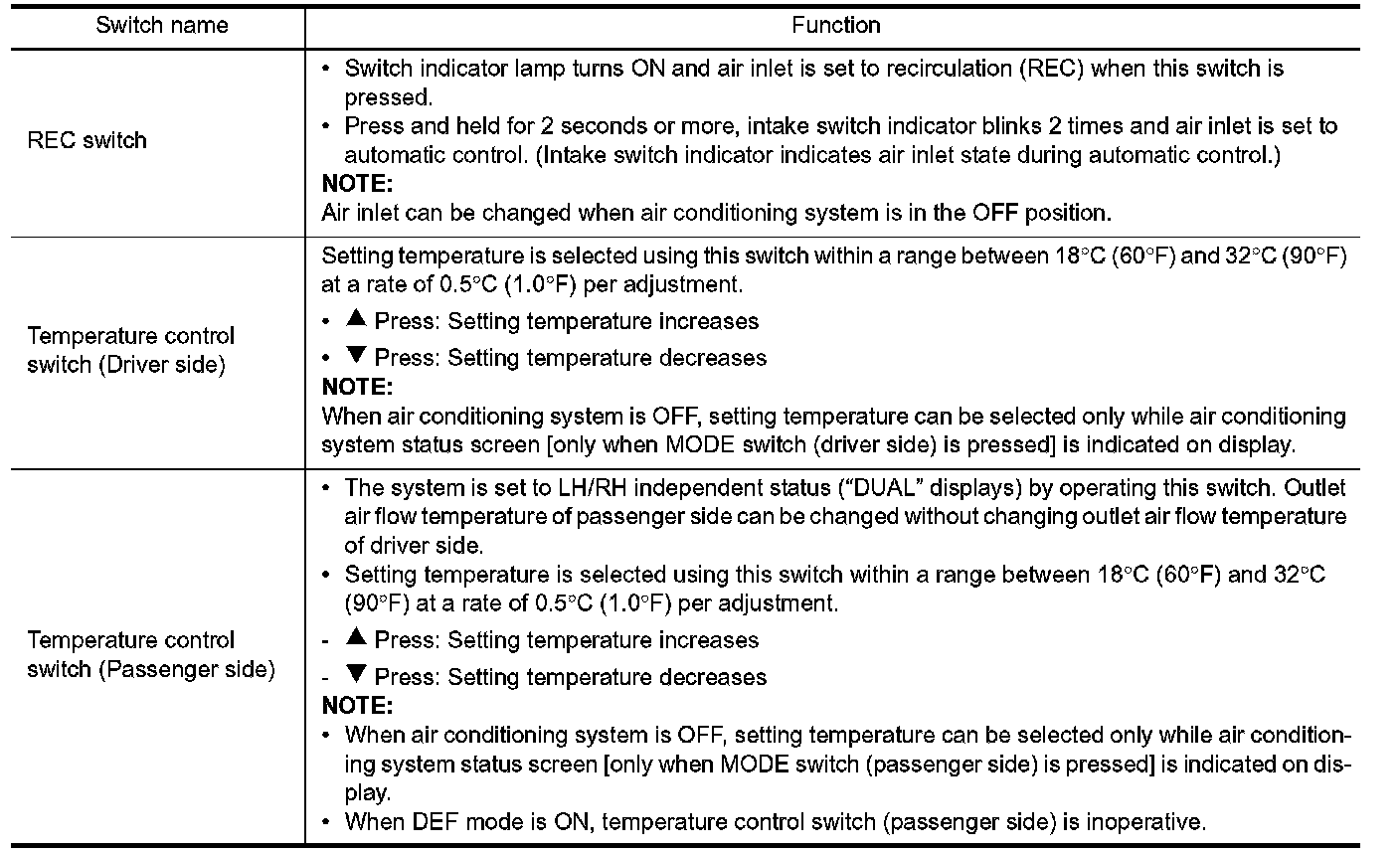

Switch Operation
