Inspection

SPARK PLUG


Inspection


INSPECTION AFTER REMOVAL
Use the standard type spark plug for normal condition.

Spark plug (Standard type) : Refer to Spark Plug Gap


CAUTION:





- Never drop or shock spark plug.

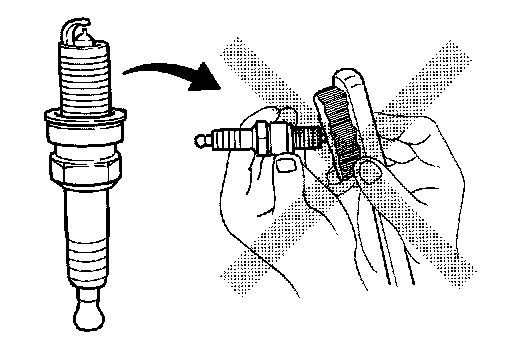

- Never use a wire brush for cleaning.
- If plug tip is covered with carbon, use spark plug cleaner to clean.

Cleaner air pressure
: Less than 588 kPa (6 kg/cm2, 85 psi)
Cleaning time
: Less than 20 seconds

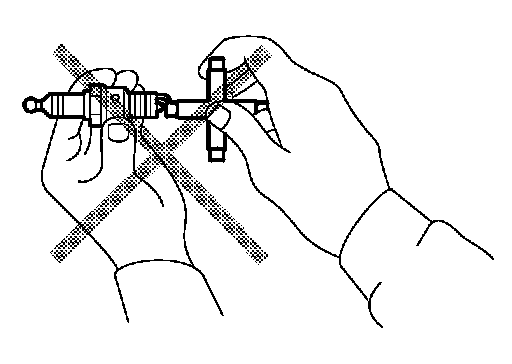

- Check and adjustment of plug gap is not required between change intervals.
