Wiring Diagram - Consult-III/GST Checking System





CONSULT-III/GST CHECKING SYSTEM

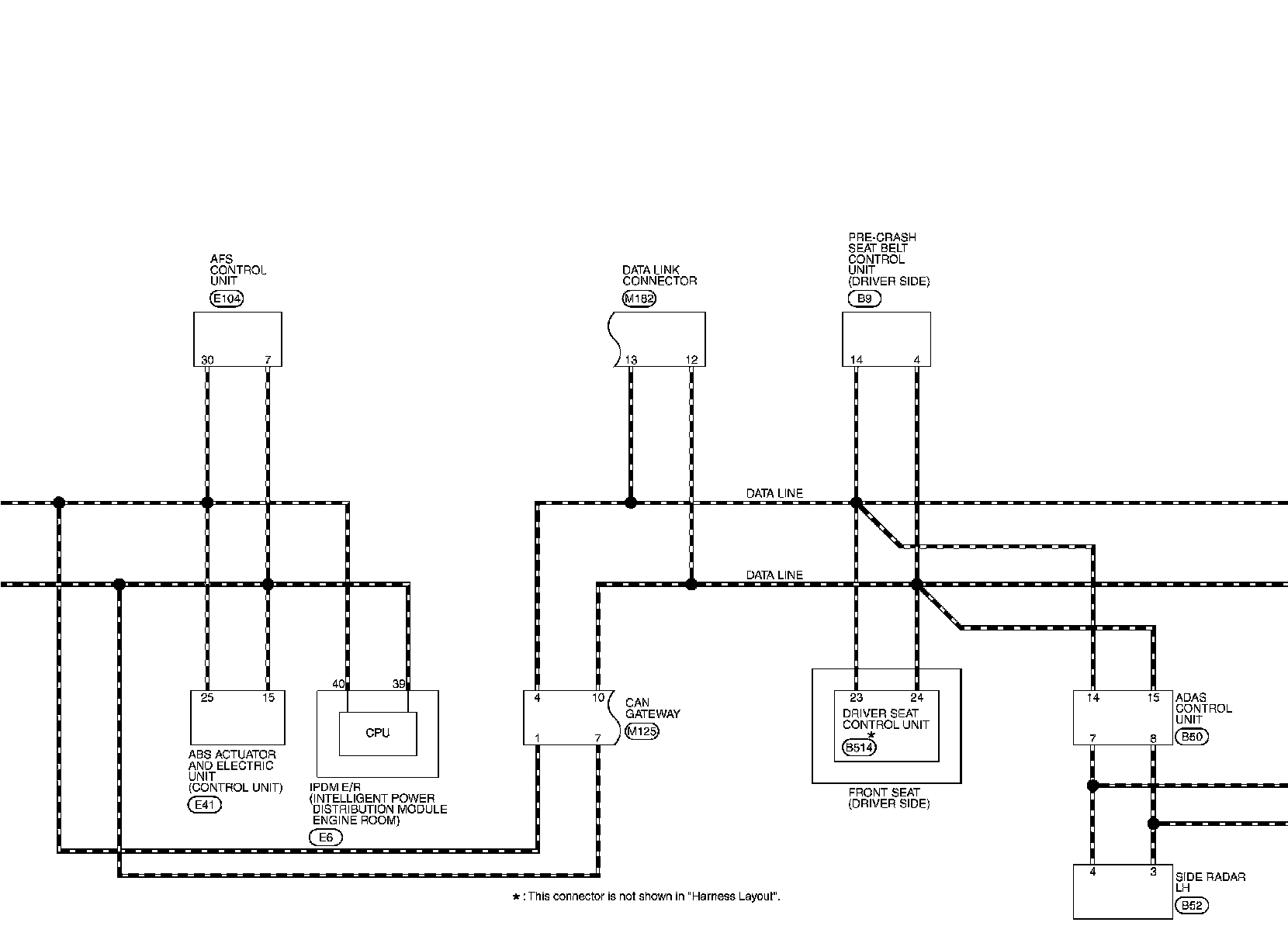

Wiring Diagram - CONSULT-III/GST CHECKING SYSTEM -

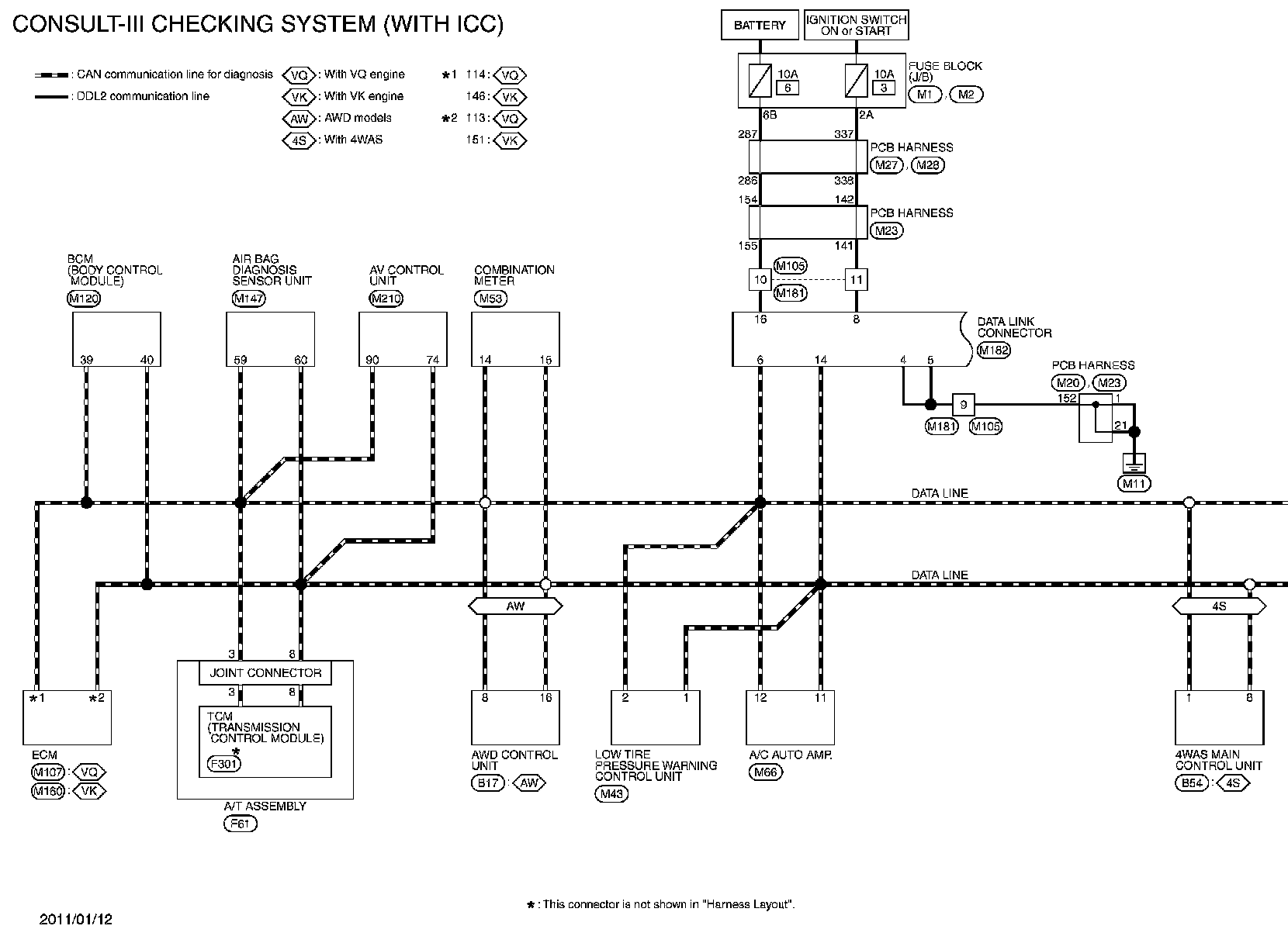

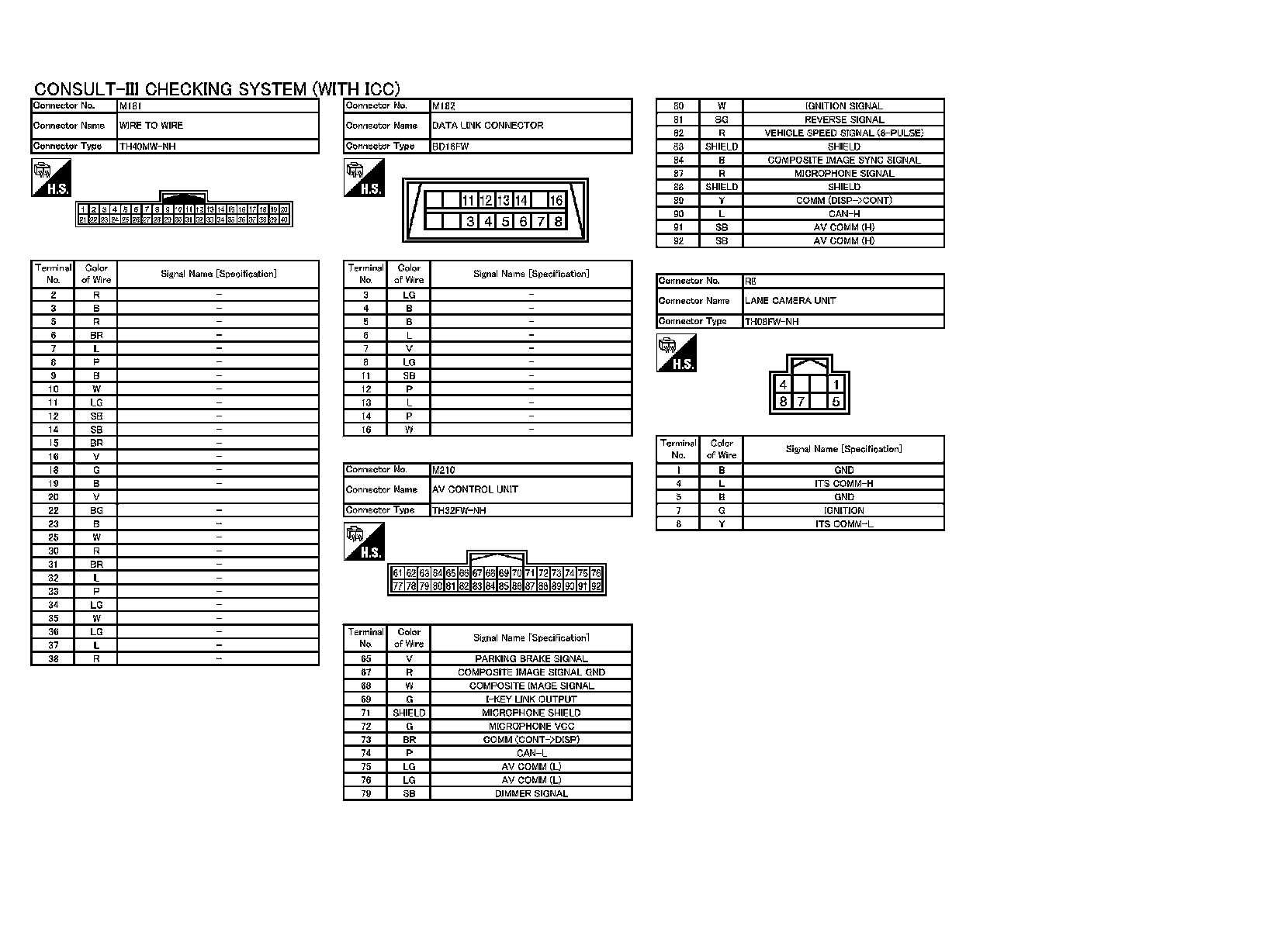

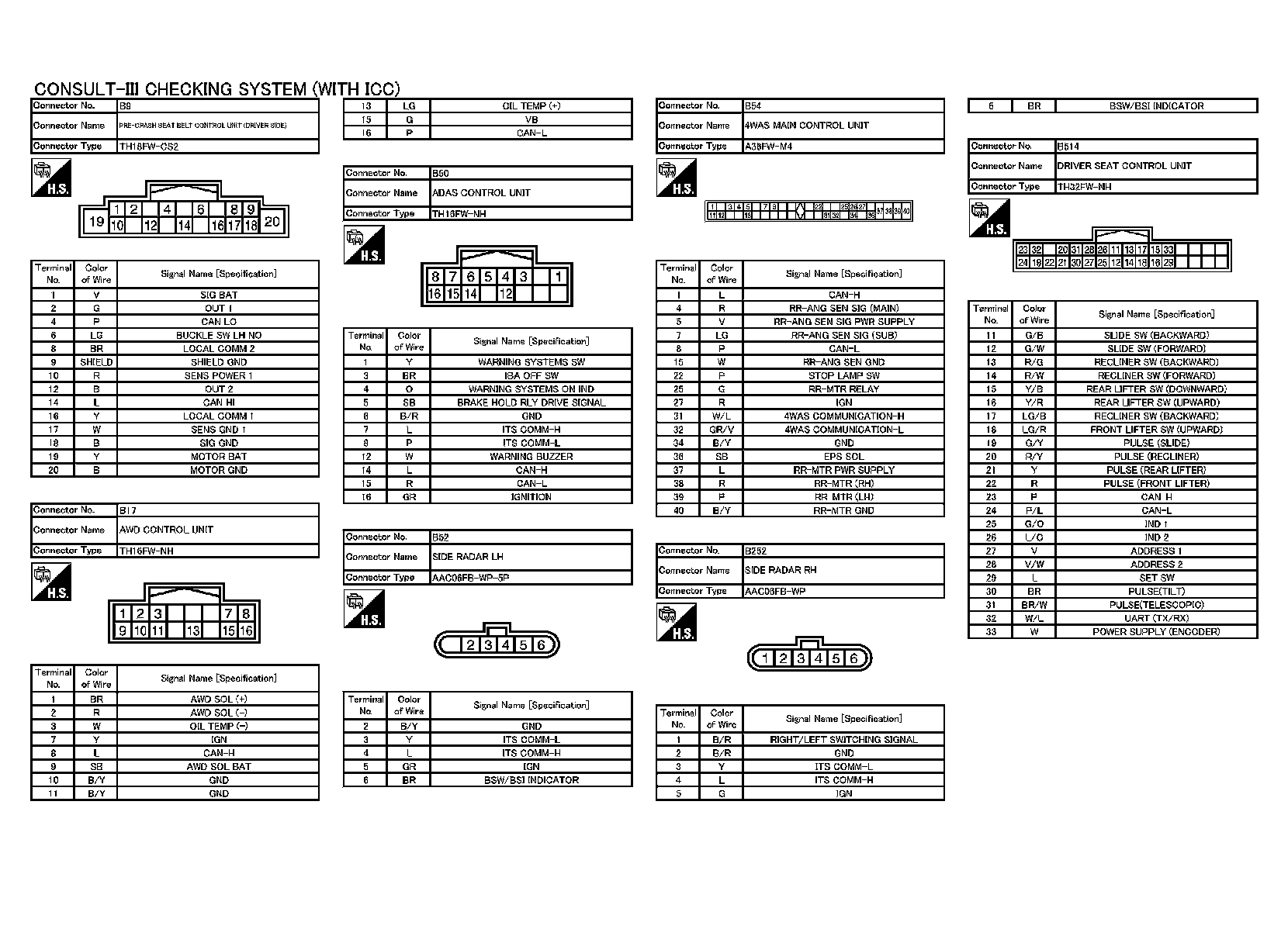

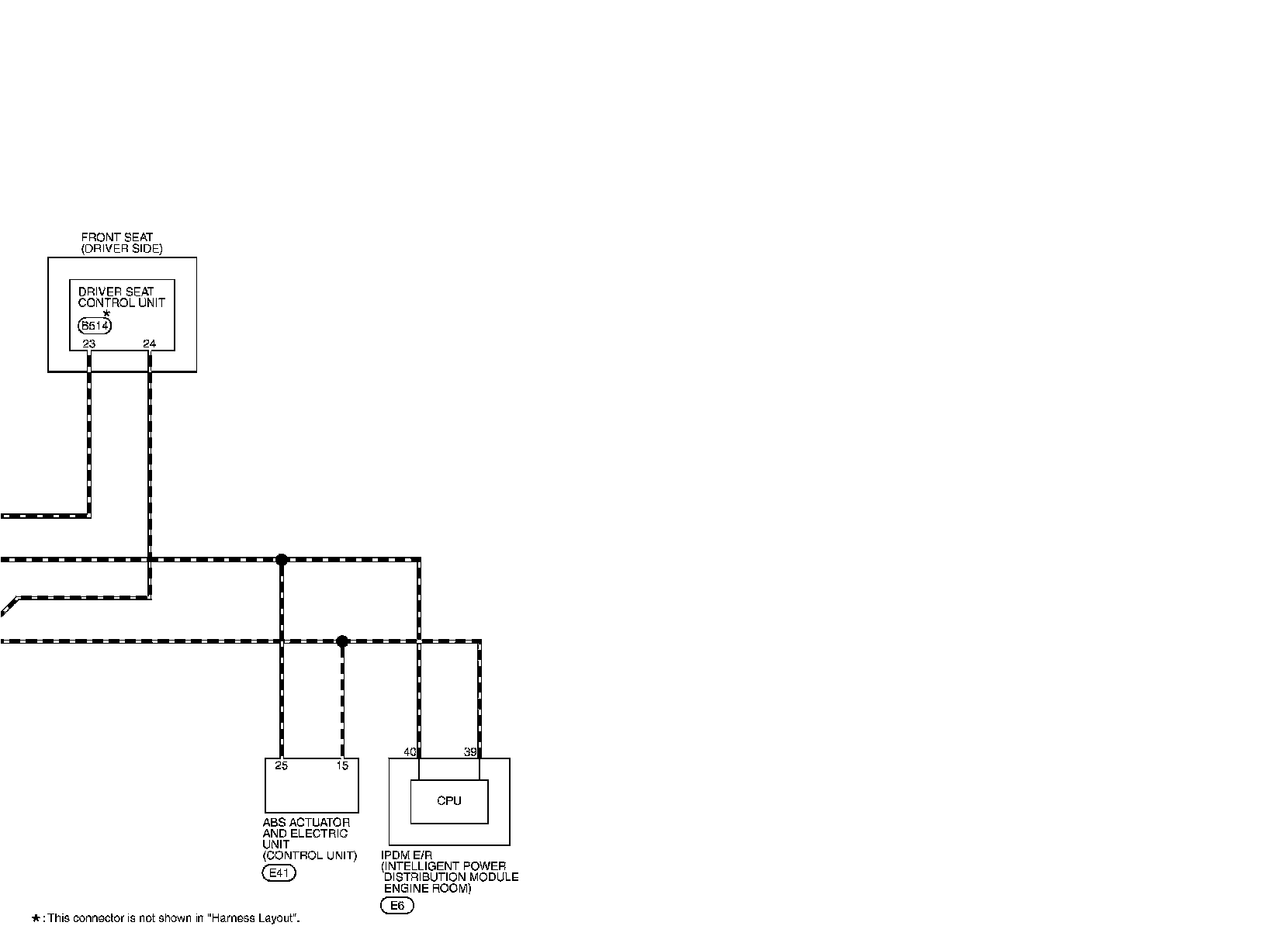

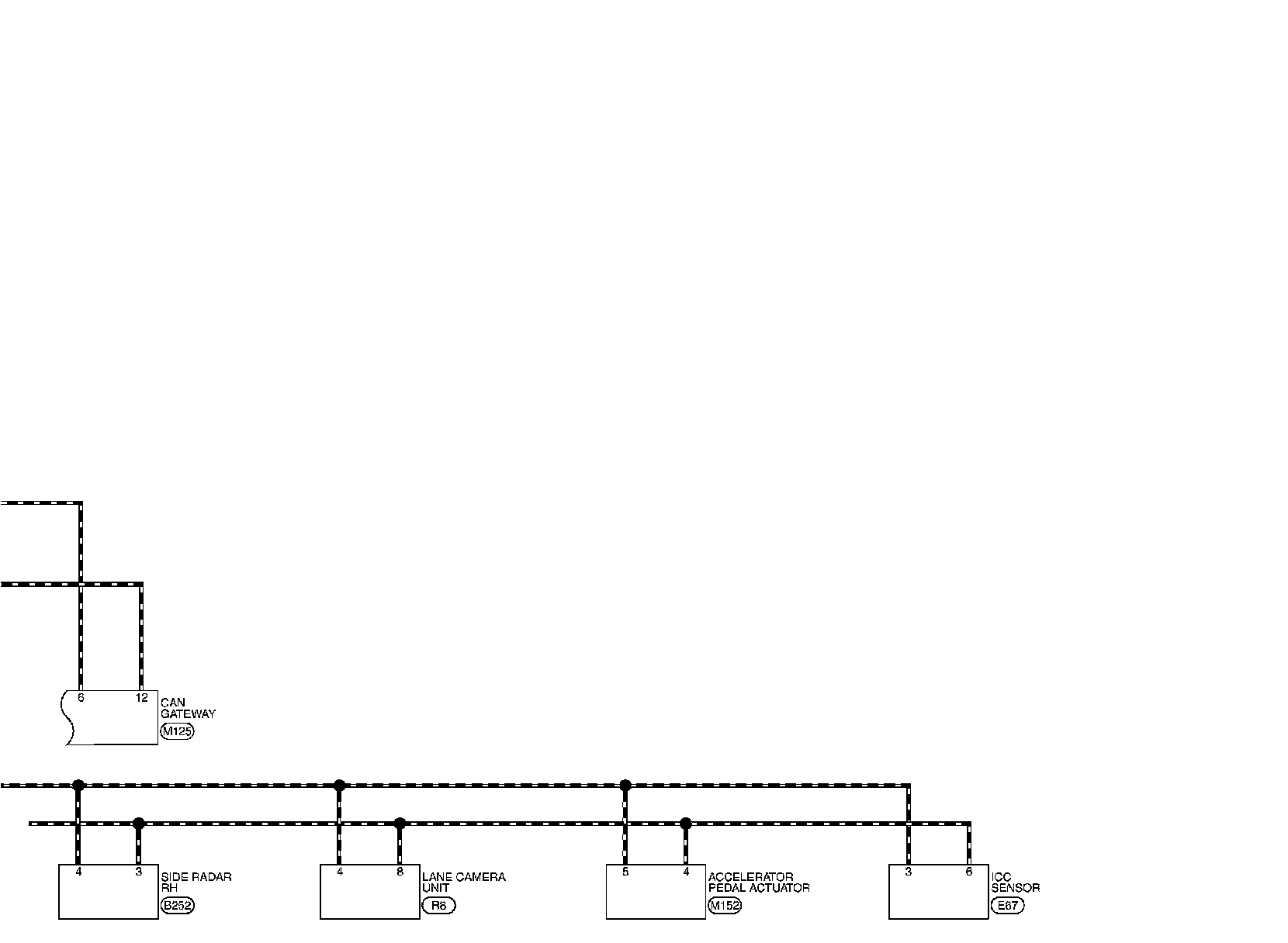

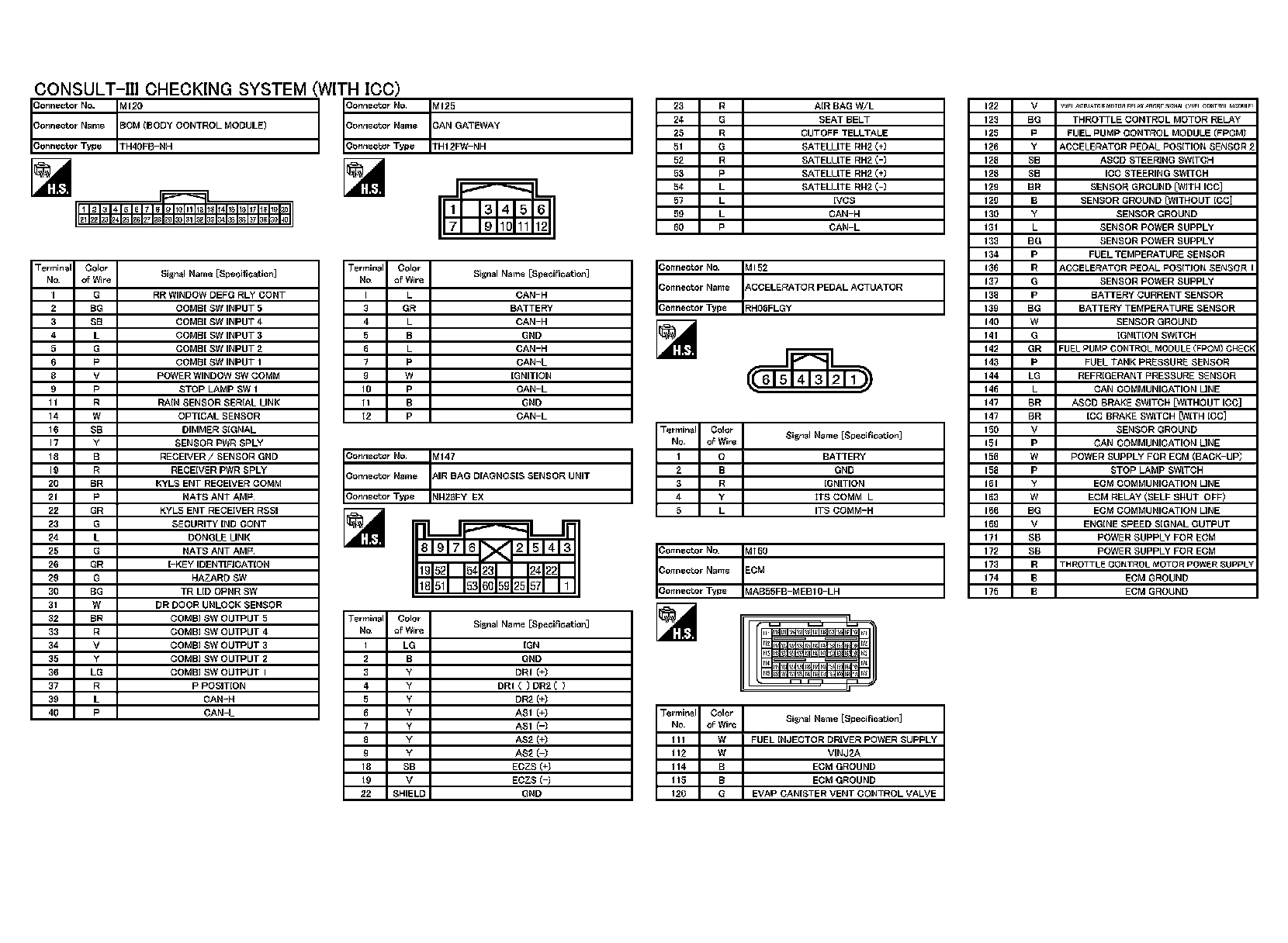

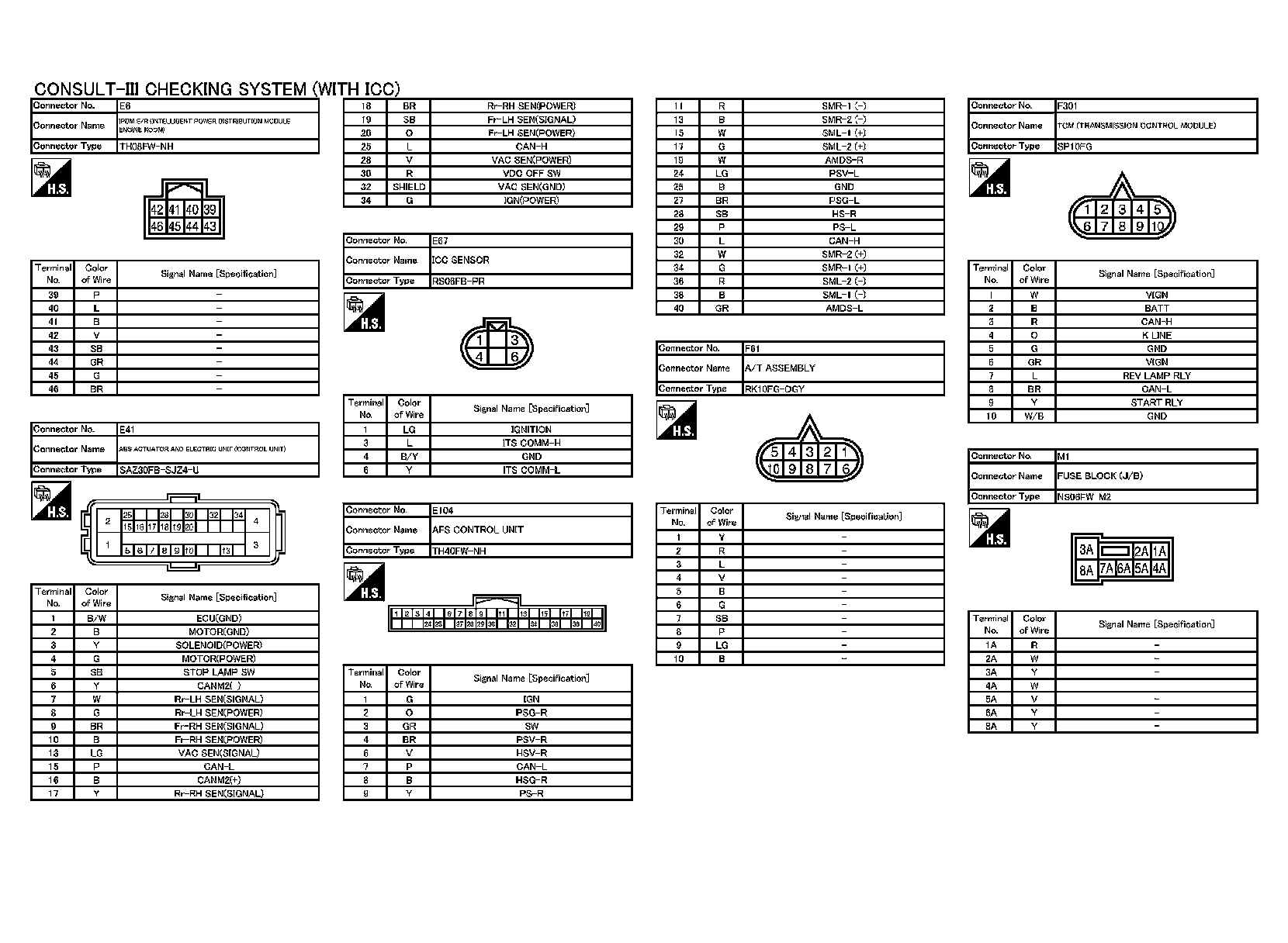

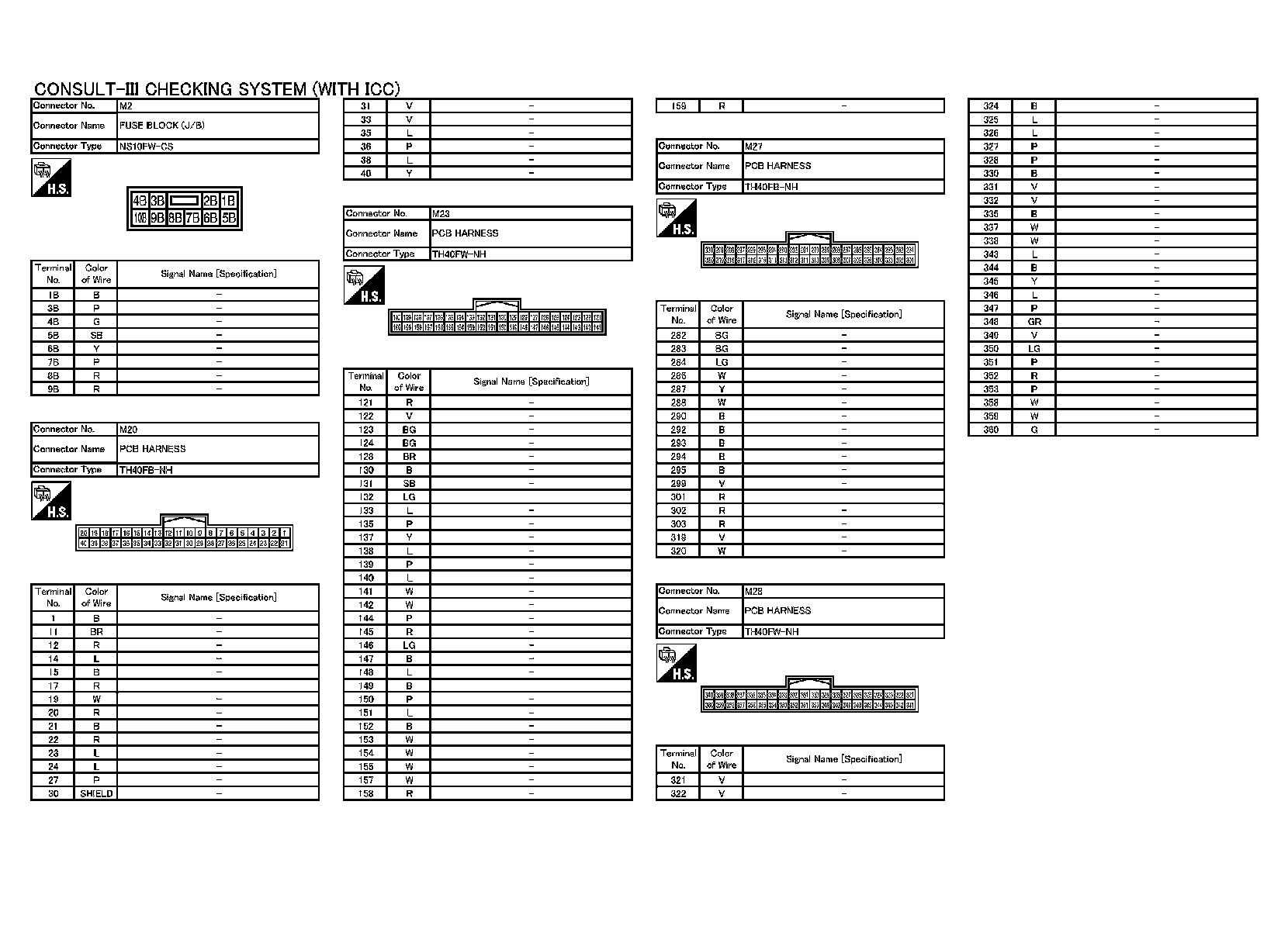

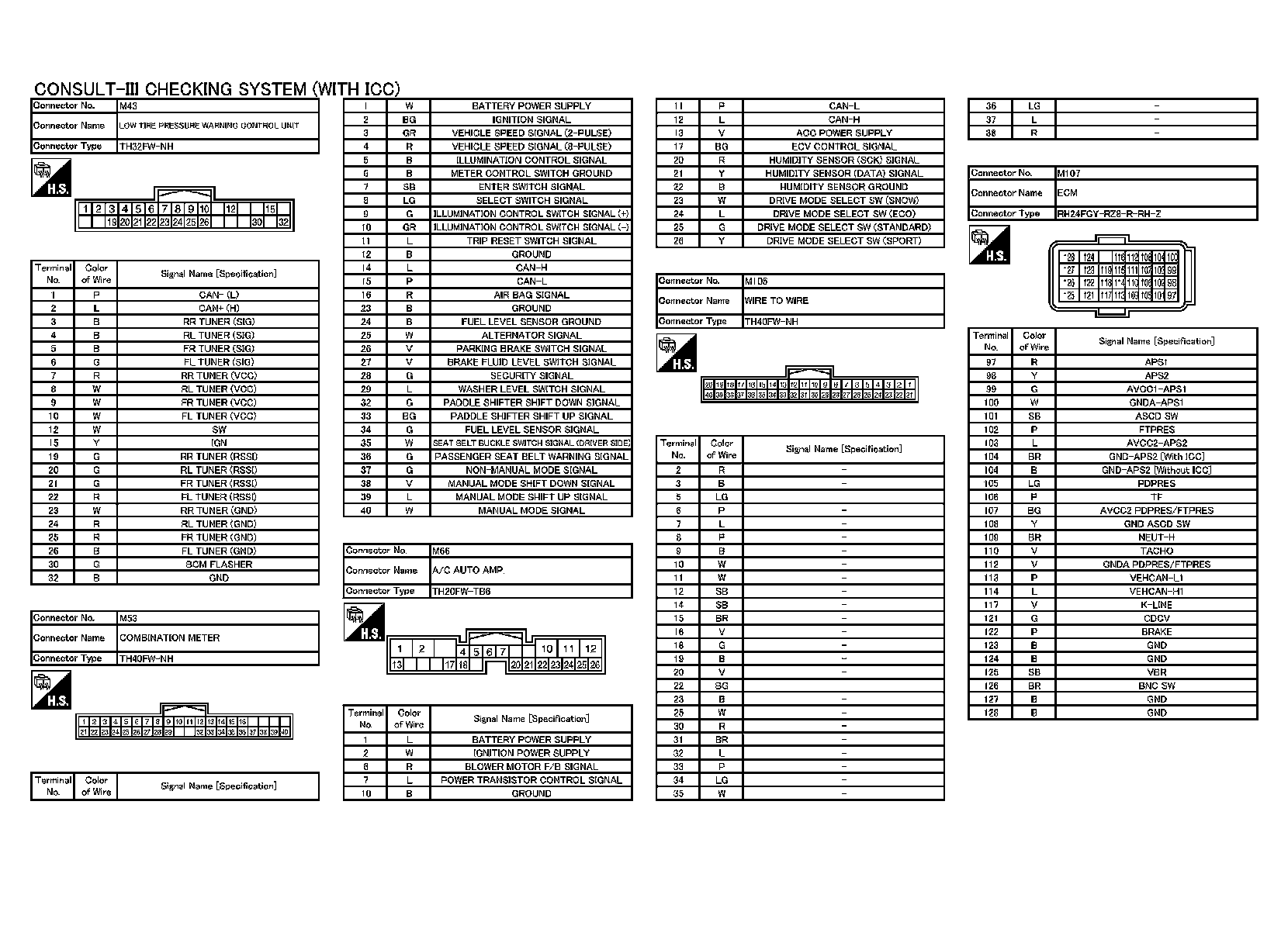

WITH ICC

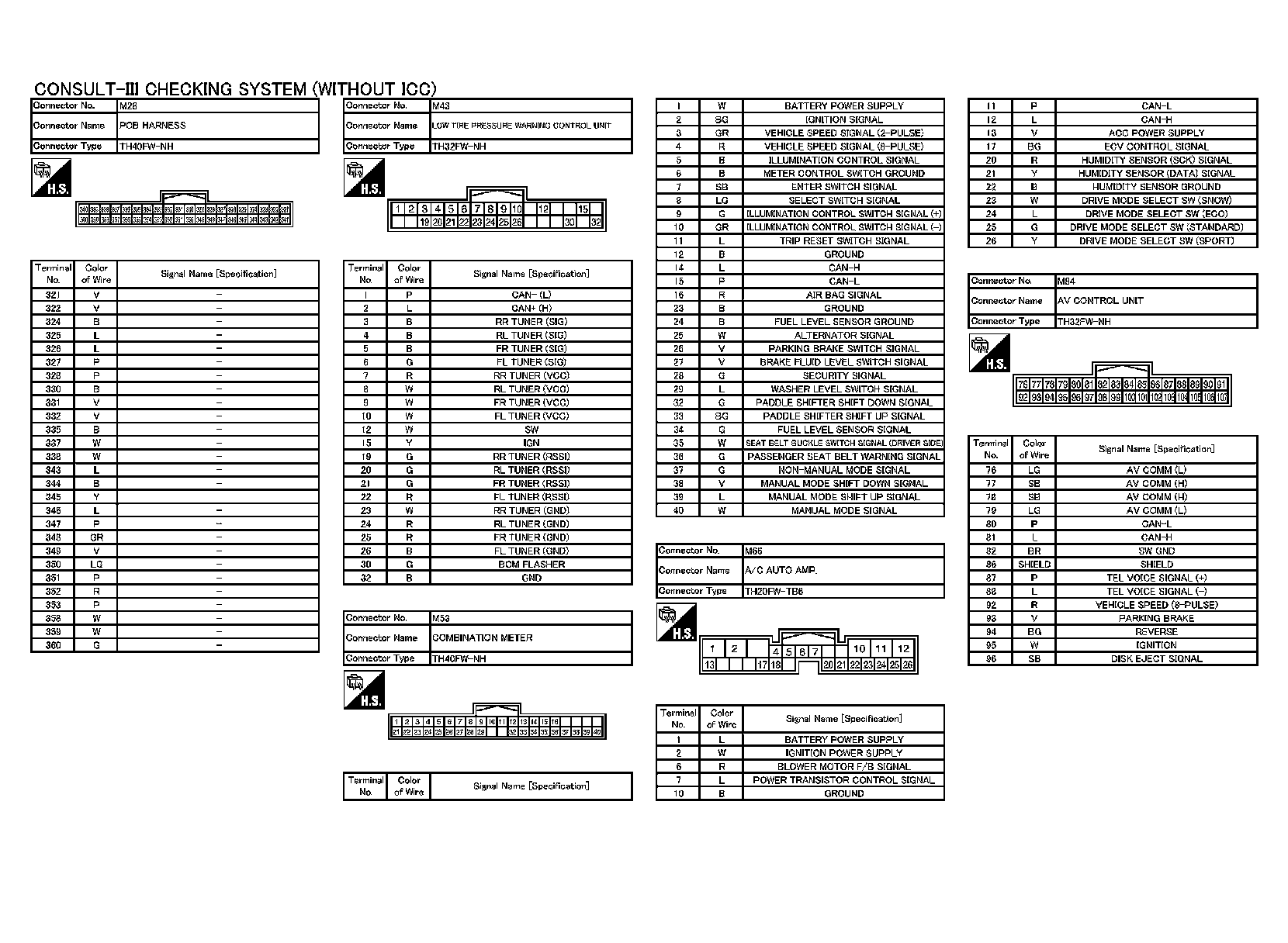

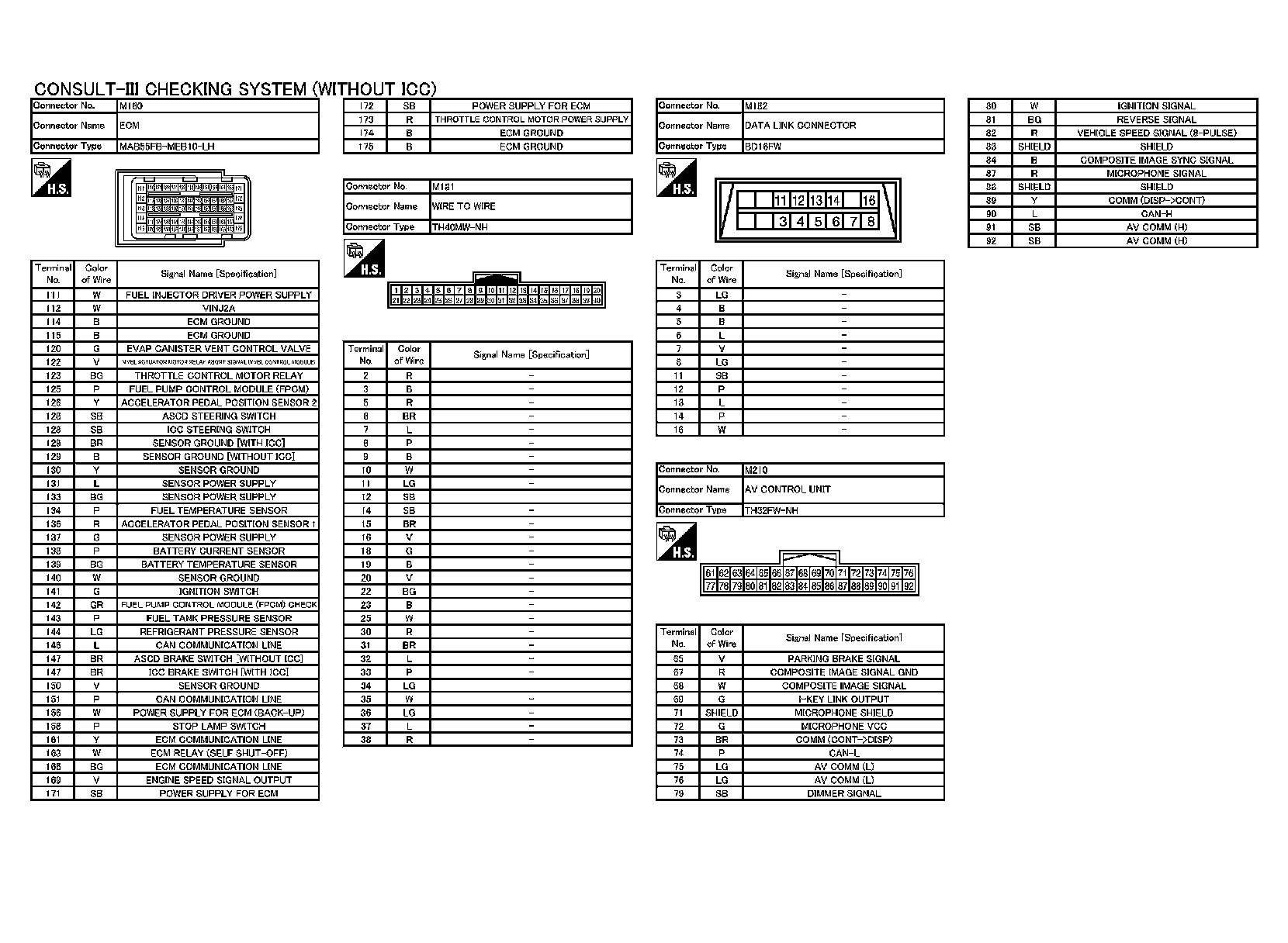

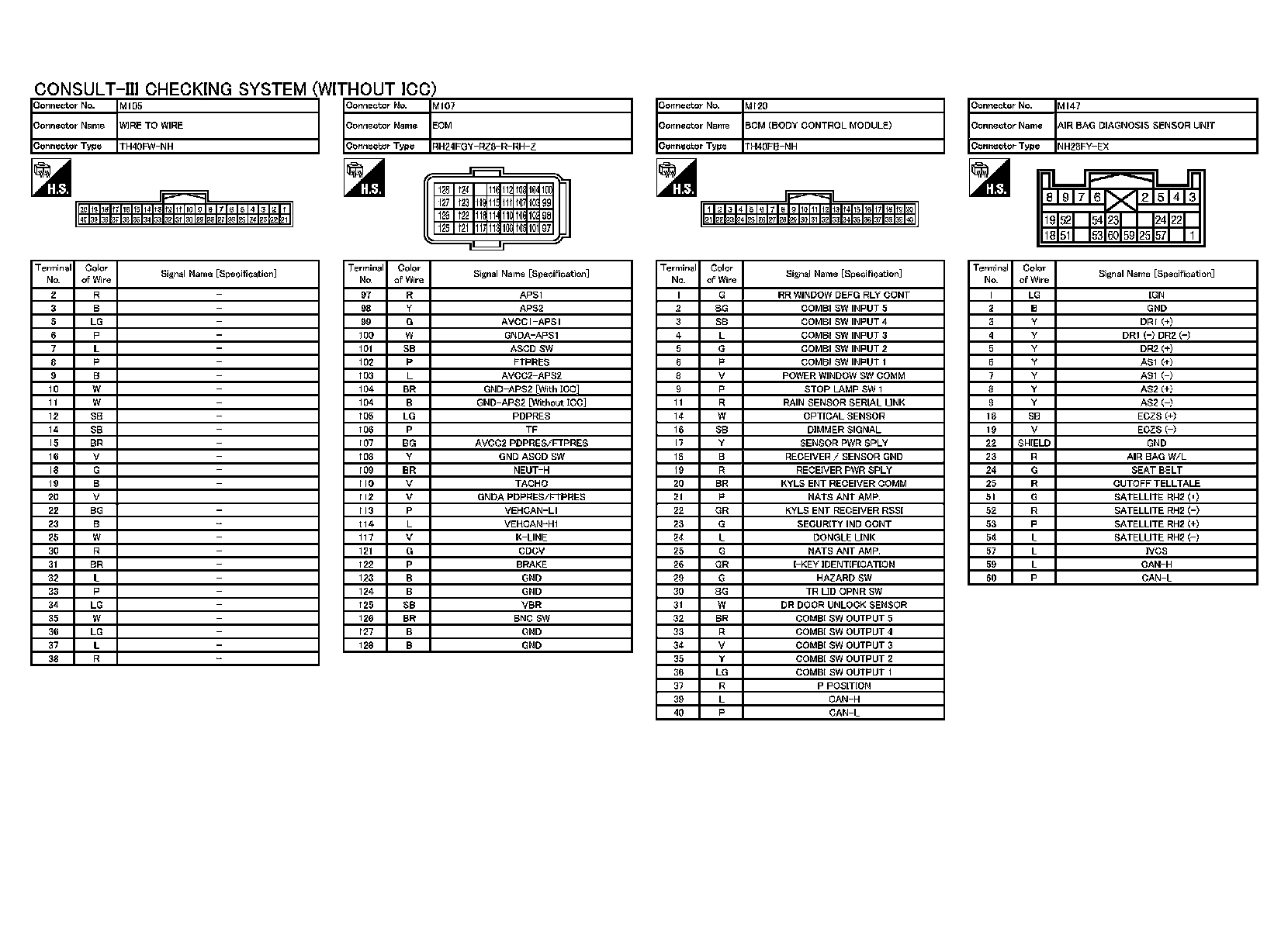

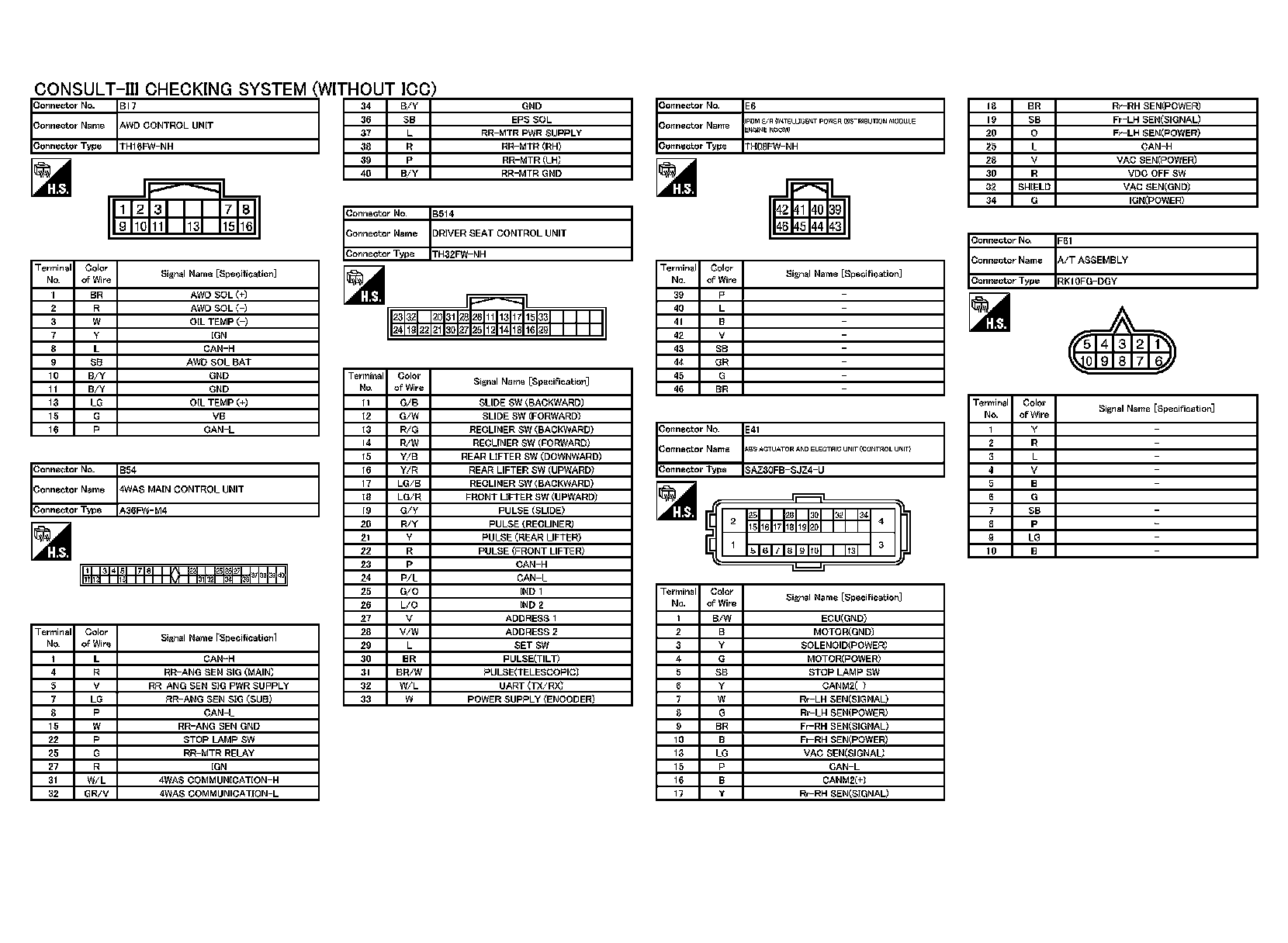

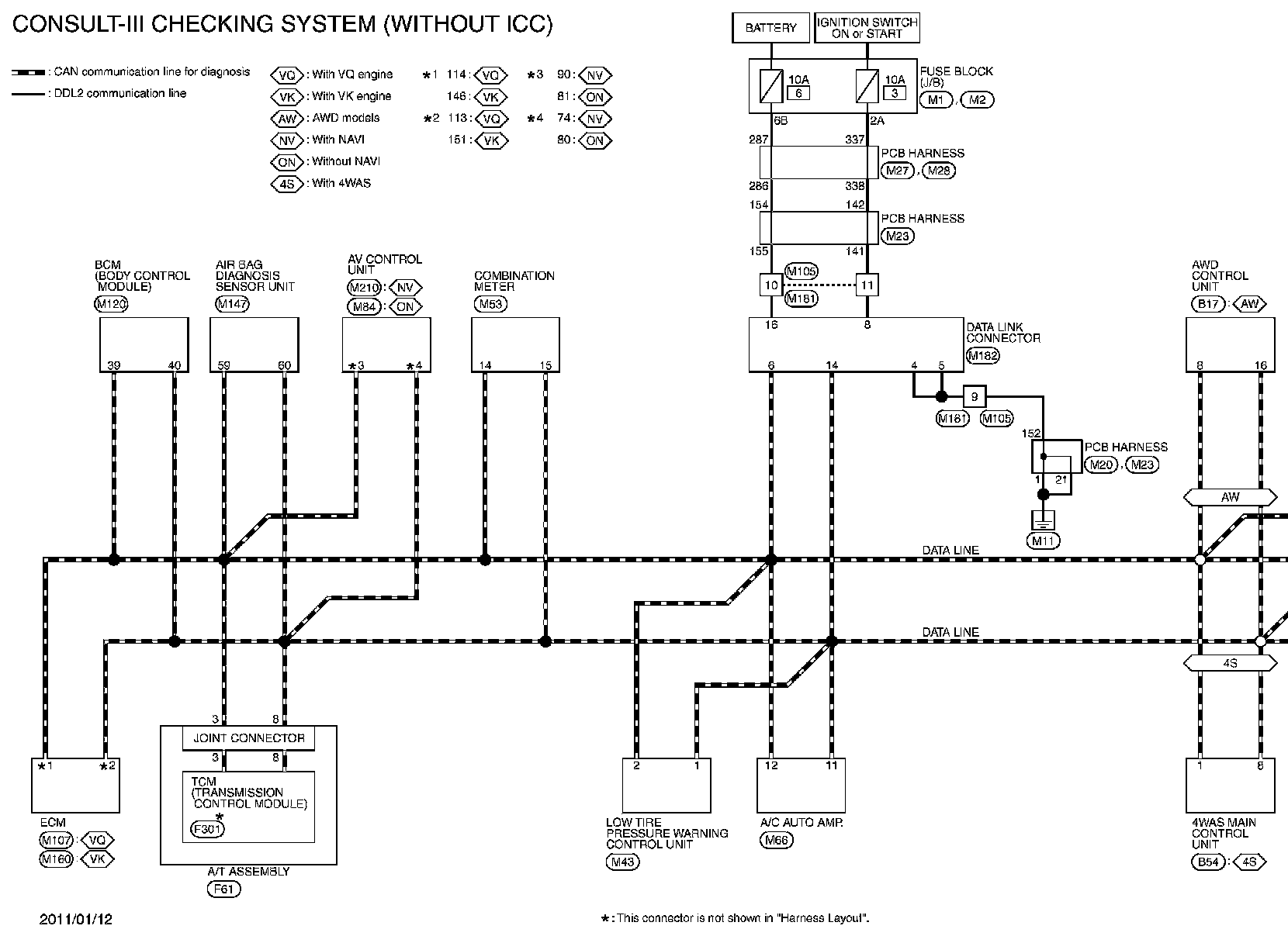

WITHOUT ICC
