ADAS Control Unit





ADAS CONTROL UNIT


Reference Value

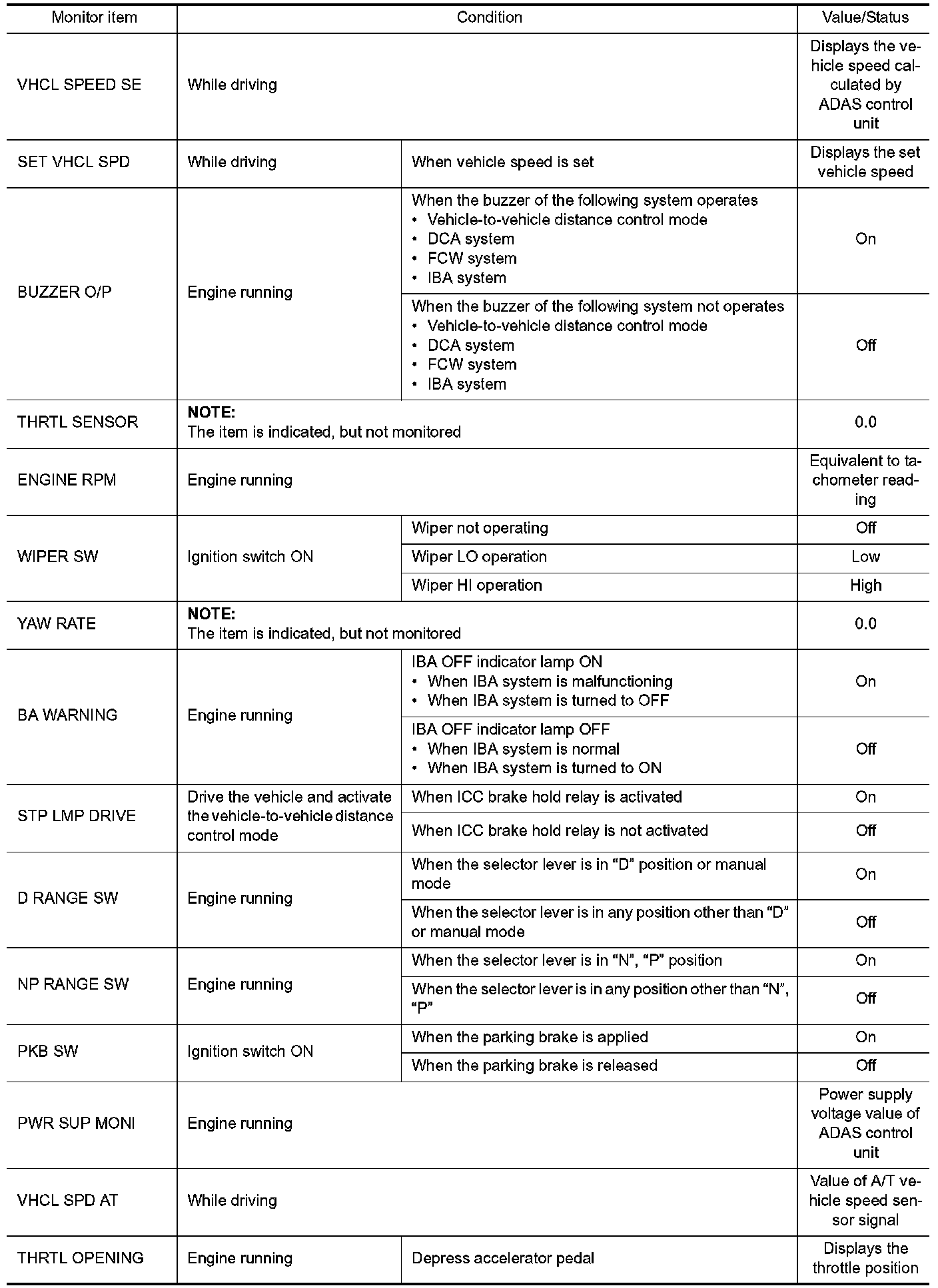

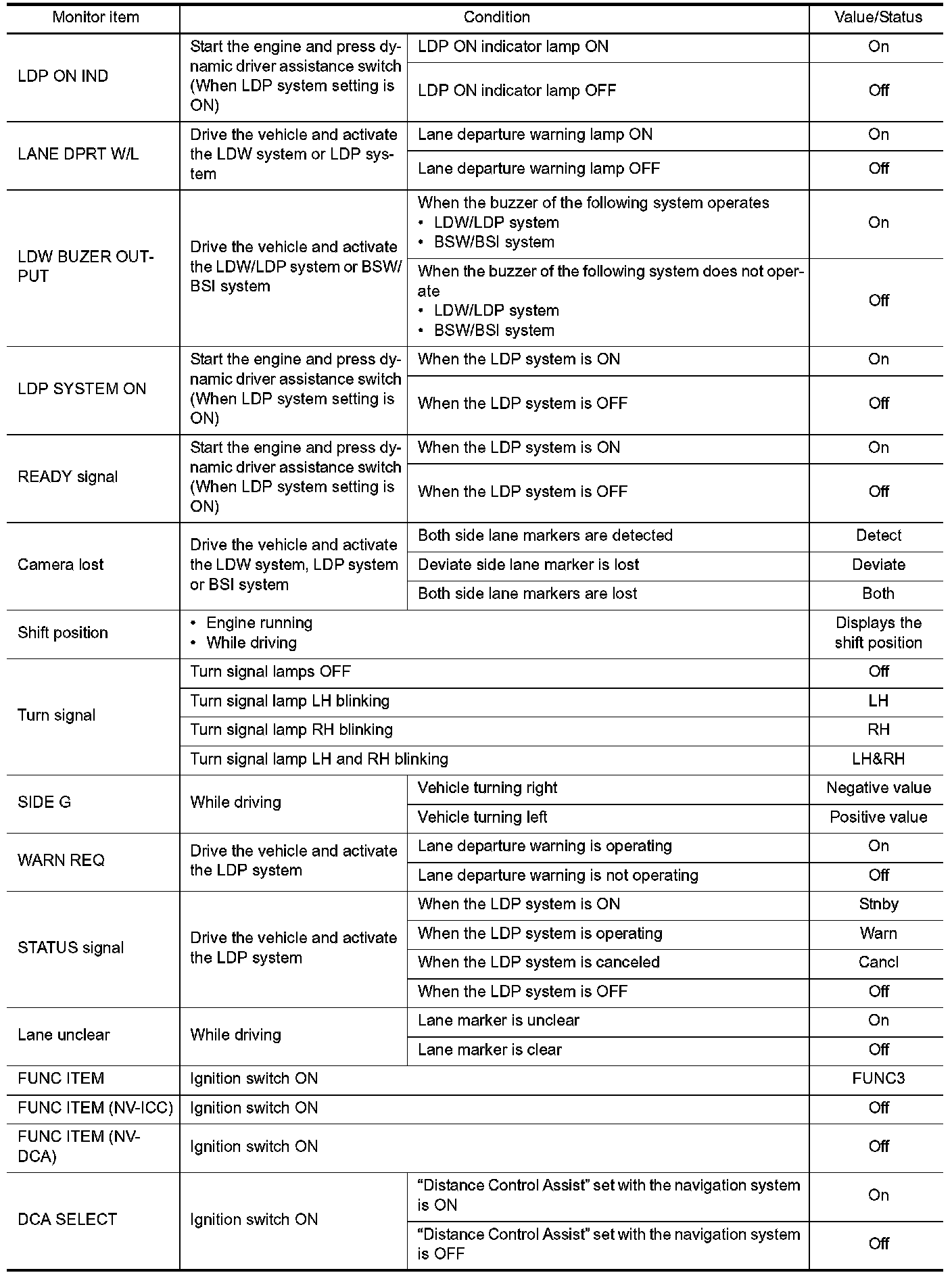

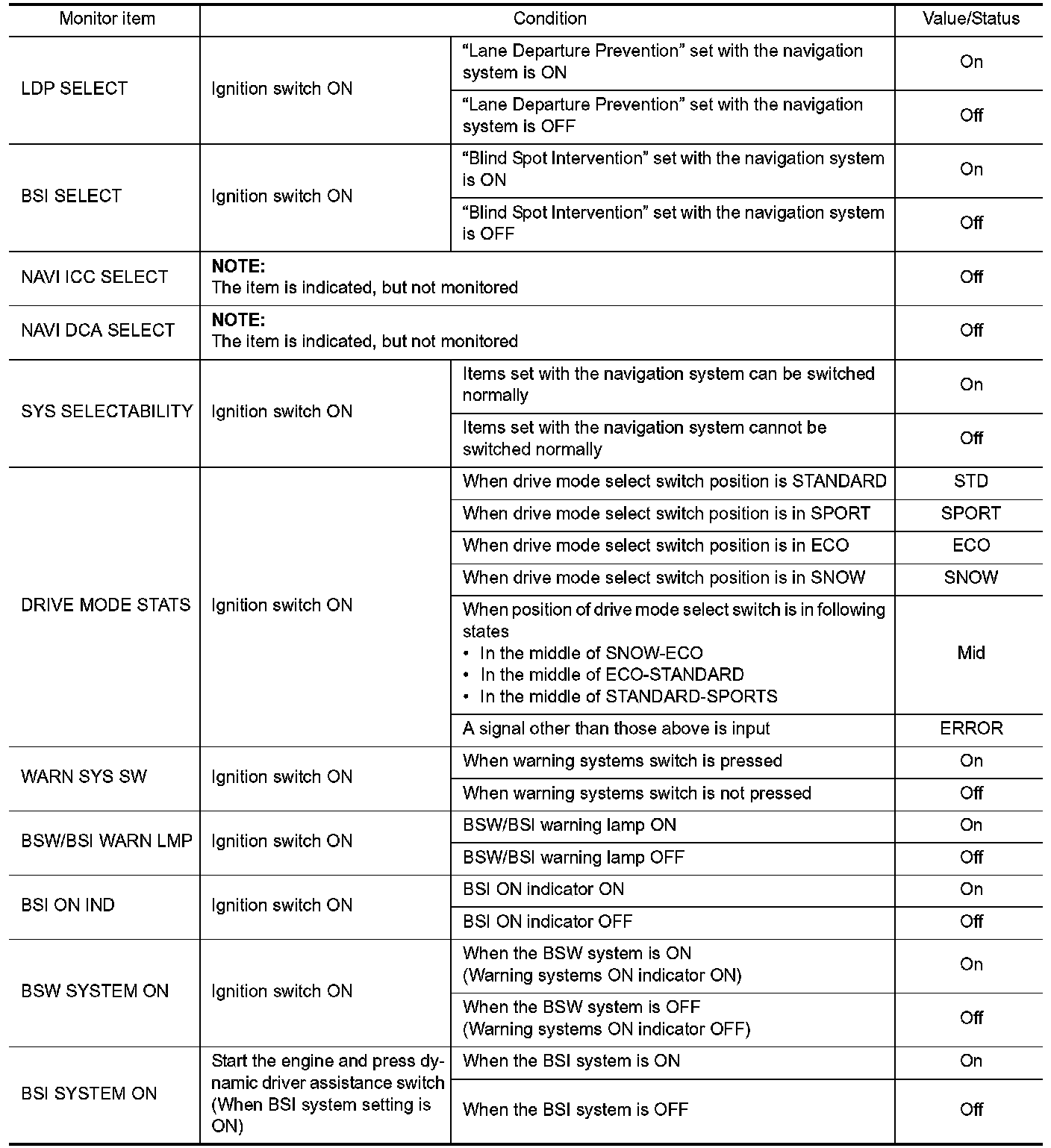

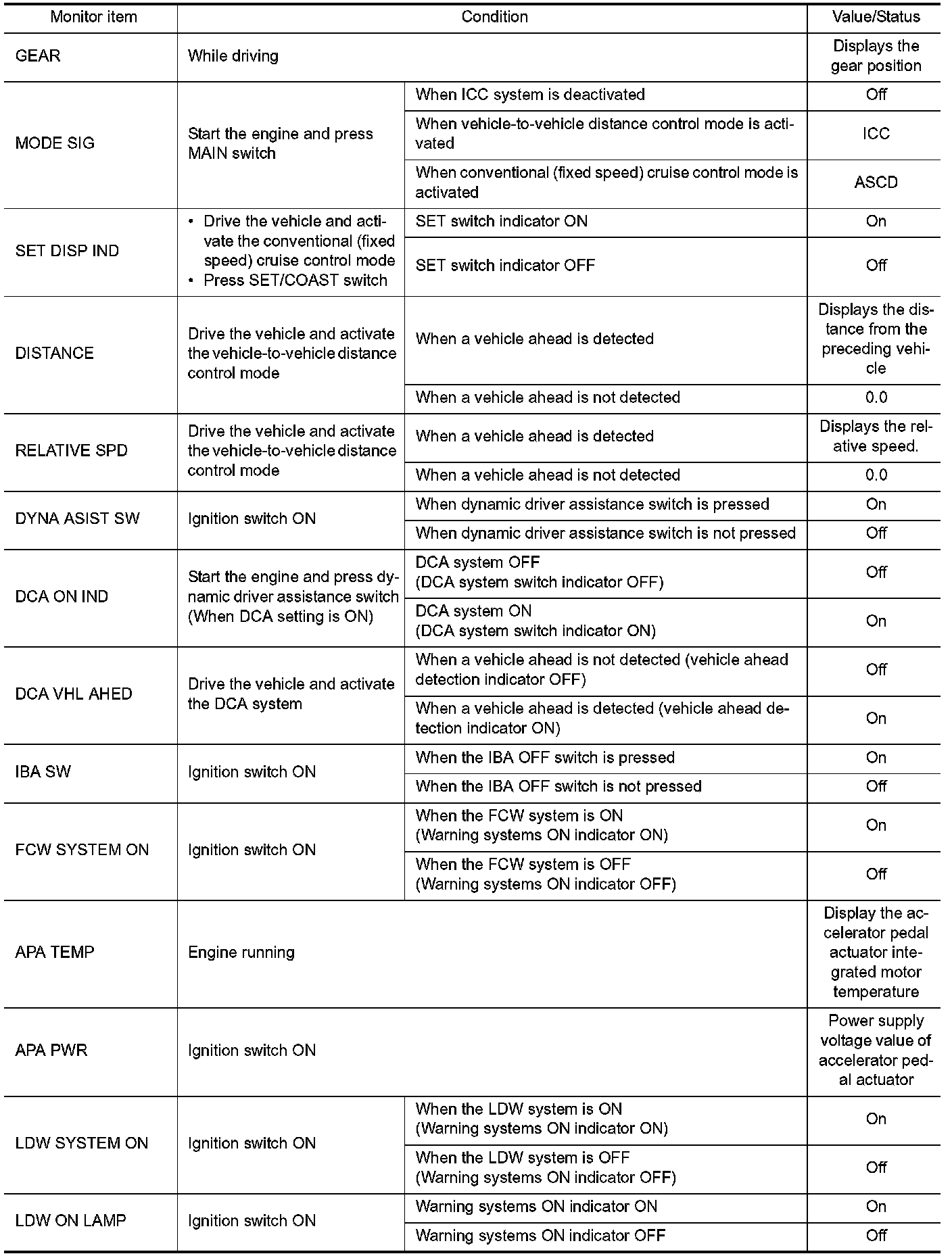

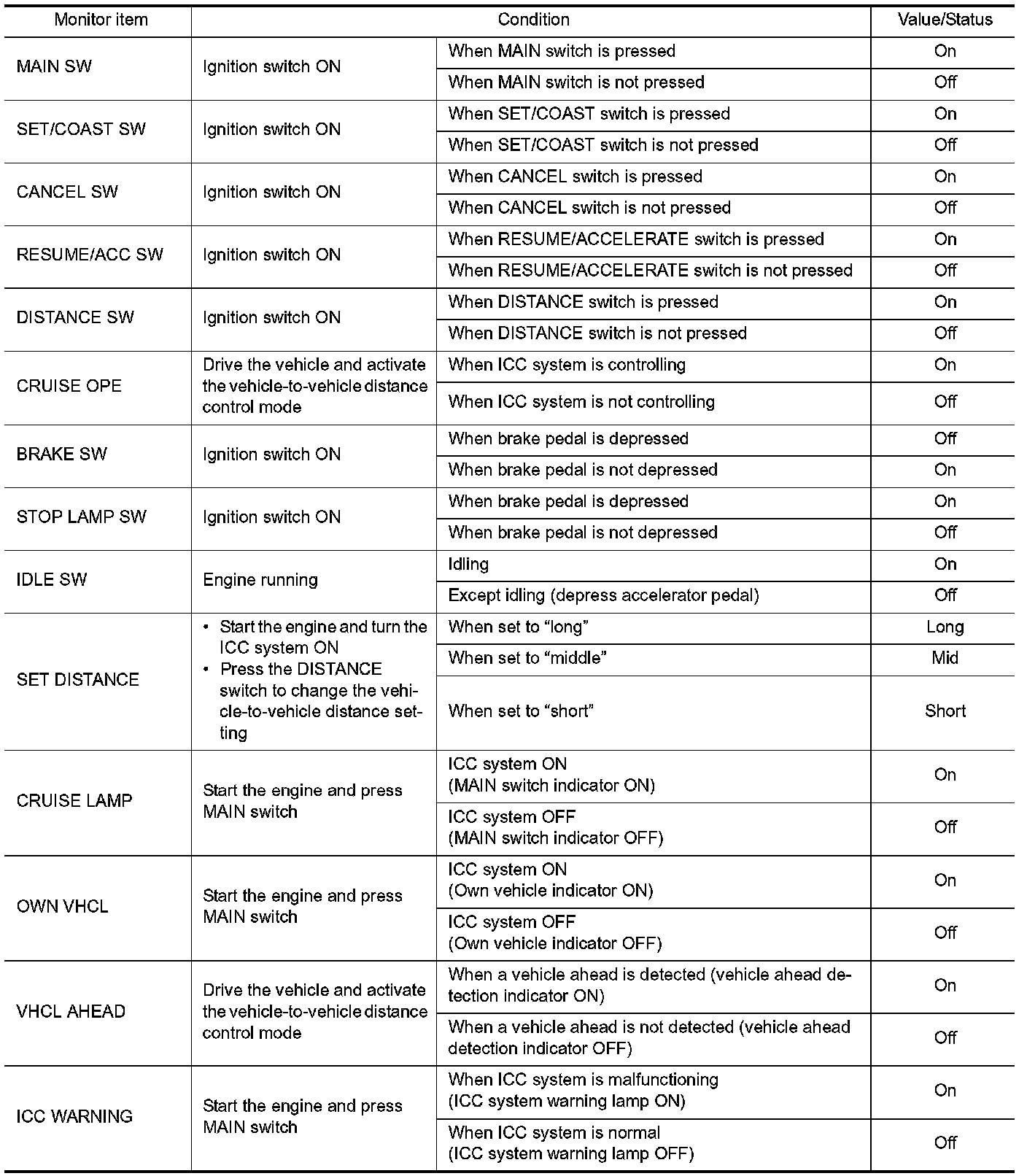

VALUES ON THE DIAGNOSIS TOOL

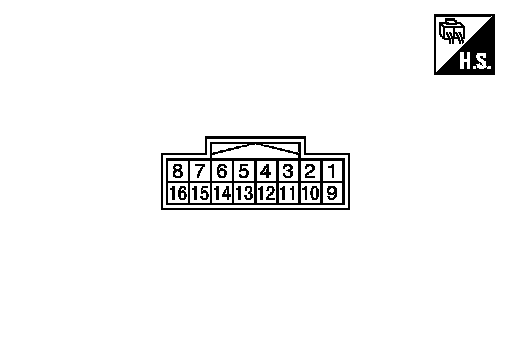

TERMINAL LAYOUT

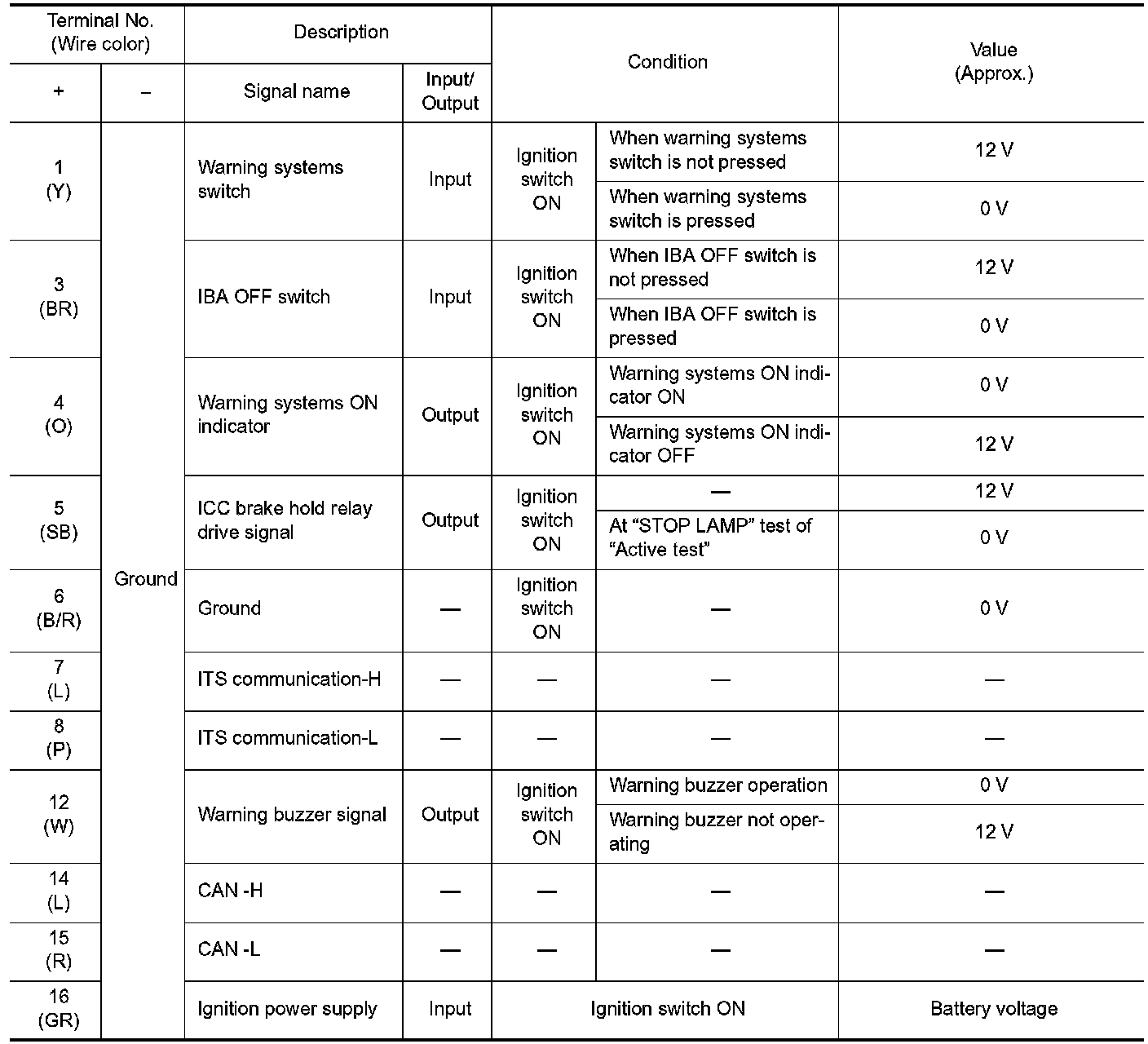

PHYSICAL VALUES
