Power Supply And Ground Circuit Sensor

POWER SUPPLY AND GROUND CIRCUIT:_:ICC SENSOR





Diagnosis Procedure
1.CHECK ICC SENSOR POWER SUPPLY CIRCUIT

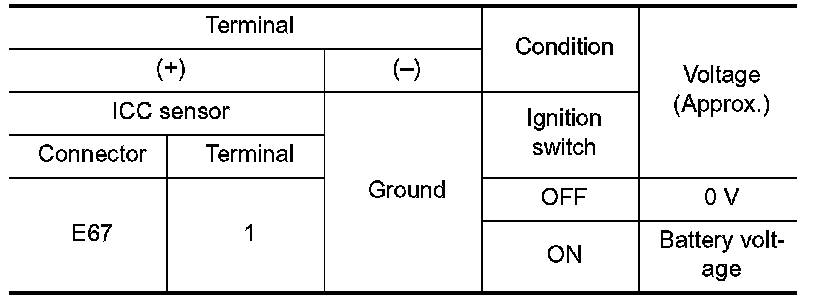

Check voltage between ICC sensor harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - Repair the ICC sensor power supply circuit.
2.CHECK ICC SENSOR GROUND CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect the ICC sensor connector.

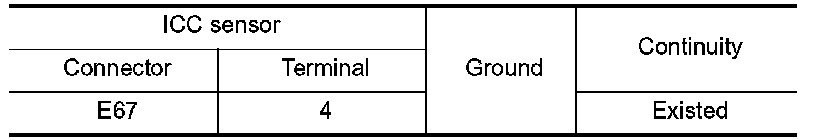

3. Check for continuity between ICC sensor harness connector and ground.





Is the inspection result normal?
YES - INSPECTION END
NO - Repair the ICC sensor ground circuit.
