Inspection After Removal

BRAKE PEDAL


Inspection and Adjustment


INSPECTION AFTER REMOVAL
- Check for the following items and replace the brake pedal assembly if necessary.

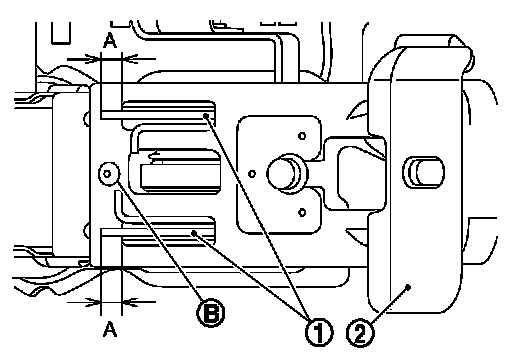

- Check the brake pedal upper rivet (made by aluminum) (B) for deformation.
- Check the brake pedal for bend, damage, and cracks on the welded parts.
- Check the lapping length (A) of sub-bracket (1) and slide plate (2).

A : 5.0 mm (0.197 in) or more

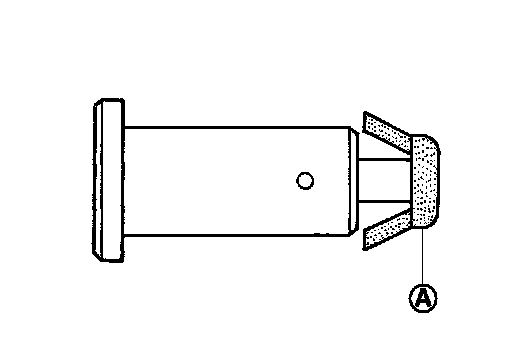

- Check clevis pin and plastic stopper (A) for damage and deformation. If any is found, replace clevis pin.

ADJUSTMENT AFTER INSTALLATION
- Perform the brake pedal adjustment after installing the brake pedal assembly. Inspection.
- Perform 4WAS front actuator neutral position adjustment (with 4WAS). Work Procedure (Pattern 2).
