Removal and Installation

FRONT SEAT


Removal and Installation


REMOVAL

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
1. Remove the headrest.
2. Remove the front leg cover.

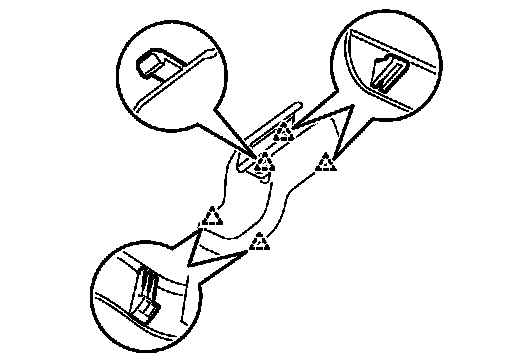

a. Front outer leg cover
- Slide the seat to the rear most position.
- Pull front leg cover outer front clips upward to disengage.
- Slide front leg cover outer foreword to remove.

Triangle: Pawl

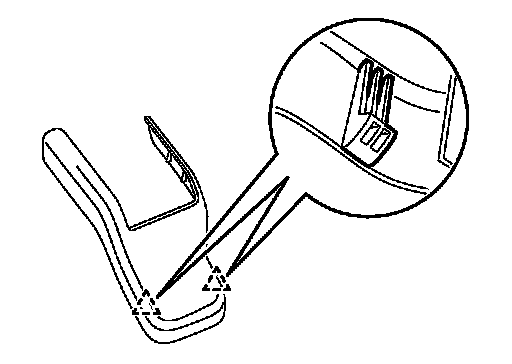

b. Front inner leg cover
- Slide seat to the rear most position.
- Pull front leg cover inner front pawls upward to disengage.
- Slide front leg cover foreword to remove.

Triangle: Pawl

3. Remove mounting bolts from the front of front seat.
4. Remove rear leg covers.





a. Rear outer leg cover
- Slide seat to the front most position.
- Pull rear leg cover outer rear pawls upward to disengage and remove.
- Open rear leg cover inner front, and then disengage and remove pawls.

Triangle: Pawl






b. Rear inner leg cover
- Slide the seat to the front most position.
- Pull rear leg cover inner rear pawls upward to disengage and remove.
- Open rear leg cover inner front, and then disengage and remove pawls.

Triangle: Pawl

5. Remove mounting bolts from the front seat rear side.
6. Set the seatback vertically.
7. Remove seat cushion lower harness connector and harness clamp.

CAUTION:
Before removal, turn ignition switch OFF, disconnect battery negative terminal and then wait for at lest 3 minutes.
8. Remove the front seat from the vehicle.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION
Note the following item, and then install in the reverse order of removal.

CAUTION:
Always fix the harness clamp in position.

NOTE:
Perform "Operation when disconnecting battery cable from negative terminal" after connecting the battery cable to the negative terminal. Description Special Repair Requirement Description, "ADDITIONAL SERVICE WHEN REMOVING BATTERY
NEGATIVE TERMINAL : Description".
