Exploded View





FRONT SEAT


Exploded View

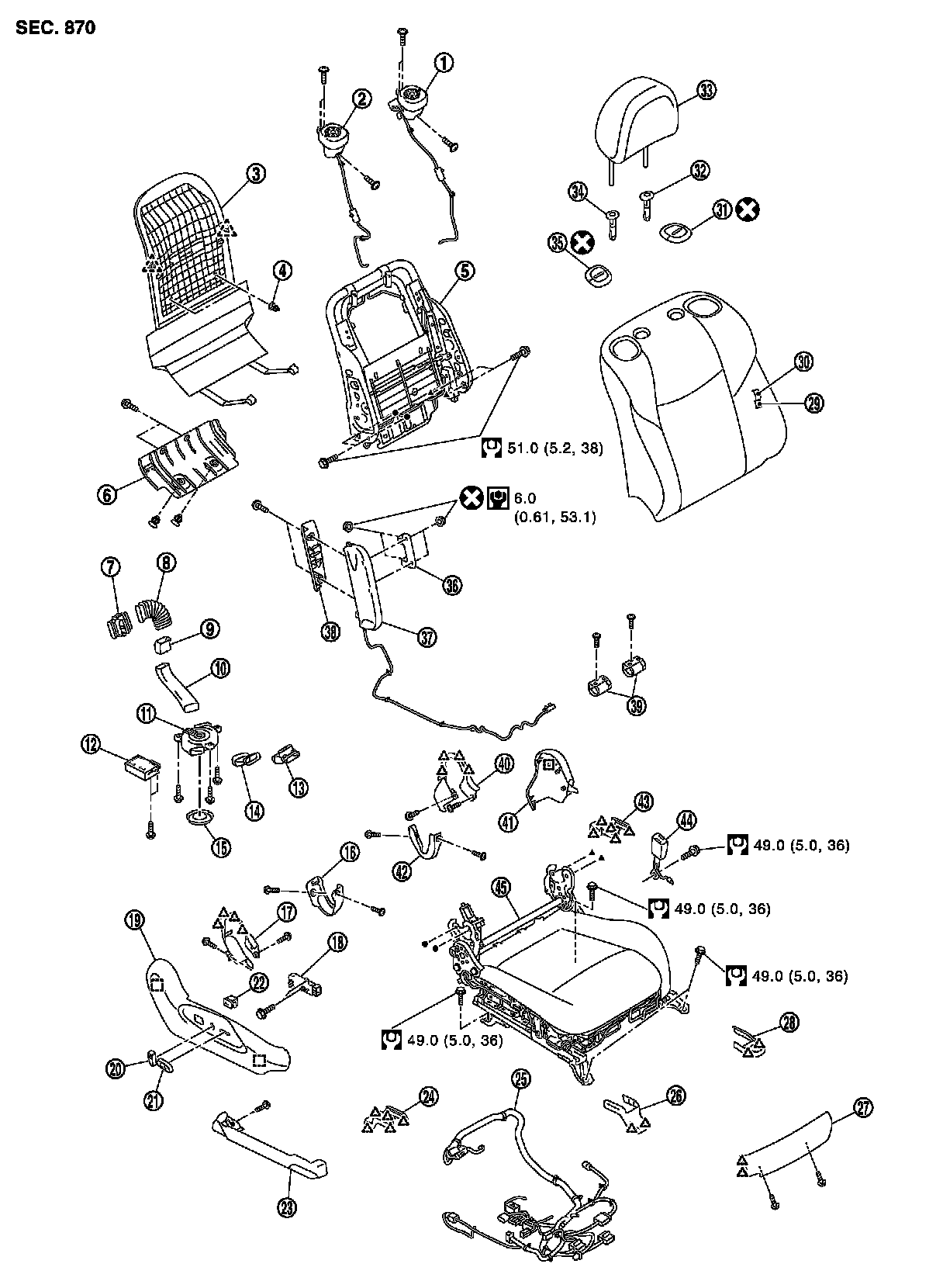

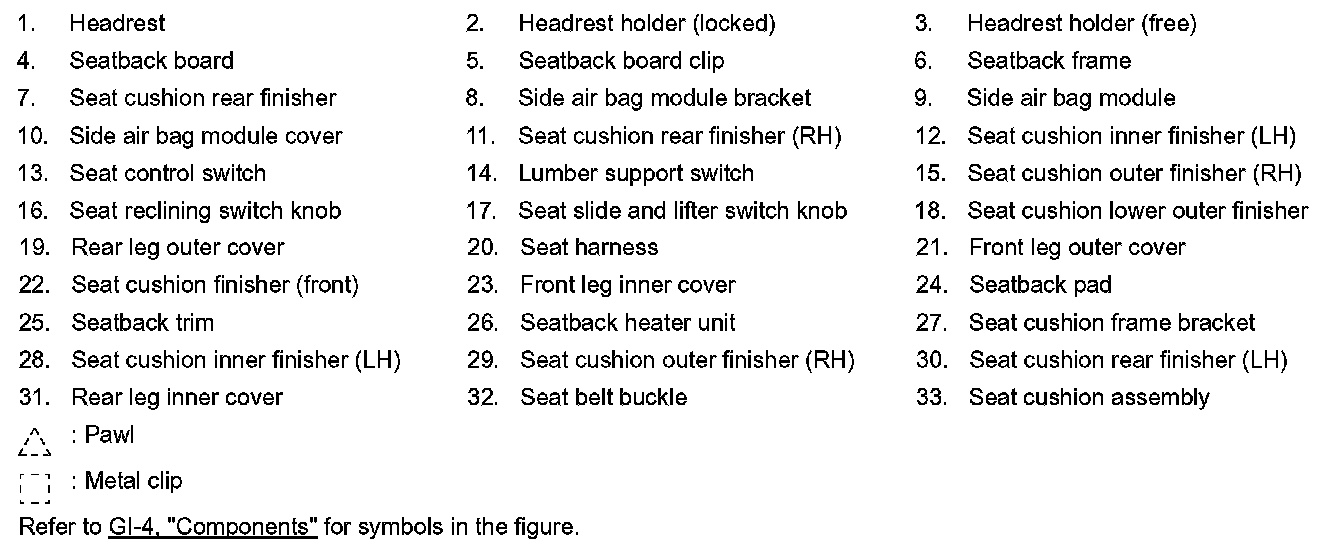

DRIVER SEAT WITH SEAT HEATER

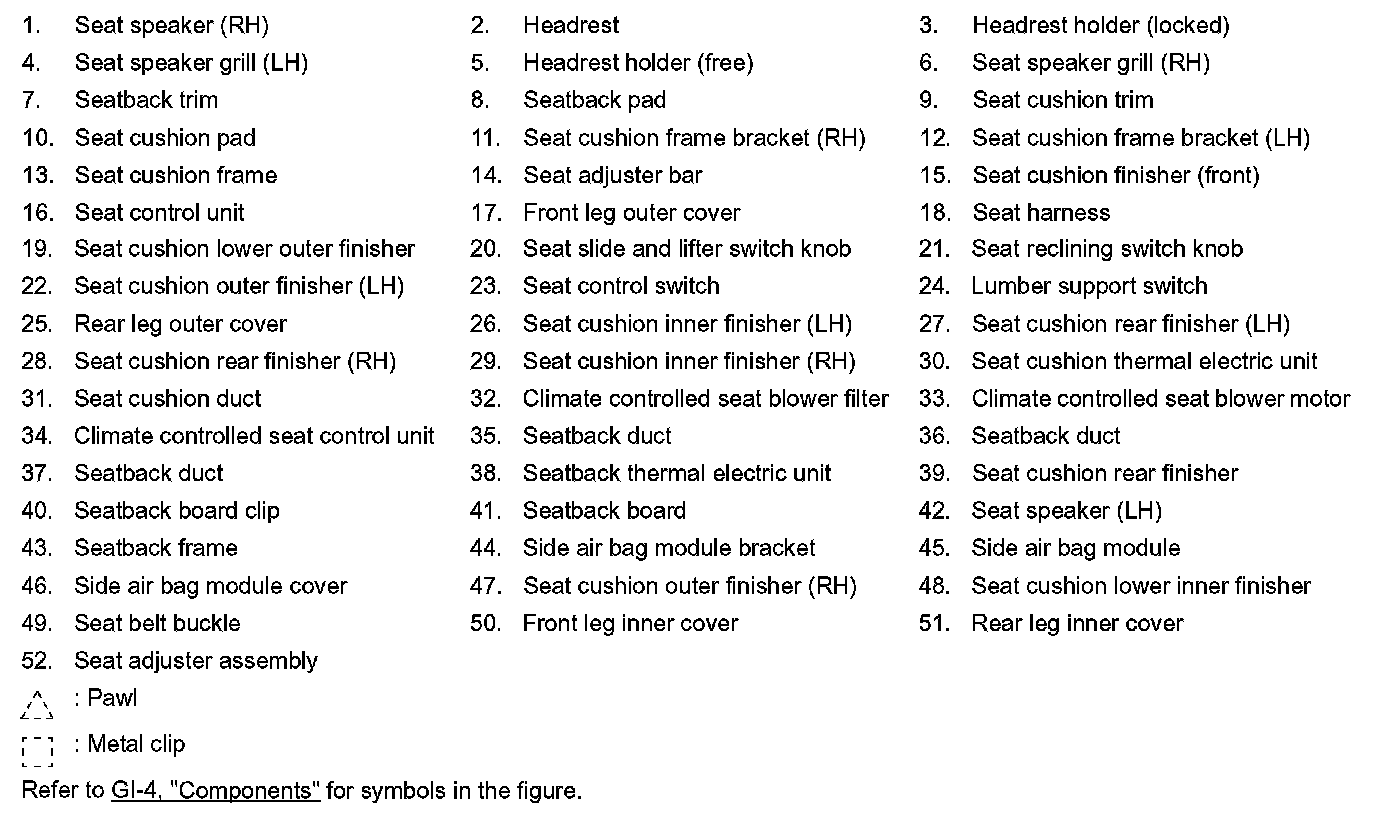

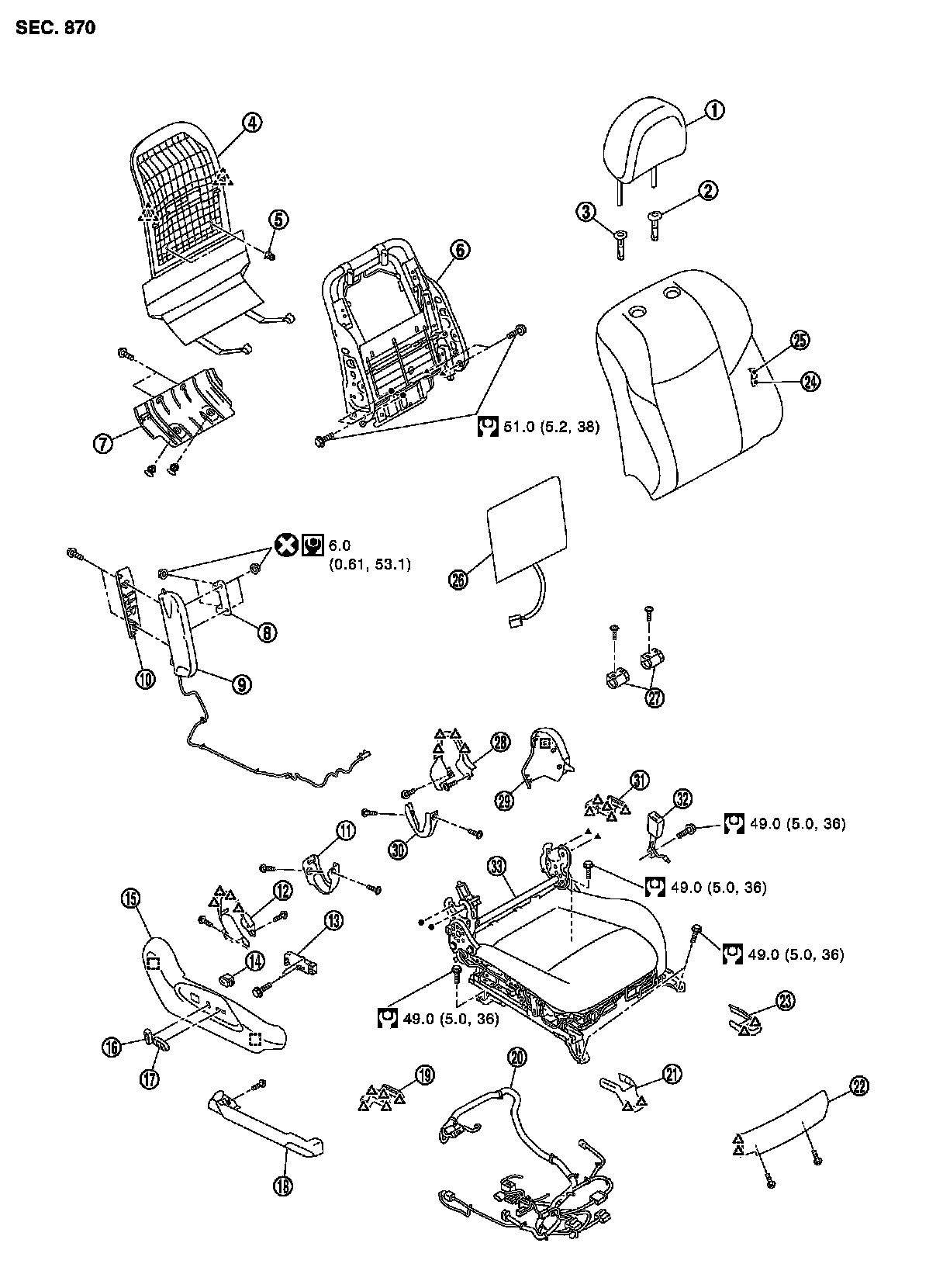

DRIVER SEAT WITH SEAT SPEAKER AND CLIMATE CONTROLLED SEAT

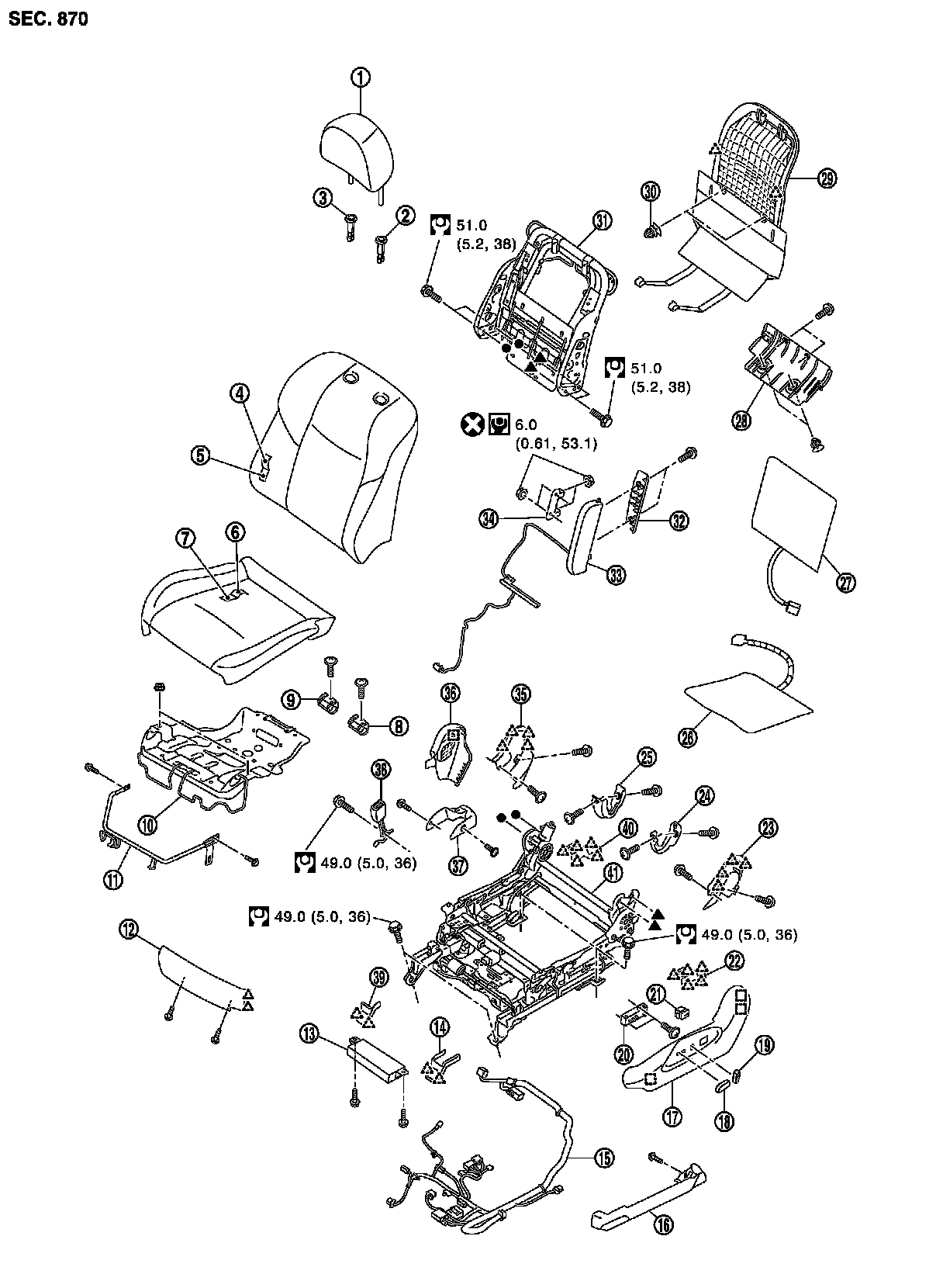

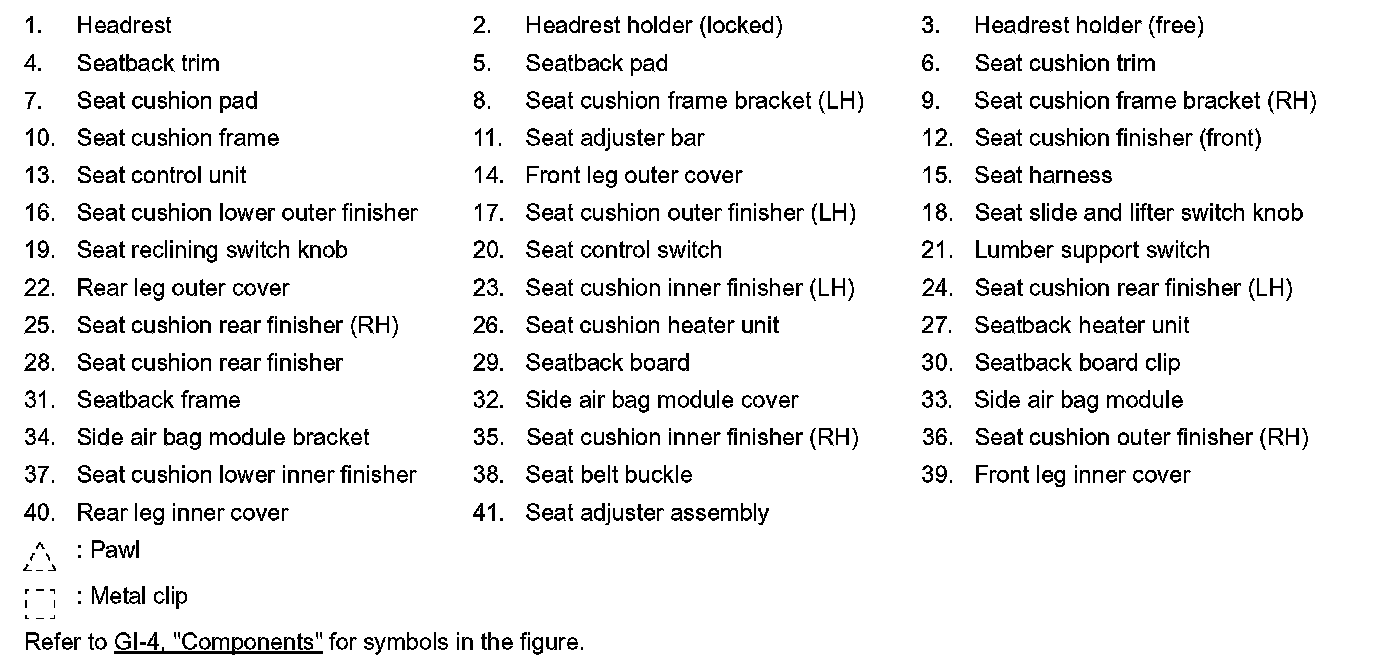

PASSENGER SEAT WITH SEAT HEATER

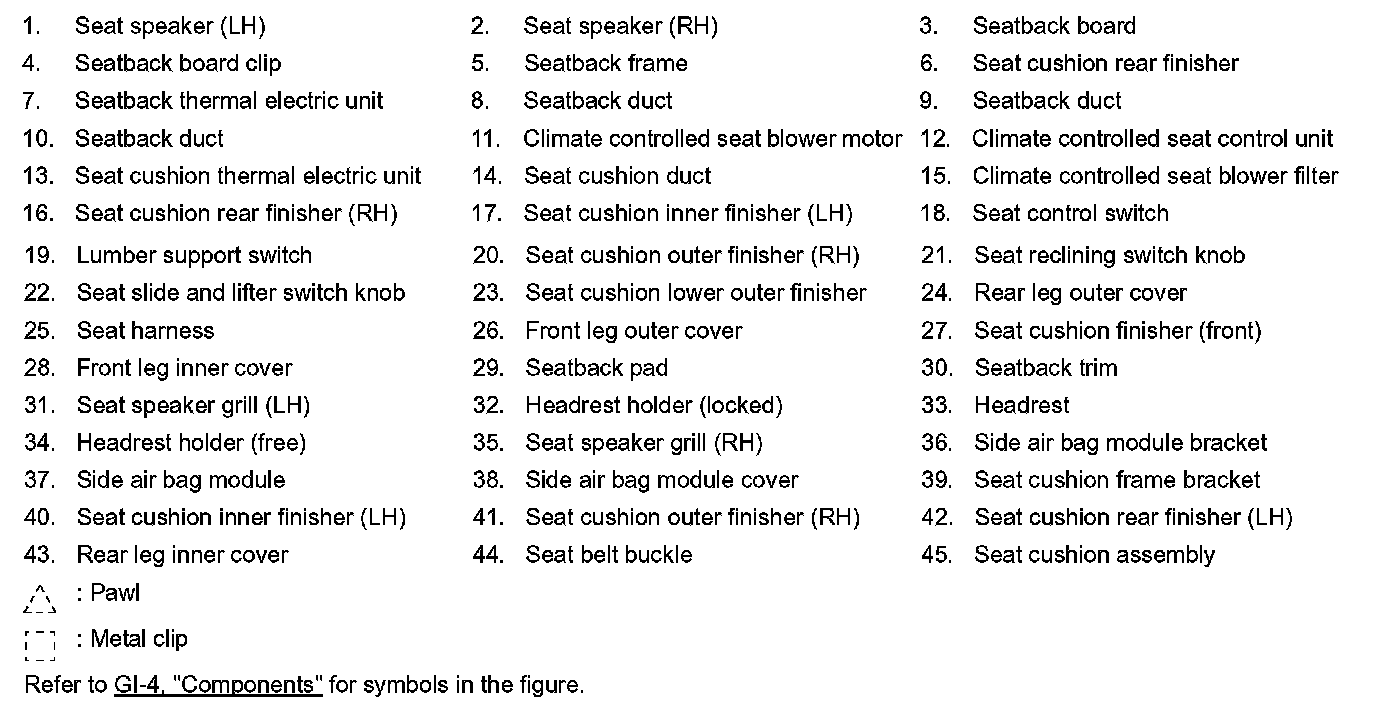

PASSENGER SEAT WITH SEAT SPEAKER AND CLIMATE CONTROLLED SEAT
