Door Mirror Defogger

DOOR MIRROR DEFOGGER





Component Function Check
1.CHECK DOOR MIRROR DEFOGGER
1. Perform Active Test ("REAR DEFOGGER") with CONSULT-III.
2. Touch "ON".
3. Check that both side door mirror glass is getting warmer.
Is the inspection result normal?
YES - Door mirror defogger is OK.
NO - SEE Diagnosis Procedure




Diagnosis Procedure
1.CHECK FUSE
1. Turn ignition switch OFF.
2. Check 10A fuse [No.13, located in fuse block (J/B)].
Is the inspection result normal?
YES - GO TO 2.
NO - Replace the blown fuse after repairing the affected circuit if a fuse is blown.
2.CHECK FUSE BLOCK (J/B)
1. Turn ignition switch ON.

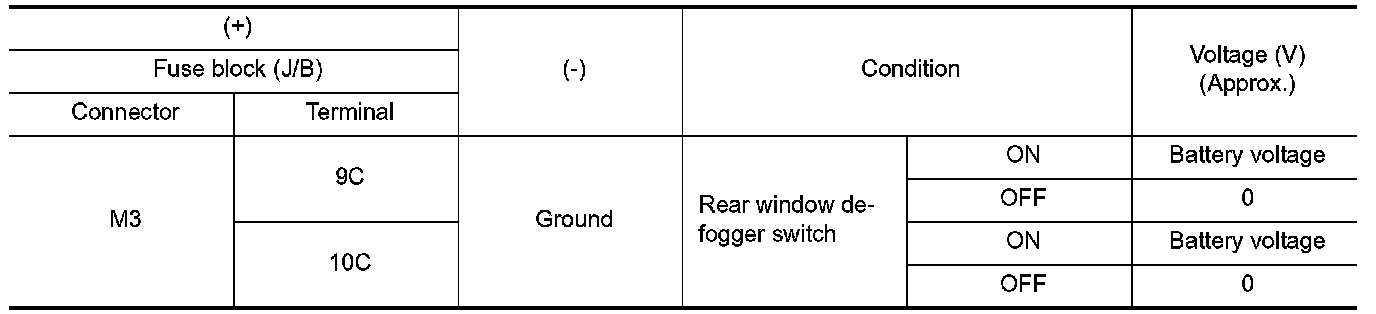

2. Check voltage between fuse block (J/B) (fuse block side) and ground.





Is the inspection result normal?
YES - INSPECTION END.
NO - Replace fuse block (J/B).
