Driver Side

DOOR LOCK ACTUATOR:_:DRIVER SIDE





Component Function Check
1.CHECK FUNCTION
1. Select "DOOR LOCK" of "BCM" using CONSULT-III.
2. Select "DOOR LOCK" in "ACTIVE TEST" mode.
3. Touch "ALL LCK" or "ALL UNLK" to check that it works normally.
Is the inspection result normal?
YES - Door lock actuator is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK DOOR LOCK ACTUATOR OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front door lock assembly (driver side) connector.
3. Check voltage between front door lock assembly (driver side) harness connector and ground.





Is the inspection result normal?
YES - Replace front door lock assembly (driver side).
NO - GO TO 2.
2.CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect BCM connector.

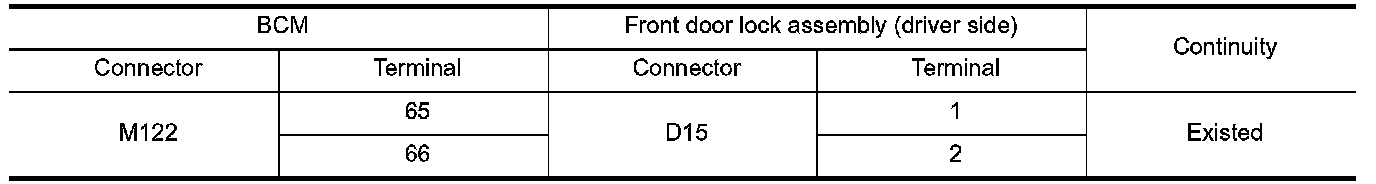

2. Check continuity between BCM harness connector and front door lock assembly (driver side) harness connector.

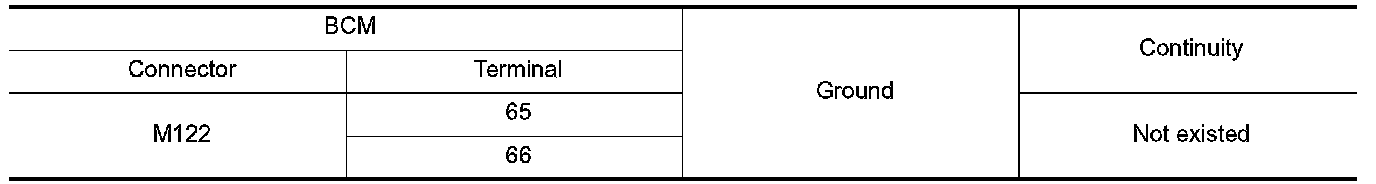

3. Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace harness.
3.CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.

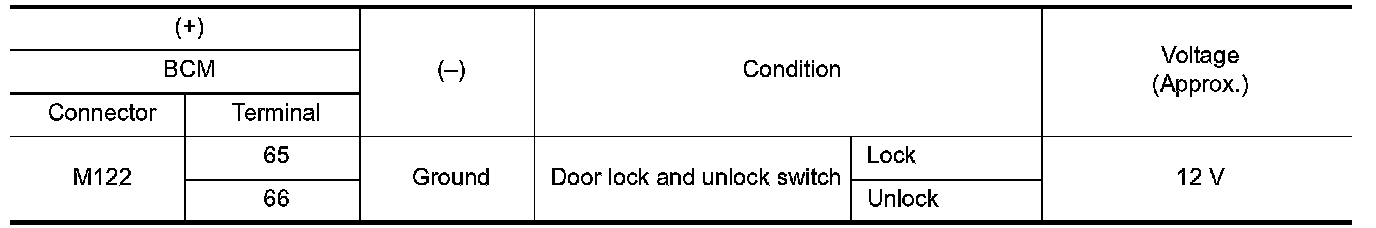

2. Check voltage between BCM harness connector and ground.





Is the inspection result normal?
YES - Check for internal short of each door lock actuator and fuel lid lock actuator.
NO - Replace BCM. Service and Repair.
