Intelligent Key

INTELLIGENT KEY





Component Function Check
1.CHECK FUNCTION
1. Select "INTELLIGENT KEY" of "BCM" using CONSULT-III.
2. Select "RKE OPE COUN1" in "DATA MONITOR" mode.
3. Check that the function operates normally according to the following conditions.





Is the inspection result normal?
YES - Intelligent Key is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK INTELLIGENT KEY BATTERY

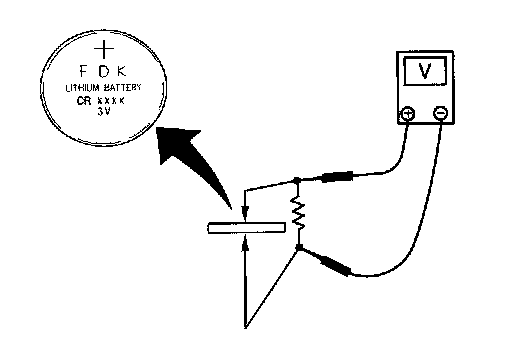

Check by connecting a resistance (approximately 300 Ohm(s)) so that the current value becomes approximately 10 mA.

Standard : Approx. 2.5 - 3.0 V






Is the measurement value within the specification?
YES - Replace Intelligent Key.
NO - Replace Intelligent Key battery.




Special Repair Requirement
Refer to CONSULT-III Operation Manual NATS-IVIS/NVIS.
