Trunk Rear Plate

TRUNK ROOM TRIM


TRUNK REAR PLATE : Removal and Installation


REMOVAL
1. Fully open trunk lid.
2. Remove trunk floor carpet.
3. Remove rope hooks and trunk rear plate fixing clips

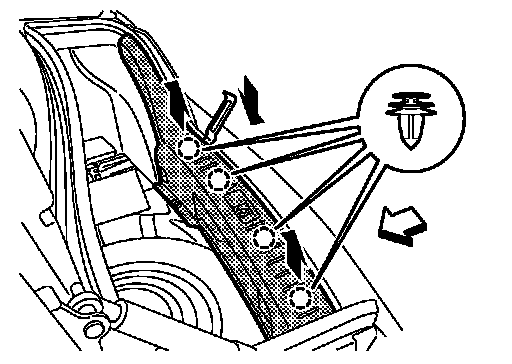

4. Insert a remover tool between trunk rear plate and body rear panel to disengage fixing clips, and then remove luggage rear plate.

Circle: Clip
Arrow: Vehicle Front

5. Pull up trunk rear plate to remove.

INSTALLATION
Note the following item, and then install in the reverse order of removal.

CAUTION:
Check that clips are securely fitted in panel holes on body when installing, and then press clips in.
