Home >> Infiniti >> 2011 >> M37x AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Description and Operation >> Combination Switch Reading System >> System Diagram

System Diagram

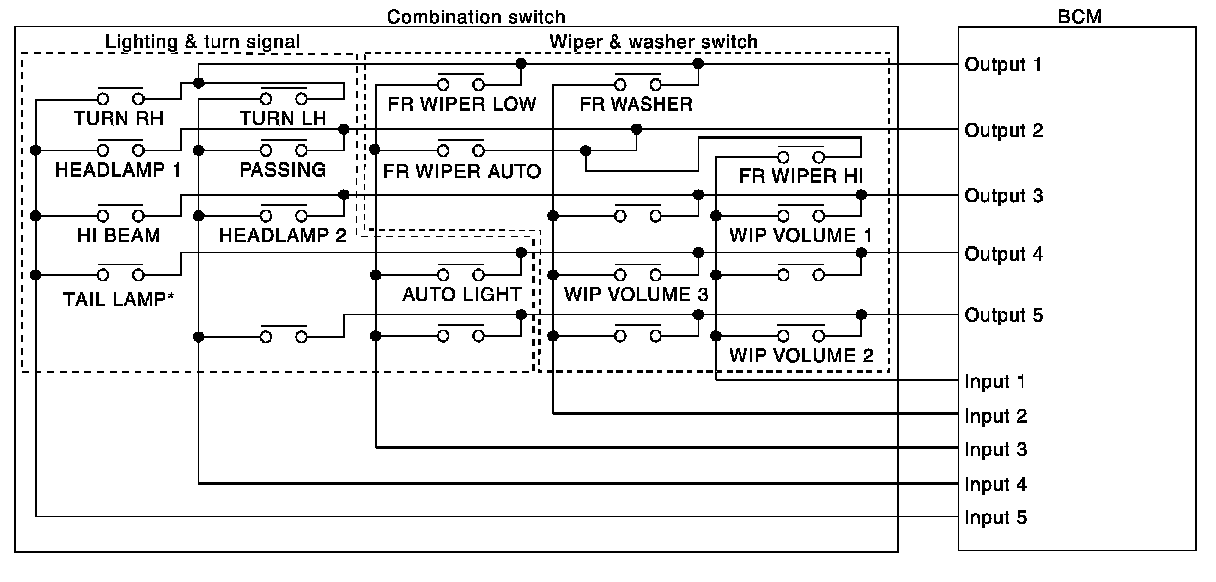

COMBINATION SWITCH READING SYSTEM : System Diagram

NOTE:
*: TAIL LAMP switch links lighting switch 1ST and 2ND positions.
