Bose Amp





BOSE AMP.


Reference Value


BOSE� STUDIO SURROUND� SOUND SYSTEM MODELS

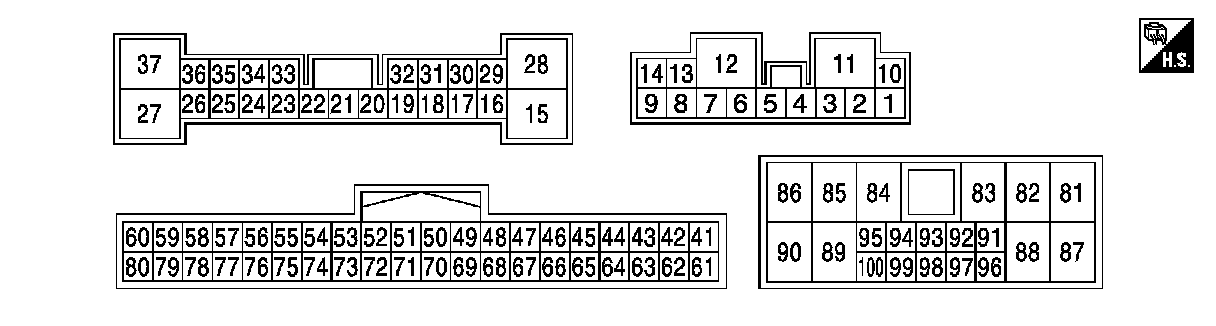

Terminal Layout

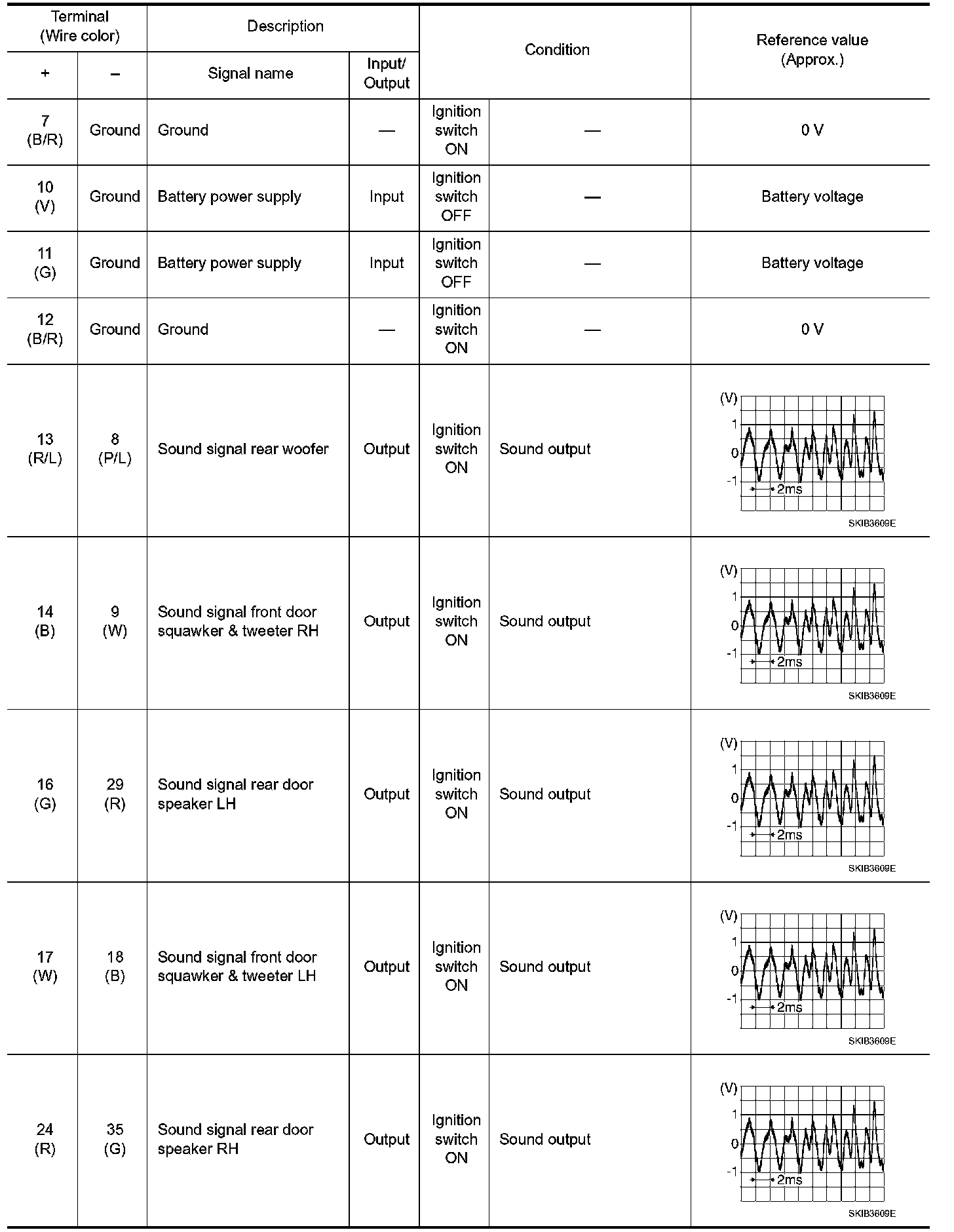

Physical Values




































BOSE SOUND SYSTEM MODELS

TERMINAL LAYOUT

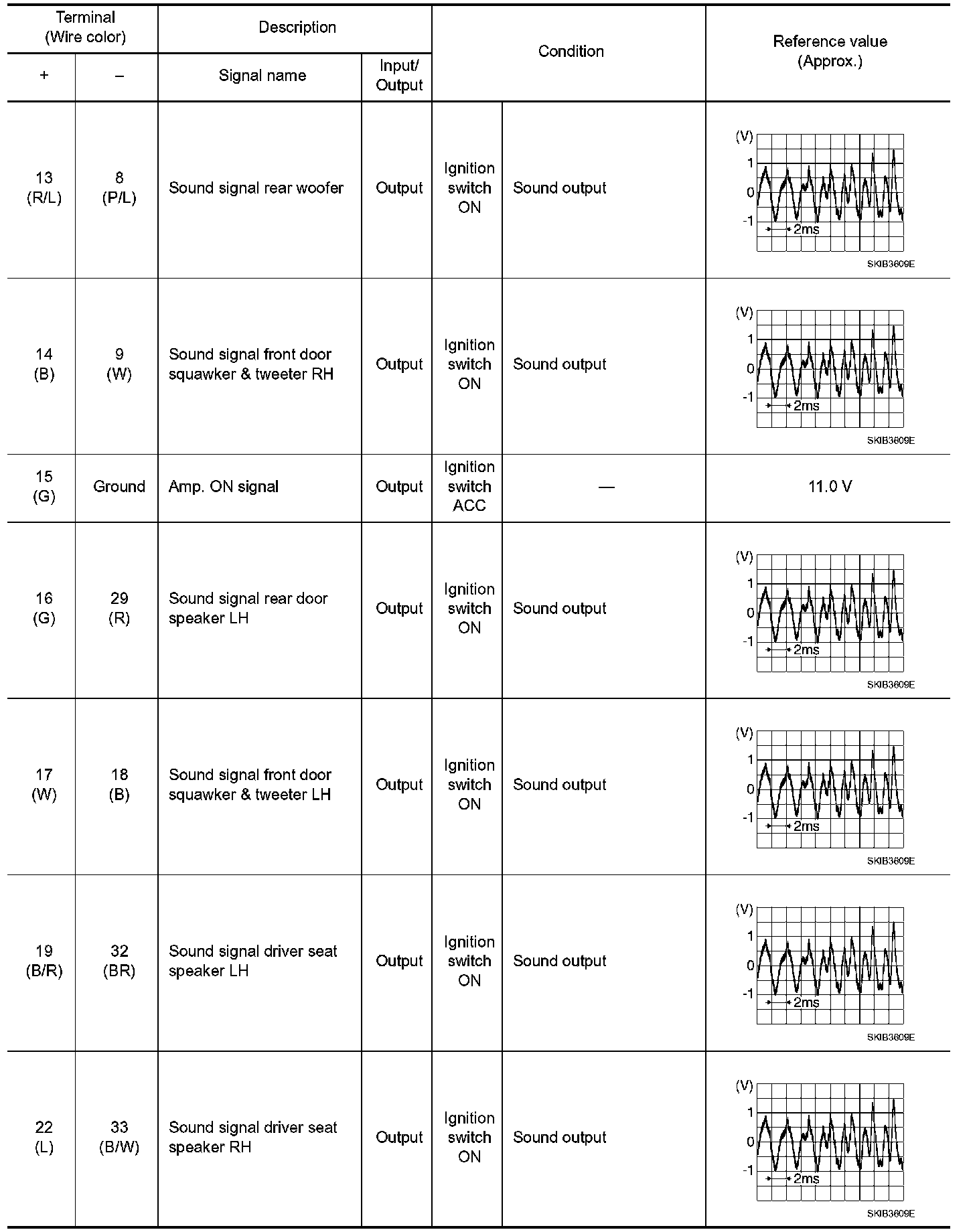

PHYSICAL VALUES
