Seat Speaker

SEAT SPEAKER


Removal and Installation


REMOVAL

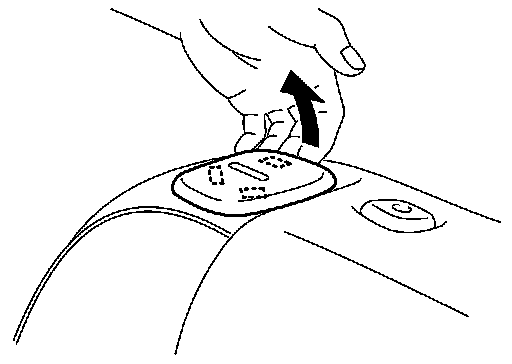

1. Remove the seat speaker grille as shown in the figure.

CAUTION:
Never reuse seat speaker grille. The pawl is broken when removing.
2. Remove the front seatback trim and pad. Service and Repair.
3. Remove the screws and disconnect the connector to remove the seat speaker.

INSTALLATION
Install in the reverse order of removal.
