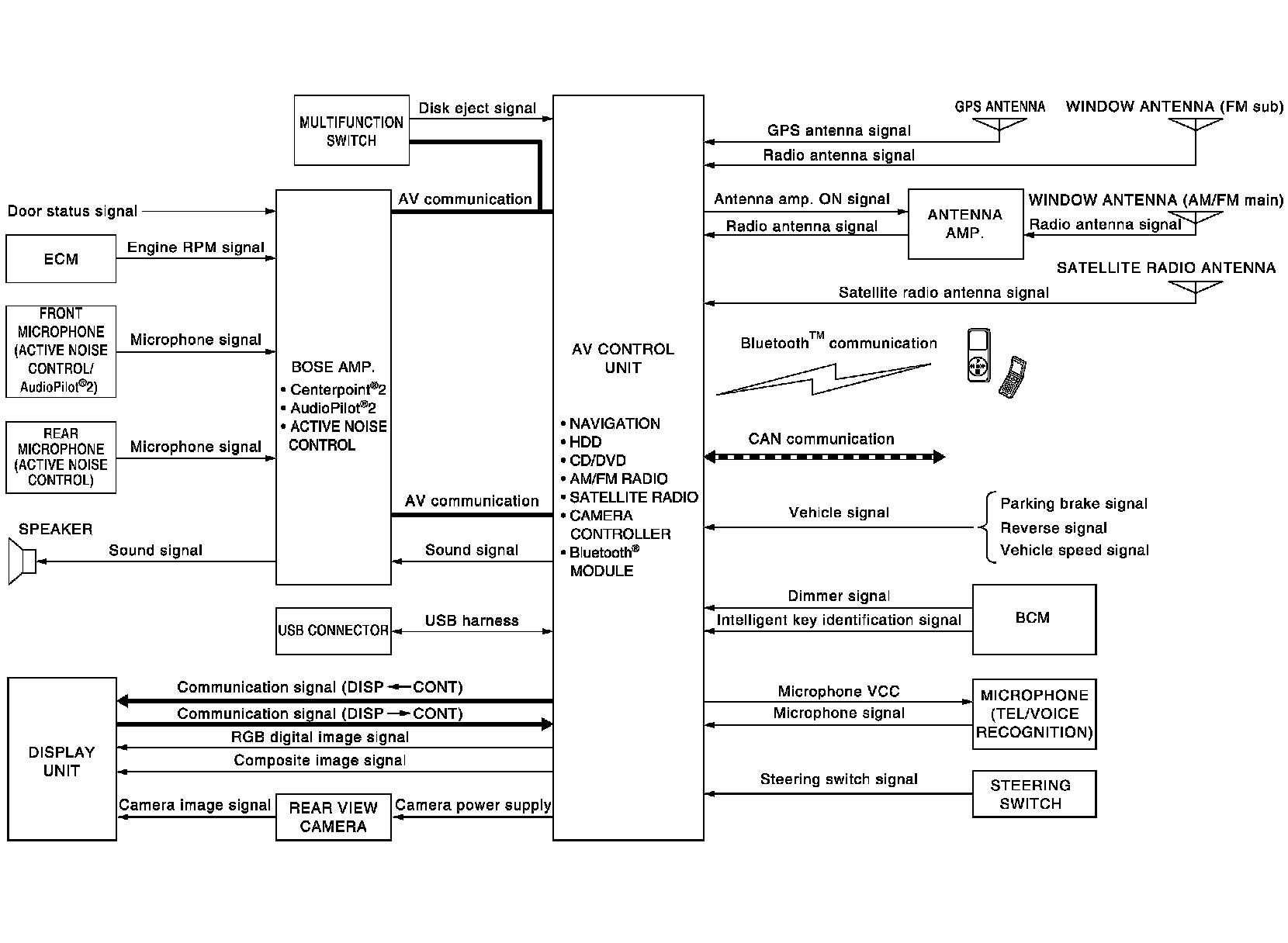

System Diagram Bose Audio With Navigation

MULTI AV SYSTEM : System Diagram







NOTE:
- The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
- BOSE Centerpoint� 2 function has only BOSE� Studio Surround� sound system models.
