Consult-III Function (Side Radar Right)

DIAGNOSIS SYSTEM (SIDE RADAR RH)


CONSULT-III Function (SIDE RADAR RIGHT)

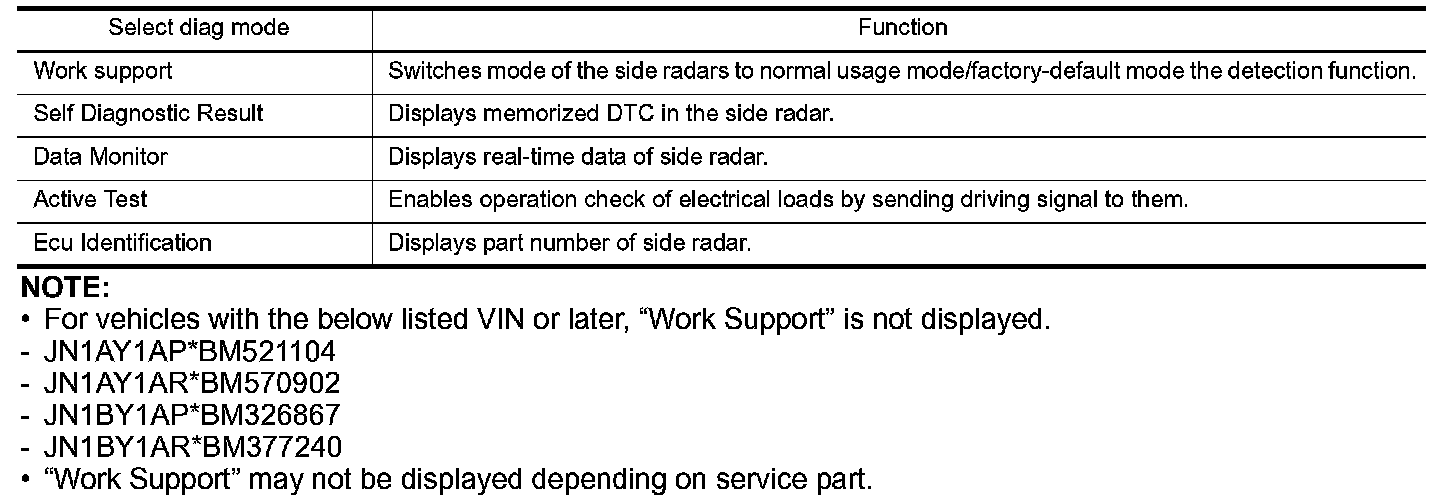

DESCRIPTION
CONSULT-III performs the following functions by communicating with the side radar RH.






NOTE:
- For vehicles with the below listed VIN or later, "Work Support" is not displayed.
- JN1AY1AP*BM521104
- JN1AY1AR*BM570902
- JN1BY1AP*BM326867
- JN1BY1AR*BM377240
- "Work Support" may not be displayed depending on service part.

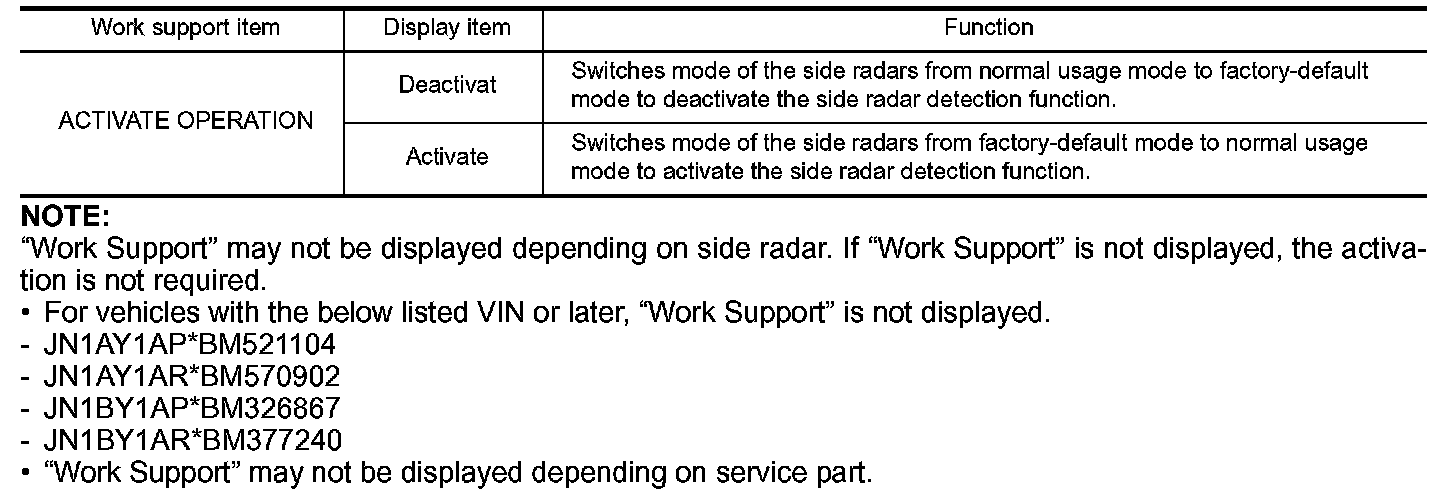

WORK SUPPORT






NOTE:
"Work Support" may not be displayed depending on side radar. If "Work Support" is not displayed, the activation is not required.
- For vehicles with the below listed VIN or later, "Work Support" is not displayed.
- JN1AY1AP*BM521104
- JN1AY1AR*BM570902
- JN1BY1AP*BM326867
- JN1BY1AR*BM377240
- "Work Support" may not be displayed depending on service part.

SELF DIAGNOSTIC RESULT

Self Diagnostic Result
Displays memorized DTC in side radar RH. Testing and Inspection.

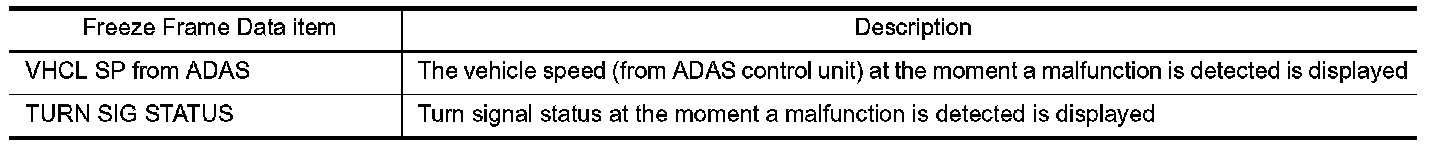

FFD (Freeze Frame Data)
The side radar records the following data when the malfunction is detected.

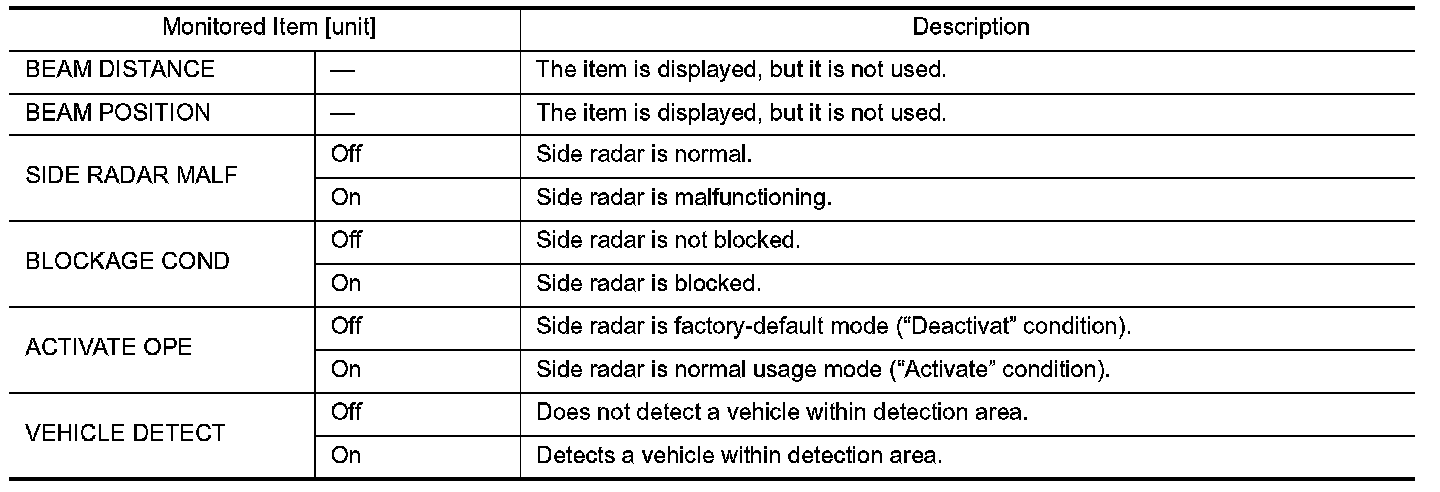

DATA MONITOR

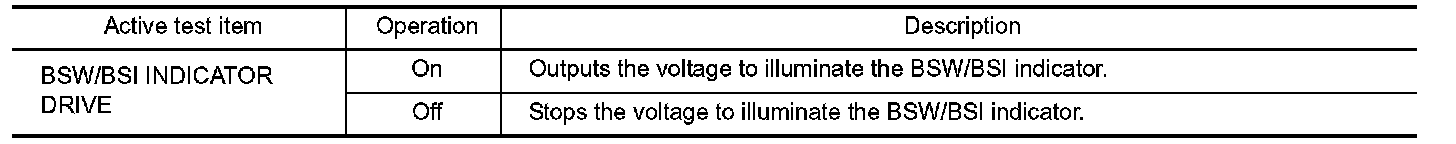

ACTIVE TEST

CAUTION:
- Never perform the active test while driving.
- Active test cannot be started while the BSW/BSI indicator is illuminated.
