Home >> Infiniti >> 2011 >> M37x AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Lane Camera Unit >> LDW & LDP

LDW & LDP





LANE CAMERA UNIT


Reference Value

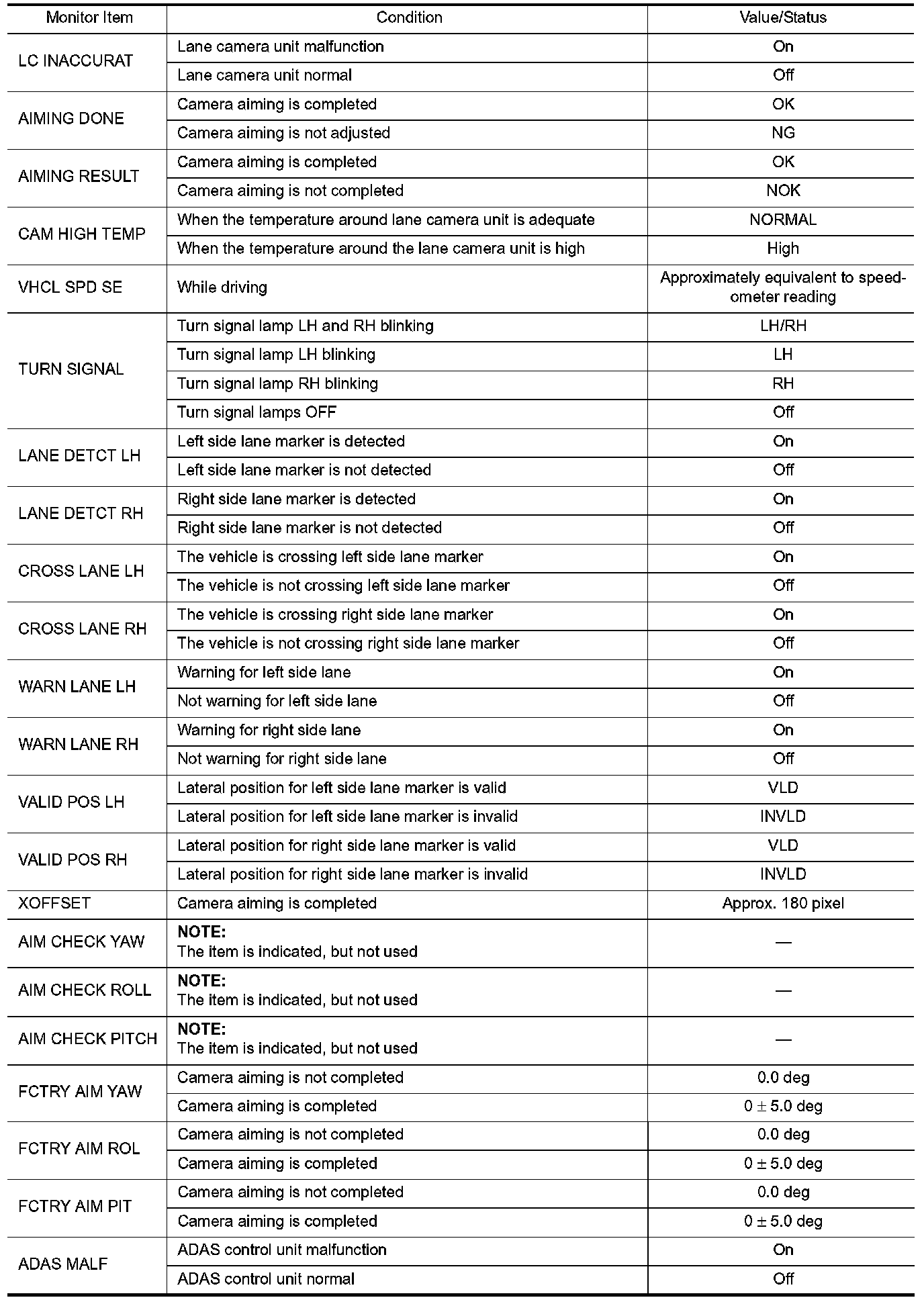

VALUES ON THE DIAGNOSIS TOOL

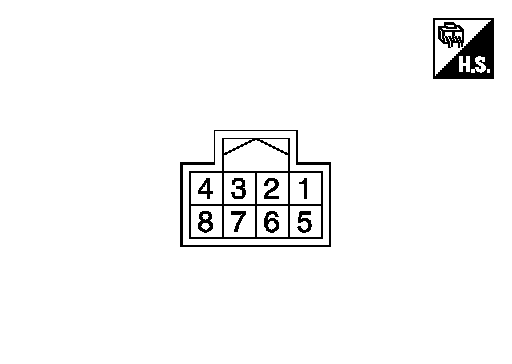

TERMINAL LAYOUT

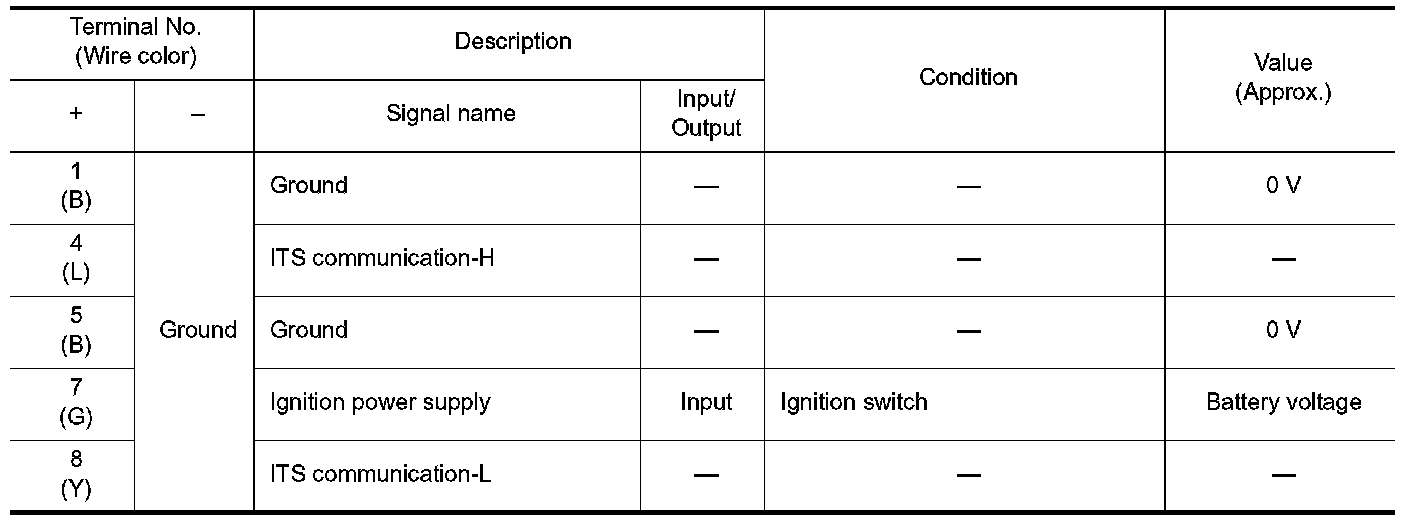

PHYSICAL VALUES
