Accelerator Pedal Actuator

ACCELERATOR PEDAL ACTUATOR

Reference Value

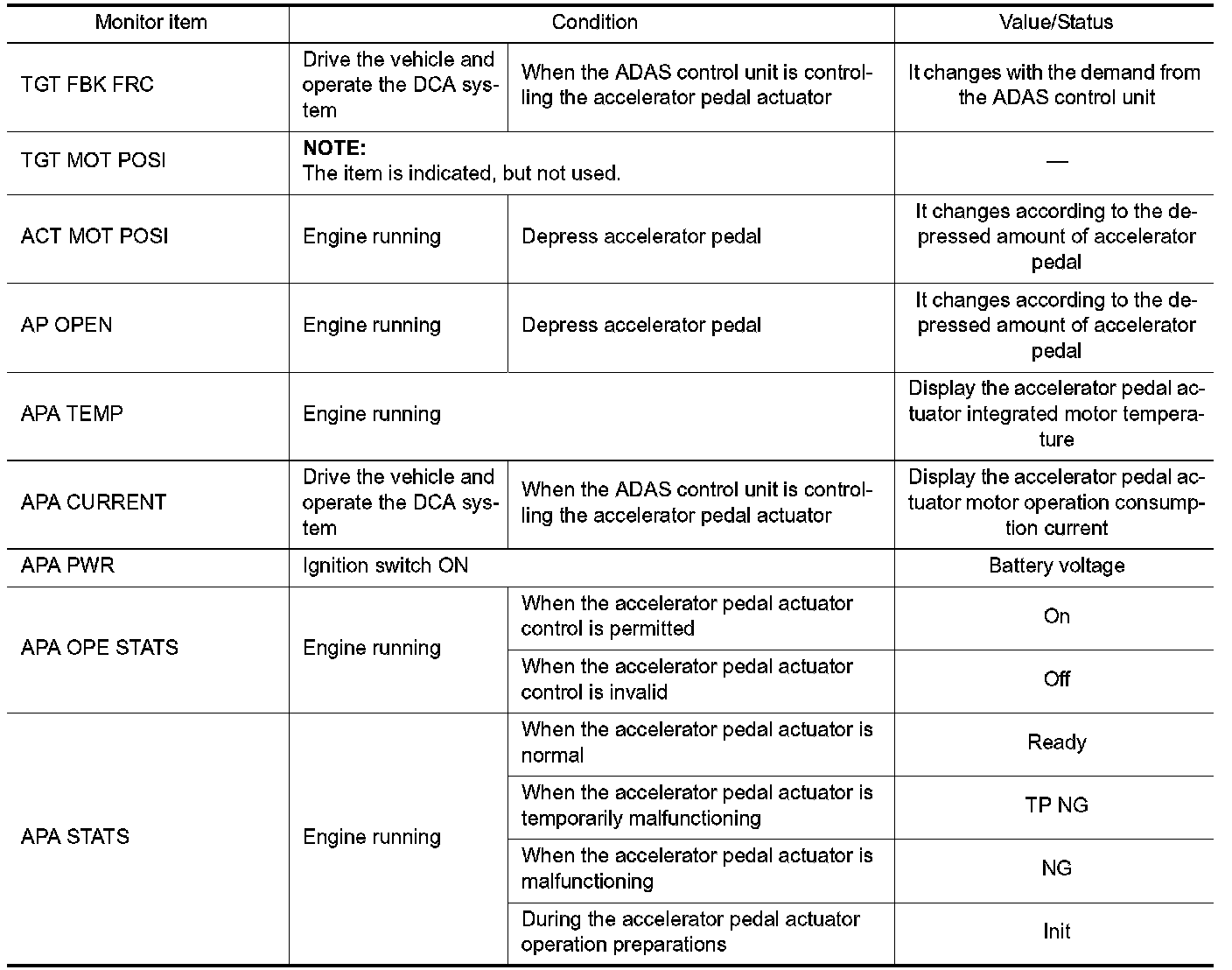

VALUES ON THE DIAGNOSIS TOOL

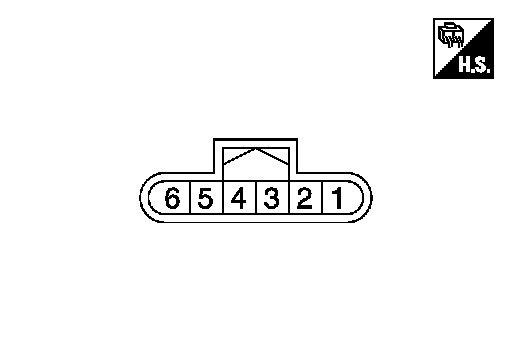

TERMINAL LAYOUT

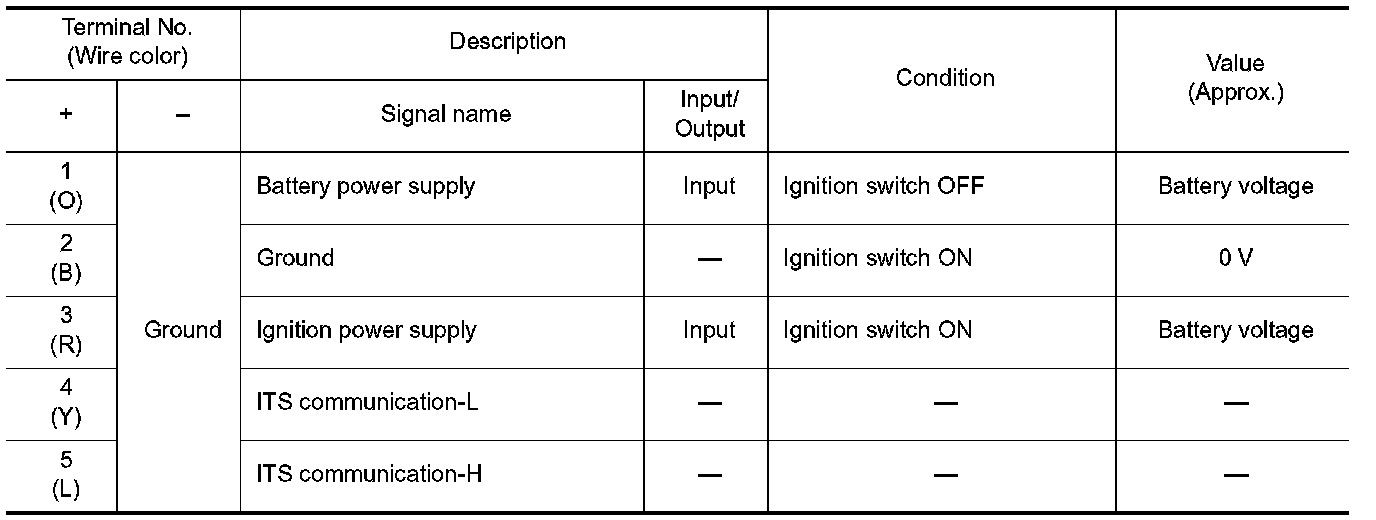

PHYSICAL VALUES
