Inspection Procedure

ACTION TEST


Inspection Procedure


WARNING:
Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:
- Fully understand the following items well before the road test;
- Precautions: Precaution For LDW/LDP System Service.
- System description for LDW: .
- System description for LDP: .
- Handling precaution: Precautions For Lane Departure Warning/Lane Departure Prevention.
1.ACTION TEST FOR LDW
1. Drive the vehicle.
2. Turn warning systems switch ON (warning systems ON indicator is ON).

NOTE:
LDP system is OFF.

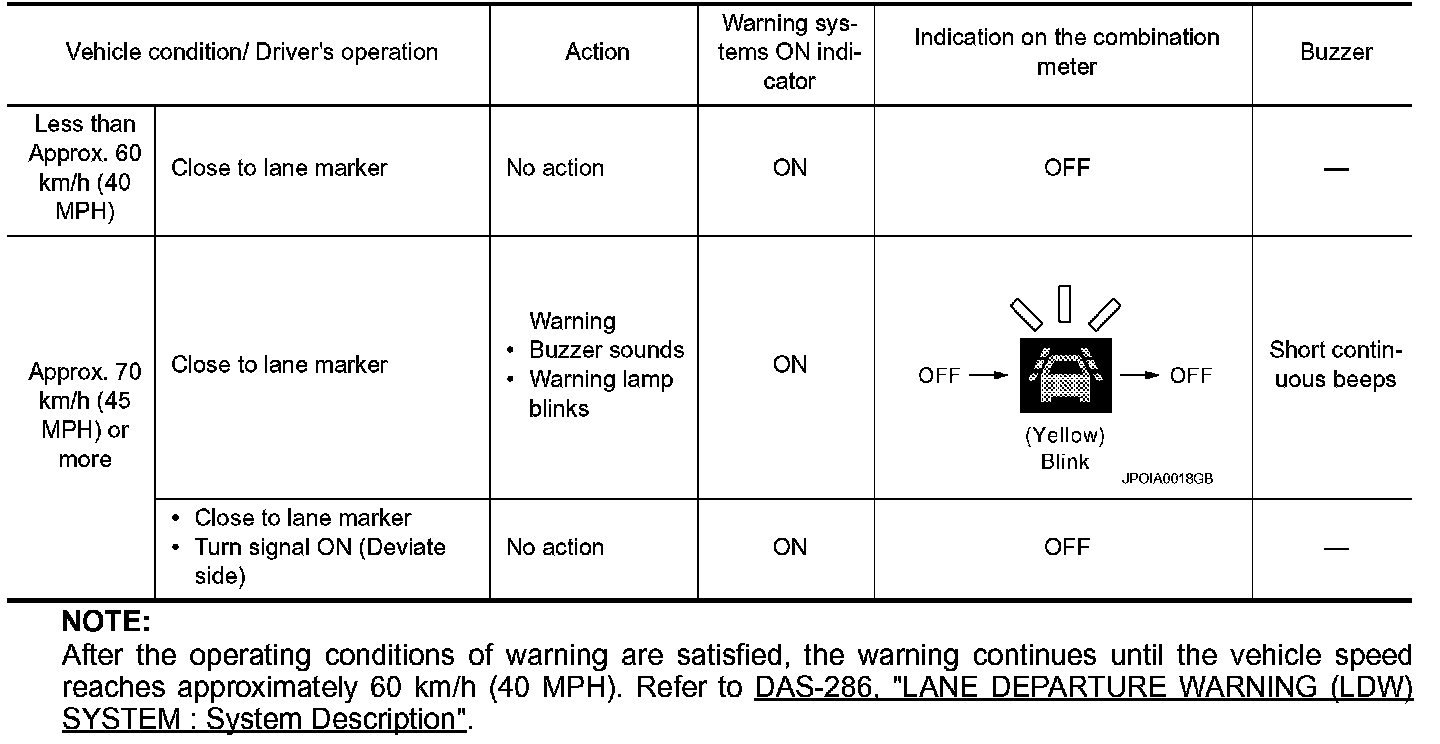

3. Check the LDW operation according to the following table.






NOTE:
After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches approximately 60 km/h (40 MPH). .
- GO TO 2.
2.CHECK LDP SYSTEM SETTING
1. Start the engine.
2. Check that the LDP system setting can be enabled/disabled on the navigation screen.
3. Turn OFF the ignition switch and wait for 30 seconds or more.
4. Check that the previous setting is saved when the engine starts again.
- GO TO 3.
3.ACTION TEST FOR LDP
1. Enable the setting of the LDP system on the navigation screen.
2. Turn dynamic driver assistance switch ON (LDP ON indicator lamp is ON).

NOTE:
LDW system is OFF.

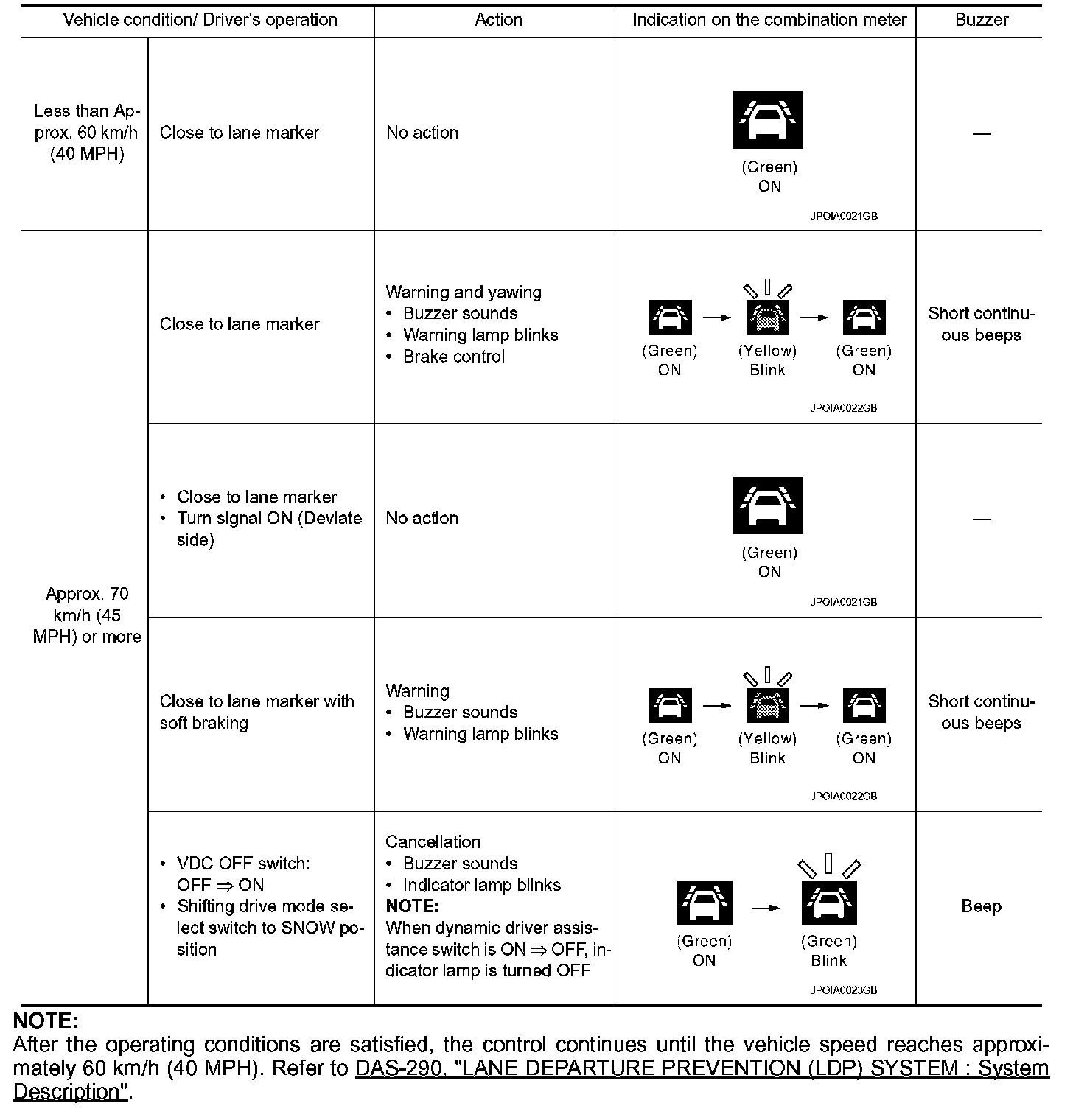

3. Check the LDP operation according to the following table.






NOTE:
After the operating conditions are satisfied, the control continues until the vehicle speed reaches approximately 60 km/h (40 MPH). .
- INSPECTION END
