Side Radar RH

POWER SUPPLY AND GROUND CIRCUIT:_:SIDE RADAR RH





Diagnosis Procedure
1.FUSE INSPECTION

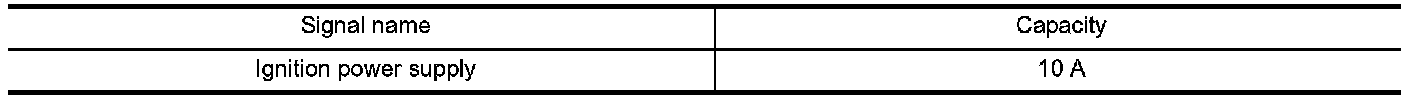

Check that the following fuses are not fusing.





Is the fuse fusing?
YES - Replace the blown fuse after repairing the affected circuit.
NO - GO TO 2.
2.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the side radar RH connector.

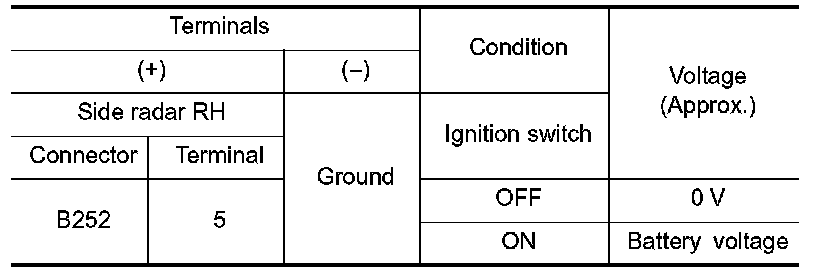

3. Check voltage between side radar RH harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair the side radar RH power supply circuit.
3.CHECK GROUND CIRCUIT

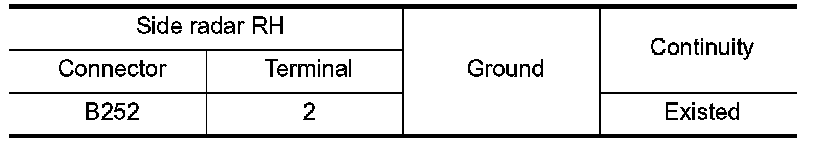

Check continuity between side radar RH harness connectors and ground.





Is the inspection result normal?
YES - INSPECTION END
NO - Repair the side radar RH ground circuit.
