Side Radar LH

POWER SUPPLY AND GROUND CIRCUIT:_:SIDE RADAR LH





Diagnosis Procedure
1.FUSE INSPECTION

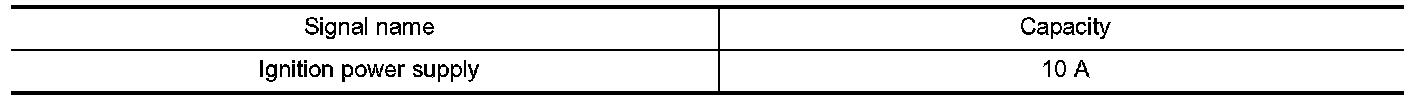

Check that the following fuses are not fusing.





Is the fuse fusing?
YES - Replace the blown fuse after repairing the affected circuit.
NO - GO TO 2.
2.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the side radar LH connector.

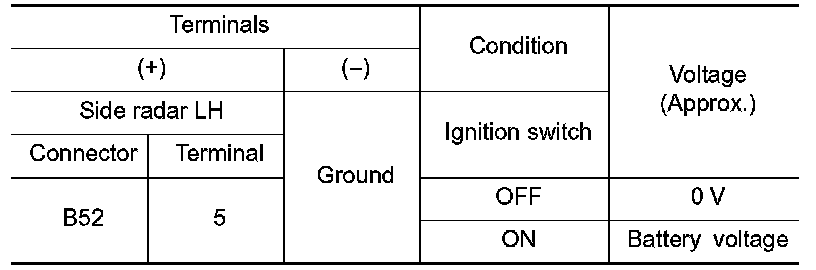

3. Check voltage between side radar LH harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair the side radar LH power supply circuit.
3.CHECK GROUND CIRCUIT
Check continuity between side radar LH harness connectors and ground.





Is the inspection result normal?
YES - INSPECTION END
NO - Repair the side radar LH ground circuit.
