BSW & BSI

POWER SUPPLY AND GROUND CIRCUIT:_:LANE CAMERA UNIT





Diagnosis Procedure
1.CHECK LANE CAMERA UNIT POWER SUPPLY CIRCUIT

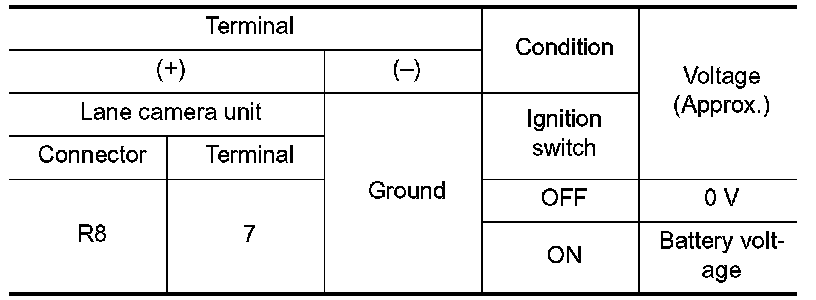

Check voltage between lane camera unit harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - Repair the lane camera unit power supply circuit.
2.CHECK LANE CAMERA UNIT GROUND CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect the lane camera unit connector.

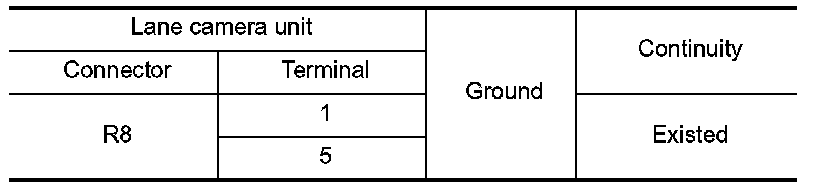

3. Check for continuity between lane camera unit harness connector and ground.





Is the inspection result normal?
YES - INSPECTION END
NO - Repair the lane camera unit ground circuit.
