ADAS Control Unit

System Description

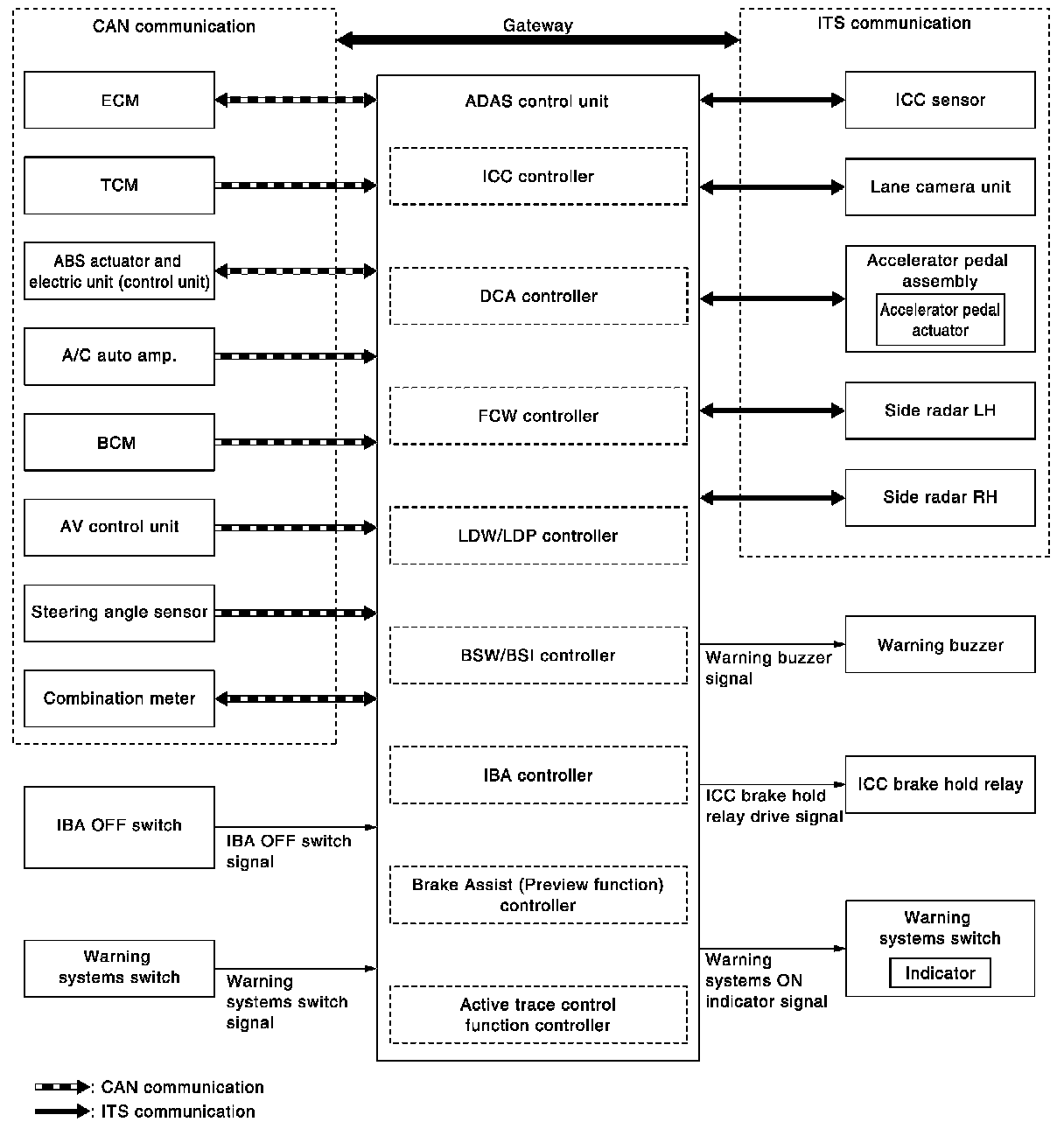

SYSTEM DIAGRAM






ADAS CONTROL UNIT INPUT/OUTPUT SIGNAL ITEM

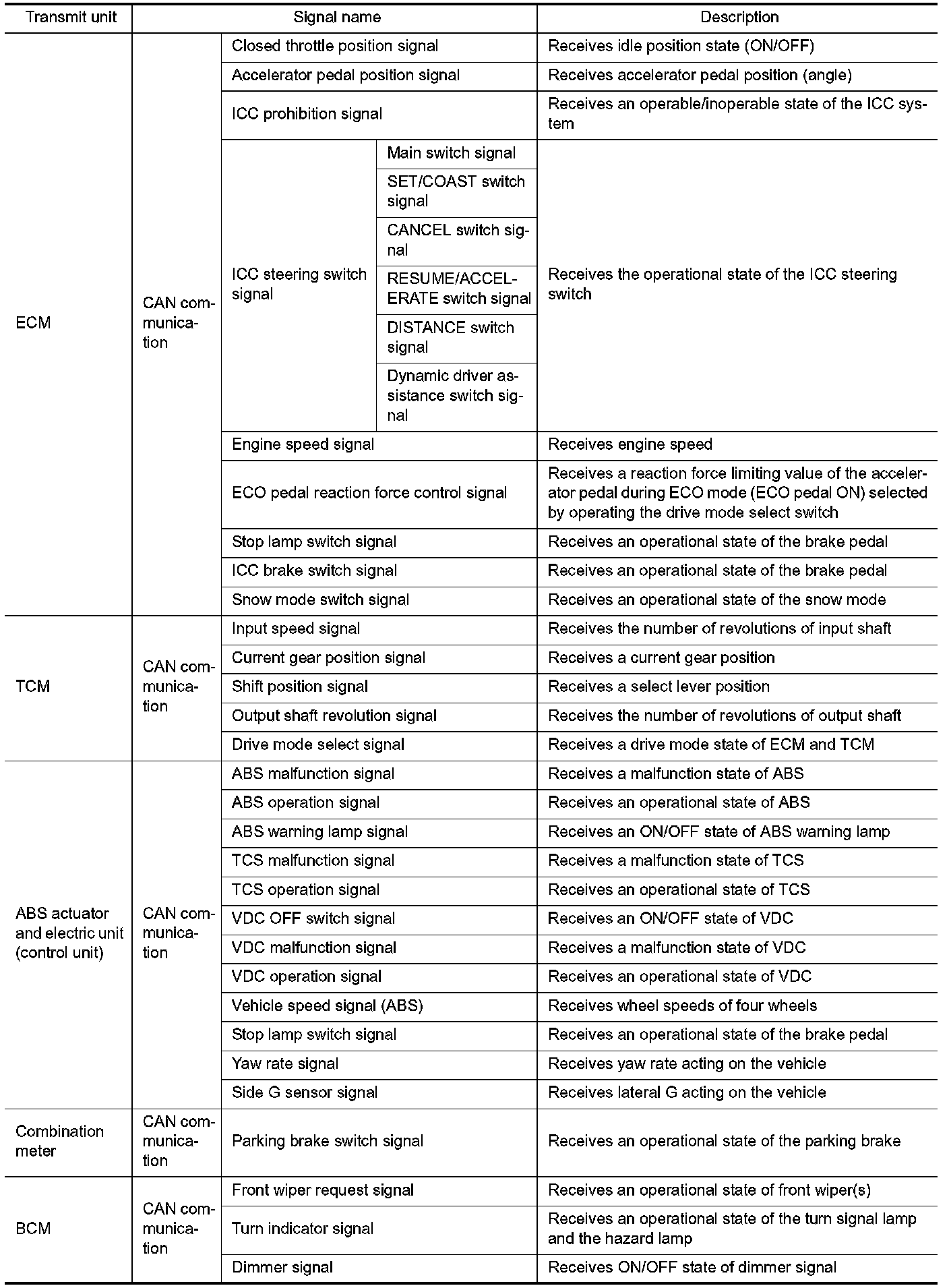

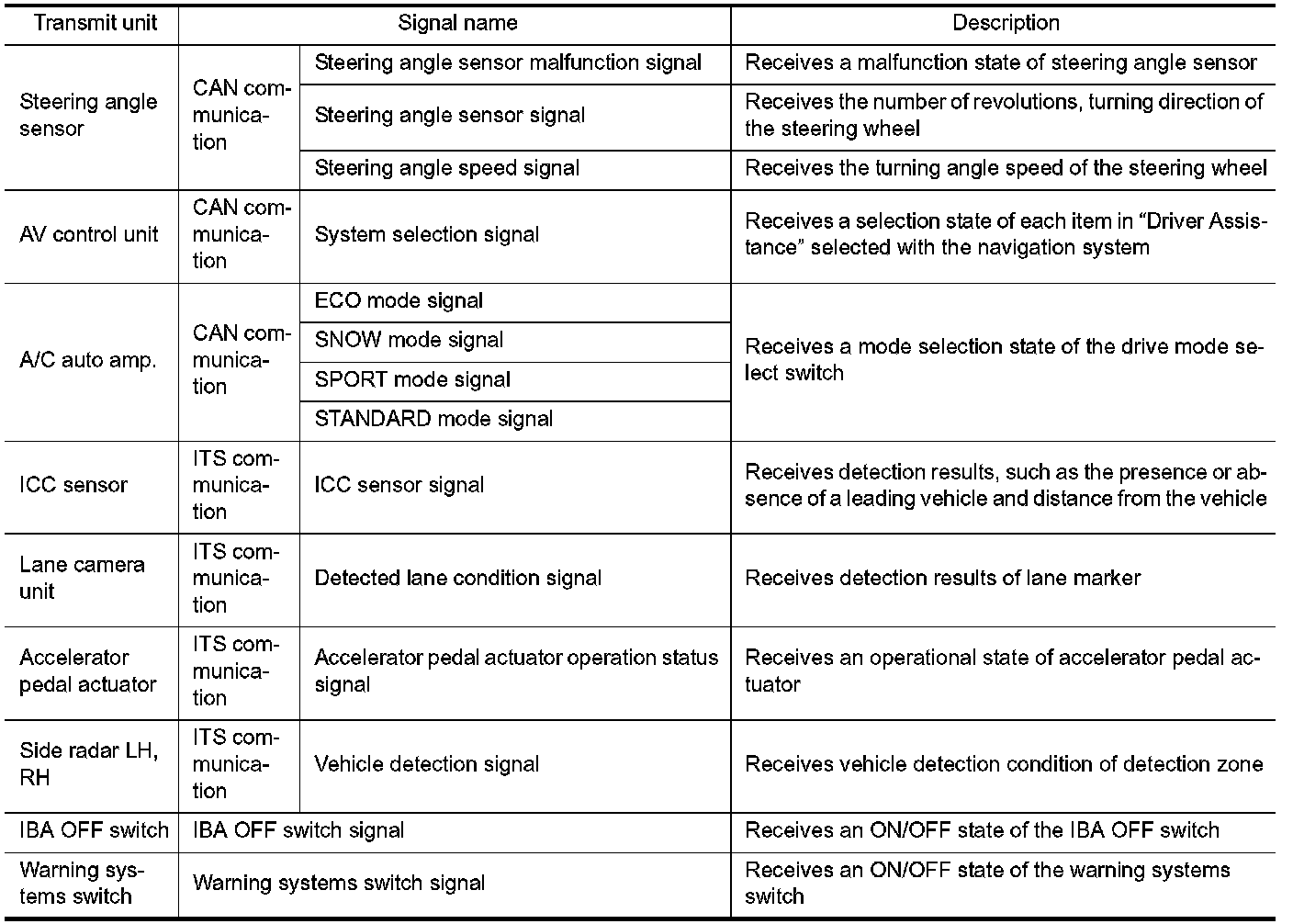

Input Signal Item

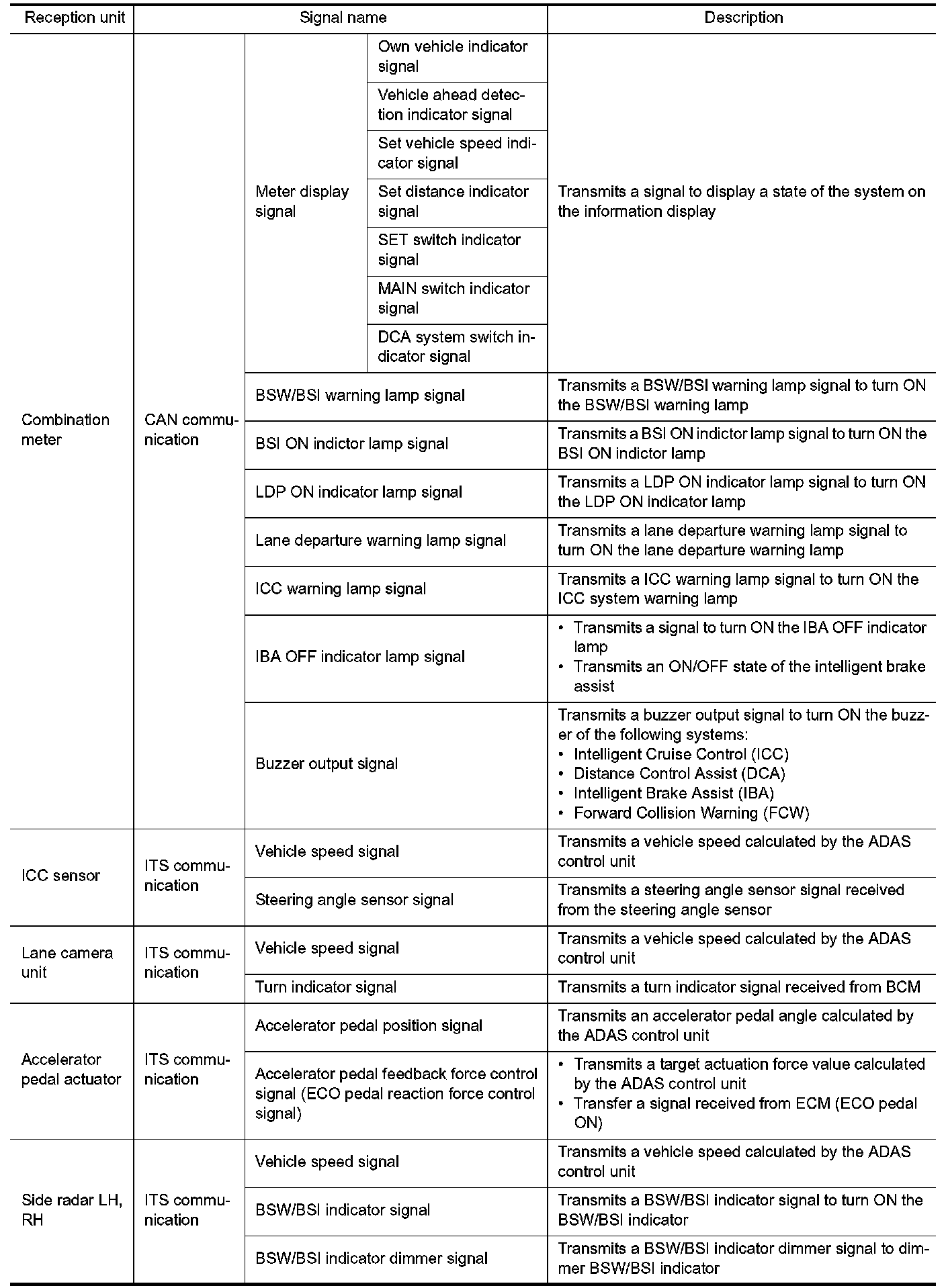

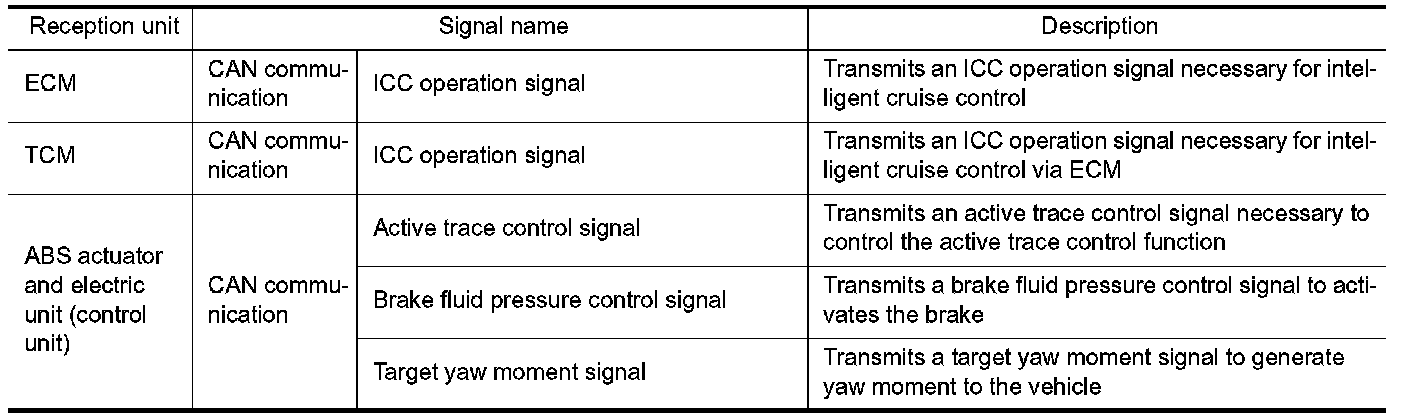

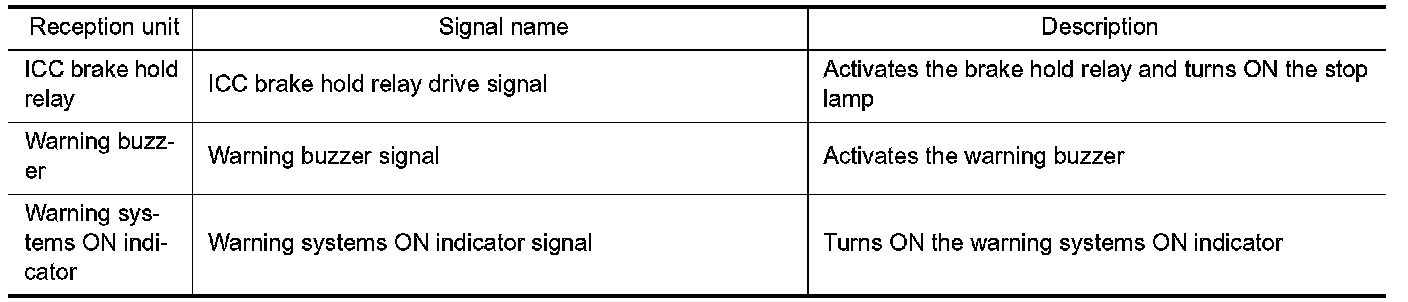

Output Signal Item
















DESCRIPTION
- ADAS* control unit controls the following systems, based on ITS communication signals from the ICC sensor, the accelerator pedal actuator, the lane camera unit, and the side radar LH/RH and a CAN communication signal from each control unit.

NOTE:
*: Advanced Driver Assistance Systems

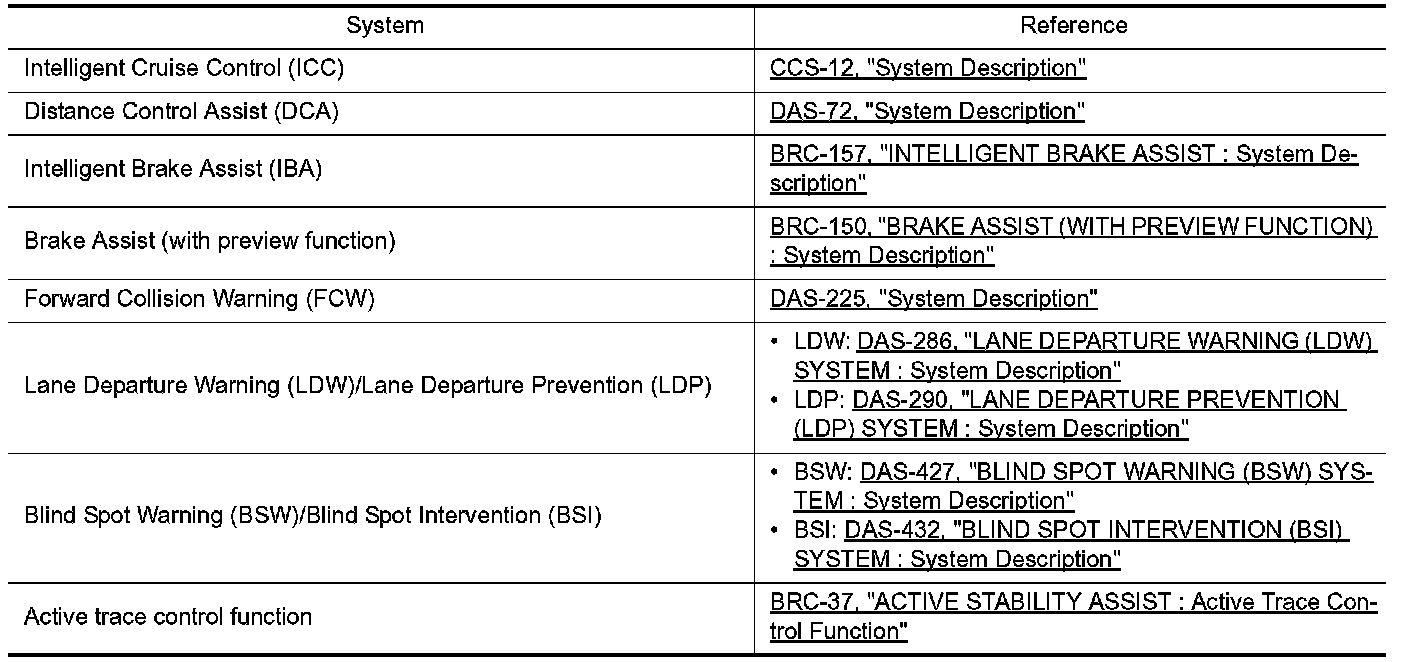

- Intelligent Cruise Control (ICC)
- Distance Control Assist (DCA)
- Intelligent Brake Assist (IBA)
- Brake Assist (with preview function)
- Forward Collision Warning (FCW)
- Lane Departure Warning (LDW)/Lane Departure Prevention (LDP)
- Blind Spot Warning (BSW)/Blind Spot Intervention (BSI)
- Active trace control function
