Pinout Values and Diagnostic Parameters





TEL ADAPTER UNIT


Reference Value

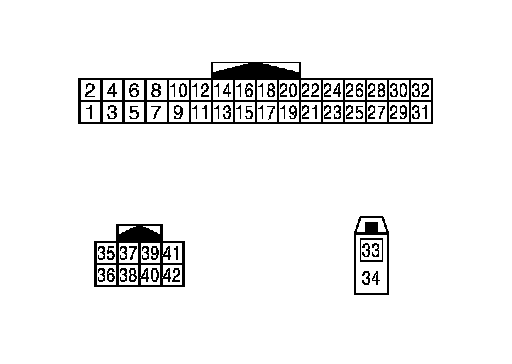

TERMINAL LAYOUT

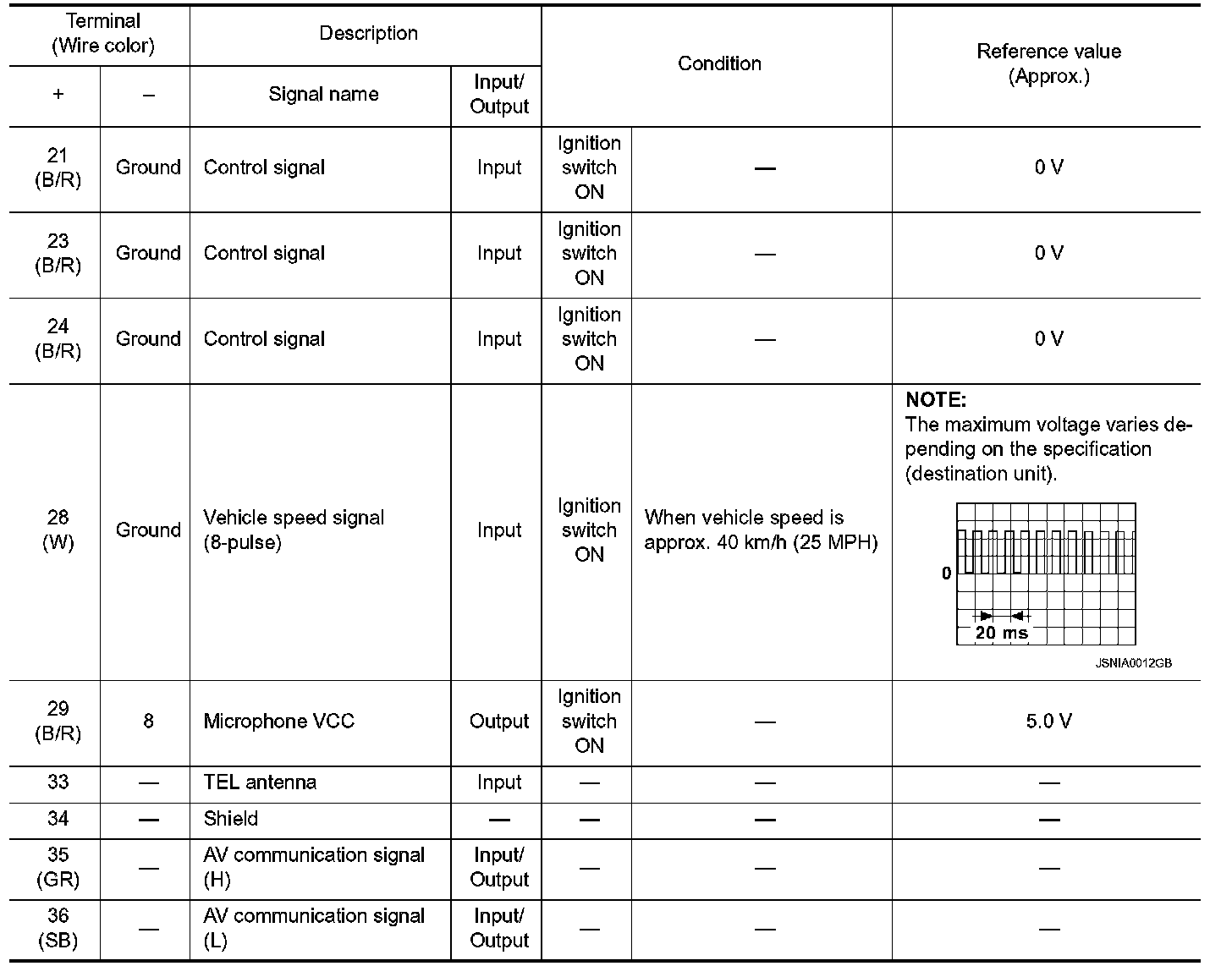

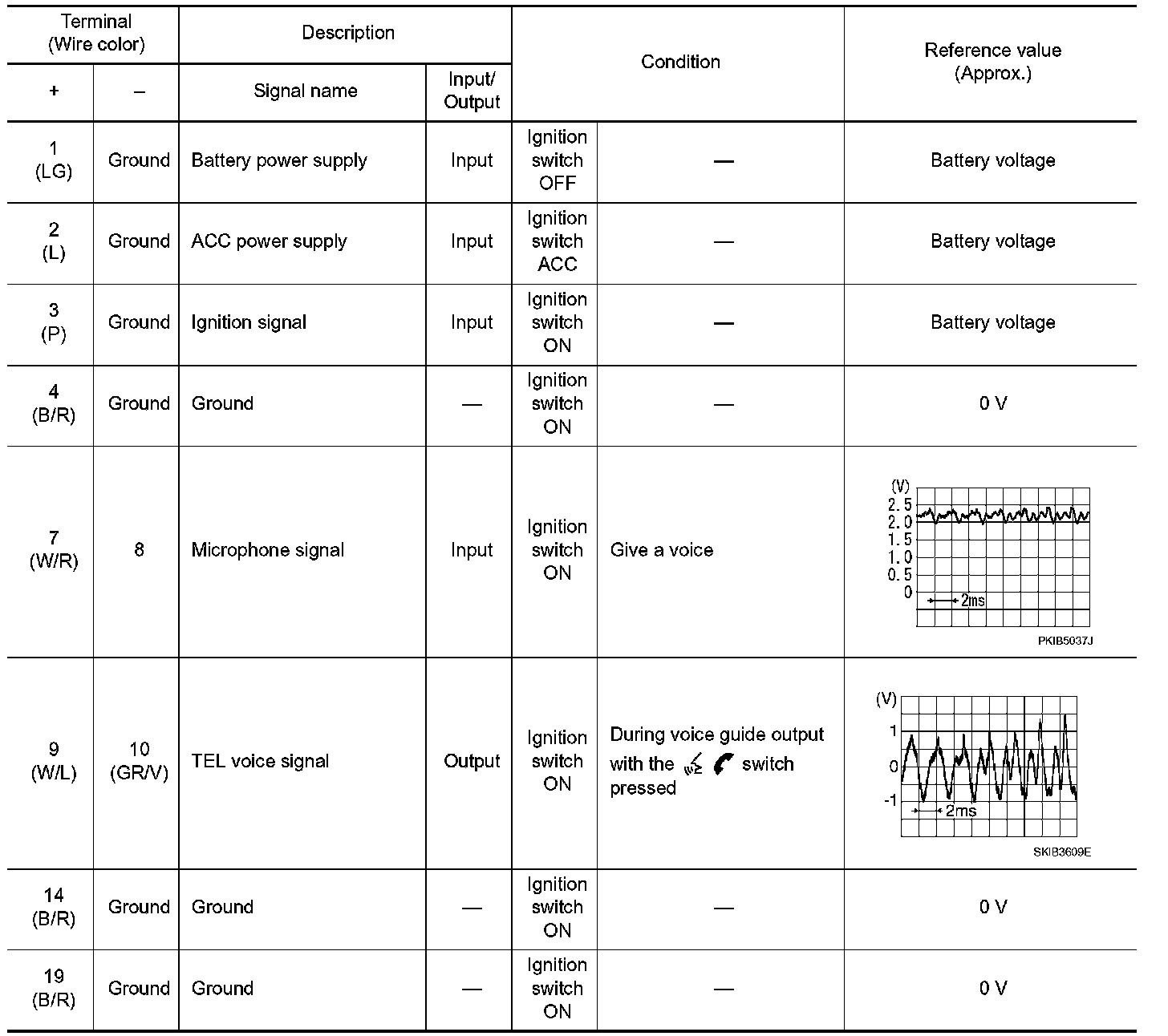

PHYSICAL VALUES
