Panic Alarm Function Does Not Operate

PANIC ALARM FUNCTION DOES NOT OPERATE





Description

NOTE:
- Before performing the following procedure, check "Work Flow". Initial Inspection and Diagnostic Overview.
- Check that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.

CONDITIONS OF VEHICLE (OPERATION CONDITIONS)
- Power supply position: OFF or LOCK
- PANIC ALARM SET: MODE 1
Check the setting of "PANIC ALARM SET" in "Work Support" mode of "INTELLIGENT KEY" of "BCM" using "CONSULT-III".




Diagnosis Procedure
1.CHECK REMOTE KEYLESS ENTRY FUNCTION
Check remote keyless entry function. System Description.
Does door lock or unlock when operating Intelligent key button?
YES - GO TO 2.
NO - Go to Door Does Not Lock/Unlock With Intelligent Key.
2.CHECK VEHICLE SECURITY ALARM OPERATION
Check vehicle security alarm operation. System Description.
Is alarm (headlamps and horns) activated?
YES - GO TO 3.
NO - Go to Vehicle Security Alarm Does Not Activate.
3.CHECK "PANIC ALARM" BUTTON OPERATION
1. Turn ignition switch ON.

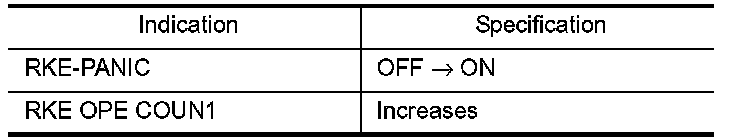

2. Select "RKE-PANIC" and "RKE OPE COUN1" in "Data Monitor" mode of "INTELLIGENT KEY" of "BCM" using CONSULT-III.
3. Check "RKE-PANIC" and "RKE OPE COUN1" indications when pressing (for approximately 0.5 seconds)
"PANIC ALARM" button of Intelligent Key.





Is the inspection result normal?
YES - GO TO 4.
NO - Replace Intelligent Key.
4.CONFIRM THE OPERATION
Confirm the operation again.
Is the result normal?
YES - Check intermittent incident. Intermittent Incident.
NO - GO TO 1.
