System Description

SYSTEM (INTELLIGENT KEY SYSTEM)


REMOTE KEYLESS ENTRY FUNCTION : System Description

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the same manner as the remote controller by operating the door lock/unlock button.

OPERATION
Remote keyless entry system controls operation of the following items.
- Door lock/unlock function
- Selective unlock function
- Trunk lid open function
- Hazard and horn reminder function
- Auto door lock function

OPERATION AREA
To check that the Intelligent Key works normally, use within 1 m (3 ft) range of each doors, however the operable range may differ according to surroundings.

DOOR LOCK/UNLOCK FUNCTION
- When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal transmitted from
Intelligent Key to BCM via remote keyless entry receiver.
- When BCM receives the door lock/unlock signal, it operates all door lock actuators and fuel lid lock actuator the hazard lamp (lock: 2 times, unlock: 1 time) and horn chirp signal to IPDM E/R at the same time as a reminder.
- IPDM E/R honks horn (lock: 2 times) as a reminder

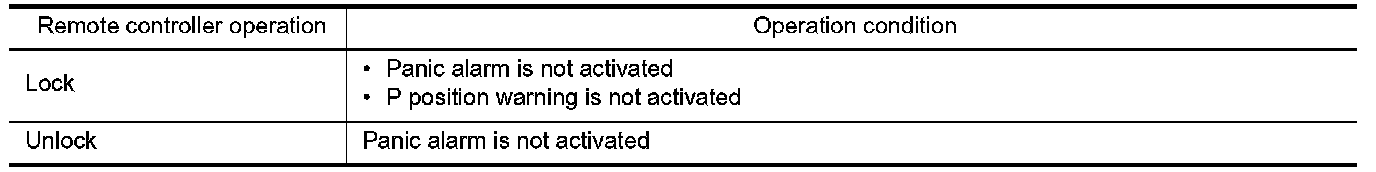

OPERATION CONDITION
If the following condition are satisfied, remote keyless entry operation is performed when the Intelligent Key is operated.





SELECTIVE UNLOCK FUNCTION
- When an LOCK signal is transmitted from Intelligent Key, all doors and fuel filler lid are locked.
- When an UNLOCK signal is transmitted from Intelligent Key once, driver side door and fuel filler lid are unlocked.
- Then, if an UNLOCK signal is transmitted from Intelligent Key again within 60 seconds, all other doors are unlocked.

How To Change Selective Unlock Operation Mode
Selective unlock operation mode can be changed using CONSULT-III. Consult-III Function.

TRUNK OPEN FUNCTION
- When trunk button of the Intelligent Key is pressed, the trunk open signal is transmitted from the Intelligent
Key to the BCM via remote keyless entry receiver.
- When BCM receives the trunk open request signal, it operates the trunk lid opener actuator and opens the trunk.

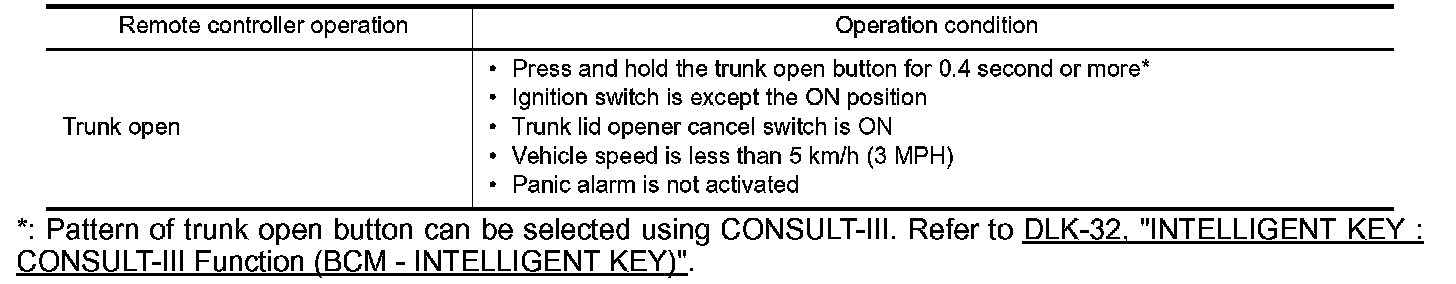

OPERATION CONDITION





*: Pattern of trunk open button can be selected using CONSULT-III. Intelligent Key.

HAZARD AND HORN REMINDER FUNCTION
When doors are locked or unlocked by Intelligent Key, BCM blinks hazard warning lamps as a reminder and transmits horn chirp signal to IPDM E/R. IPDM E/R sounds horn as a reminder.
The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).

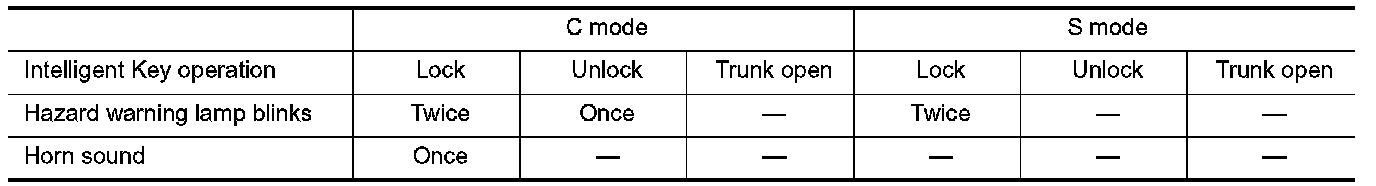

Operating Function of Hazard and Horn Reminder





Hazard and horn reminder does not operate if ignition switch ON position.
How to change hazard and horn reminder mode
With CONSULT-III
Intelligent Key.
Without CONSULT-III

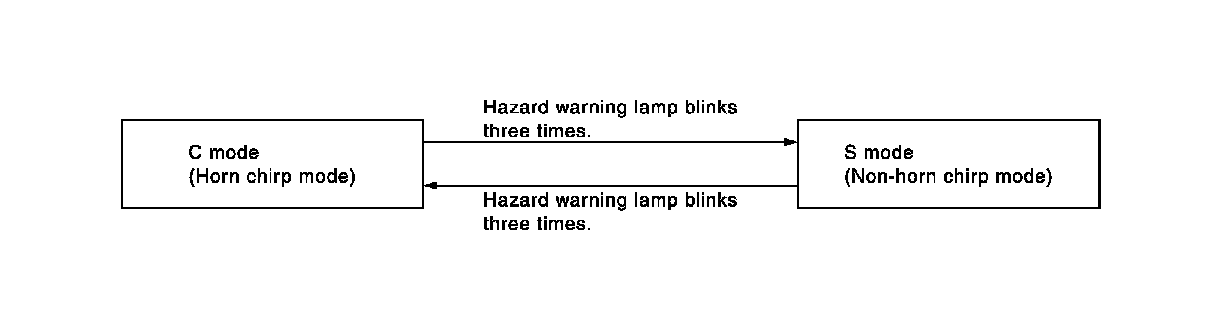

When LOCK and UNLOCK signals are sent from the Intelligent Key for more than 2 seconds at the same time, the hazard and horn reminder mode is changed and hazard warning lamp blinks and horn sounds as per the following items:






AUTO DOOR LOCK FUNCTION
After door is unlocked by Intelligent Key button operation and if 60 seconds or more passes without performing the following operation, all doors are locked. However, operation check function does not activate.






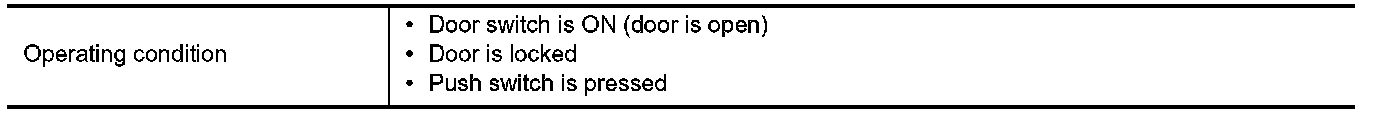

How To Change Auto Door Lock Operation Mode
Auto door lock operation mode can be changed using CONSULT-III. Intelligent Key.

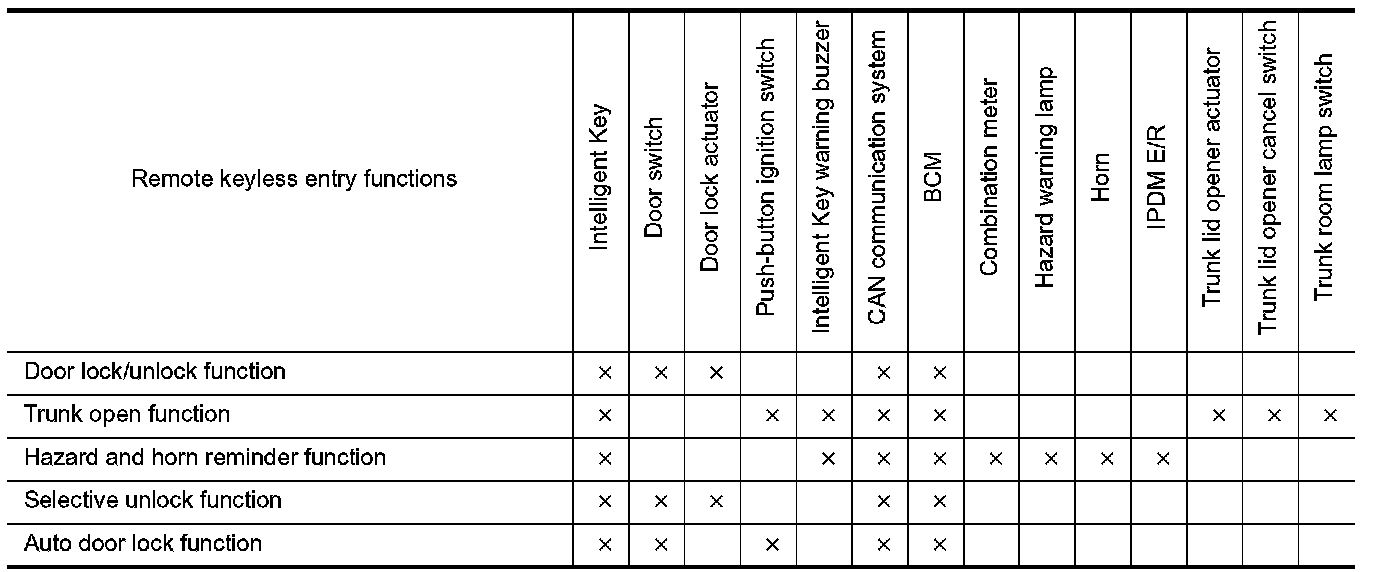

LIST OF OPERATION RELATED PARTS
Parts marked with x are the parts related to operation.
