U1601

U1601, U1609 FRONT DOOR WOOFER





DTC Logic

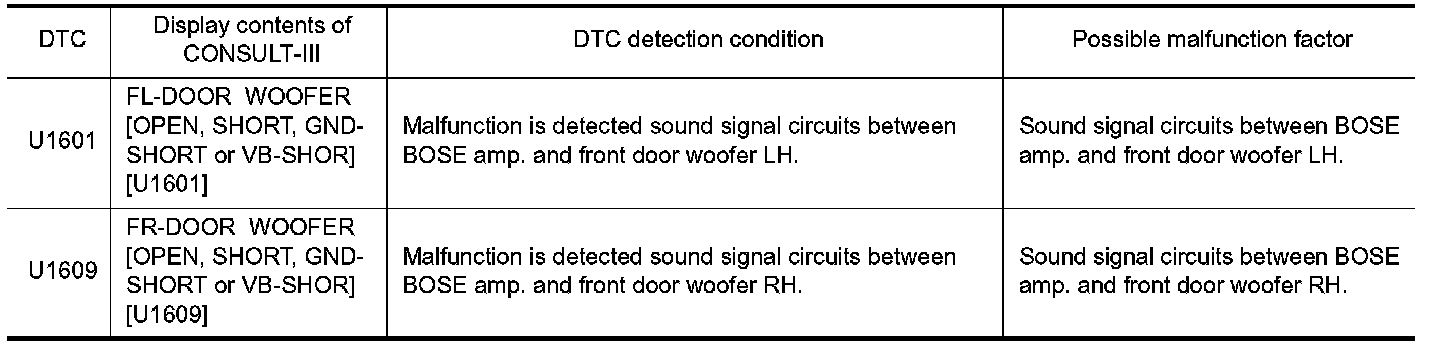

DTC DETECTION LOGIC









Diagnosis Procedure
1.PERFORM THE SELF-DIAGNOSIS
1. Delete the "self-diagnosis" results of "MULTI AV". Turn ignition switch OFF.
2. Turn ignition switch ON. perform the self-diagnosis again.
3. Check that the DTC is detected again.
Is any DTC detected?
YES�1 - U1601 Check harnesses between BOSE amp. and front door woofer LH.
YES�2 - U1609 Check harnesses between BOSE amp. and front door woofer RH.
NO - Intermittent Incident.
