Cruise Control

U1010 CONTROL UNIT (CAN)





ADAS CONTROL UNIT : Description
CAN controller controls the communication of CAN communication signal and ITS communication signal, and the error detection.




ADAS CONTROL UNIT : DTC Logic

DTC DETECTION LOGIC









ADAS CONTROL UNIT : Diagnosis Procedure
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn the MAIN switch of ICC system ON.
2. Perform "All DTC Reading" with CONSULT-III.
3. Check if the "U1010" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "U1010" detected as the current malfunction?
YES - Replace the ADAS control unit. Service and Repair.
NO - INSPECTION END




ICC SENSOR : Description
CAN controller controls the communication of ITS communication signal and the error detection.




ICC SENSOR : DTC Logic

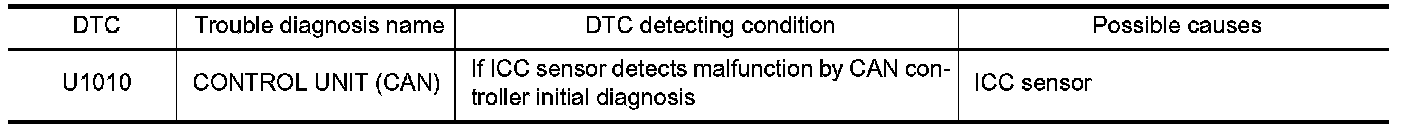

DTC DETECTION LOGIC









ICC SENSOR : Diagnosis Procedure
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn the MAIN switch of ICC system ON.
2. Perform "All DTC Reading" with CONSULT-III.
3. Check if the "U1010" is detected as the current malfunction in "Self Diagnostic Result" of "LASER".
Is "U1010" detected as the current malfunction?
YES - Replace the ICC sensor. Exploded View.
NO - INSPECTION END
