LDW & LDP

U1010 CONTROL UNIT (CAN)





ADAS CONTROL UNIT : Description
CAN controller controls the communication of CAN communication signal and ITS communication signal, and the error detection.




ADAS CONTROL UNIT : DTC Logic

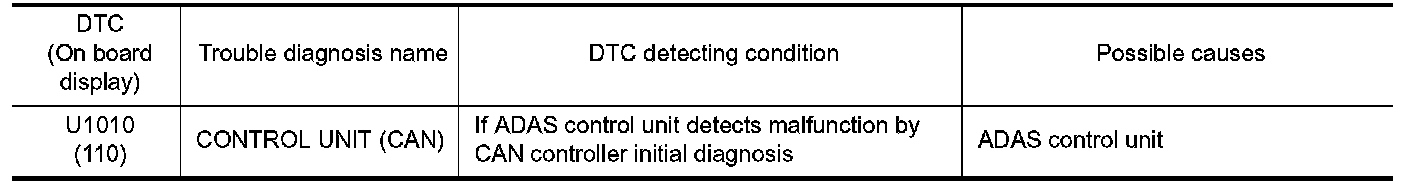

DTC DETECTION LOGIC









ADAS CONTROL UNIT : Diagnosis Procedure
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn the LDP system ON.
2. Perform "All DTC Reading" with CONSULT-III.
3. Check if the "U1010" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "U1010" detected as the current malfunction?
YES - Replace the ADAS control unit. Service and Repair.
NO - INSPECTION END




LANE CAMERA UNIT : Description
CAN controller controls the communication of ITS communication signal and the error detection.




LANE CAMERA UNIT : DTC Logic

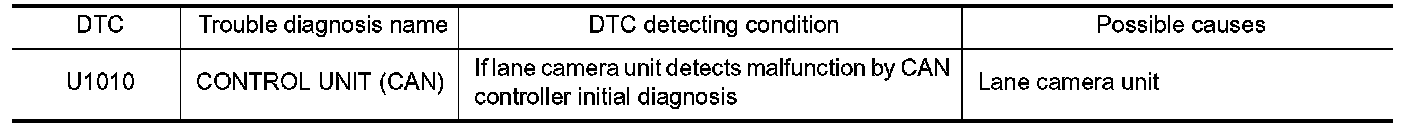

DTC DETECTION LOGIC









LANE CAMERA UNIT : Diagnosis Procedure
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn the LDP system ON.
2. Perform "All DTC Reading" with CONSULT-III.
3. Check if the "U1010" is detected as the current malfunction in "Self Diagnostic Result" of "LANE CAM-
ERA".
Is "U1010" detected as the current malfunction?
YES - Replace the lane camera unit. LDW & LDP.
NO - INSPECTION END
