ADAS Control Unit

U1010 CONTROL UNIT (CAN)





Description
CAN controller controls the communication of CAN communication signal and ITS communication signal, and the error detection.




DTC Logic

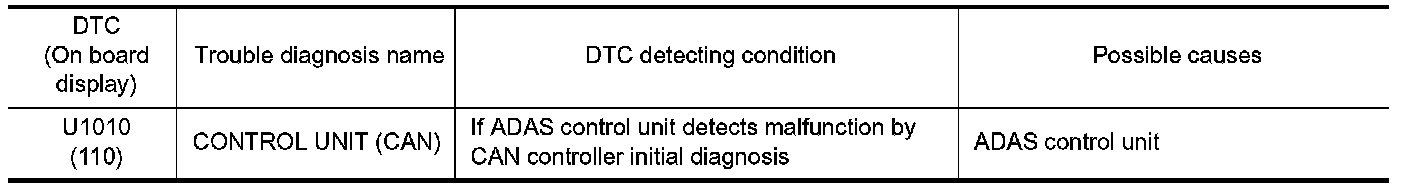

DTC DETECTION LOGIC









Diagnosis Procedure
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn the MAIN switch of ICC system ON.
2. Perform "All DTC Reading" with CONSULT-III.
3. Check if the "U1010" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "U1010" detected as the current malfunction?
YES - Replace the ADAS control unit. Service and Repair.
NO - INSPECTION END
