STRG ANGL CAL

U0428 STRG ANGL CAL





Description
Inputs the steering calibration incomplete signal from steering angle sensor via CAN communication.




DTC Logic

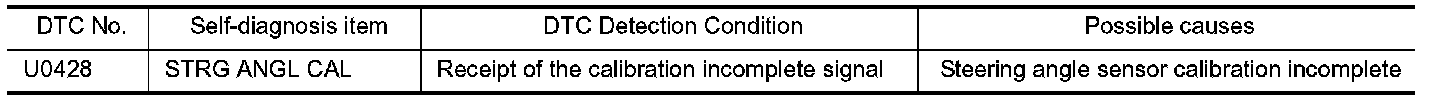

DTC DETECTION LOGIC

NOTE:
If DTC U0428 is displayed with DTC U0126, first perform the trouble diagnosis for DTC U0126. ST ANG SEN SIG.






DTC CONFIRMATION PROCEDURE
1.SELF-DIAGNOSIS WITH PRE-CRASH SEAT BELT CONTROL UNIT
1. Turn ignition switch ON.
2. Check "Self-diagnostic result" with CONSULT-III.
Is DTC detected?
YES - SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK DTC WITH "ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)"
Check "Self-diagnostic result" for "ABS" with CONSULT-III. Scan Tool Testing and Procedures.
Is DTC detected?
YES - Repair or replace malfunctioning parts.
NO - GO TO 2.
2.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
